• 50Ω
  • Coaxial Terminator
  • Products in stock
  • RoHS2

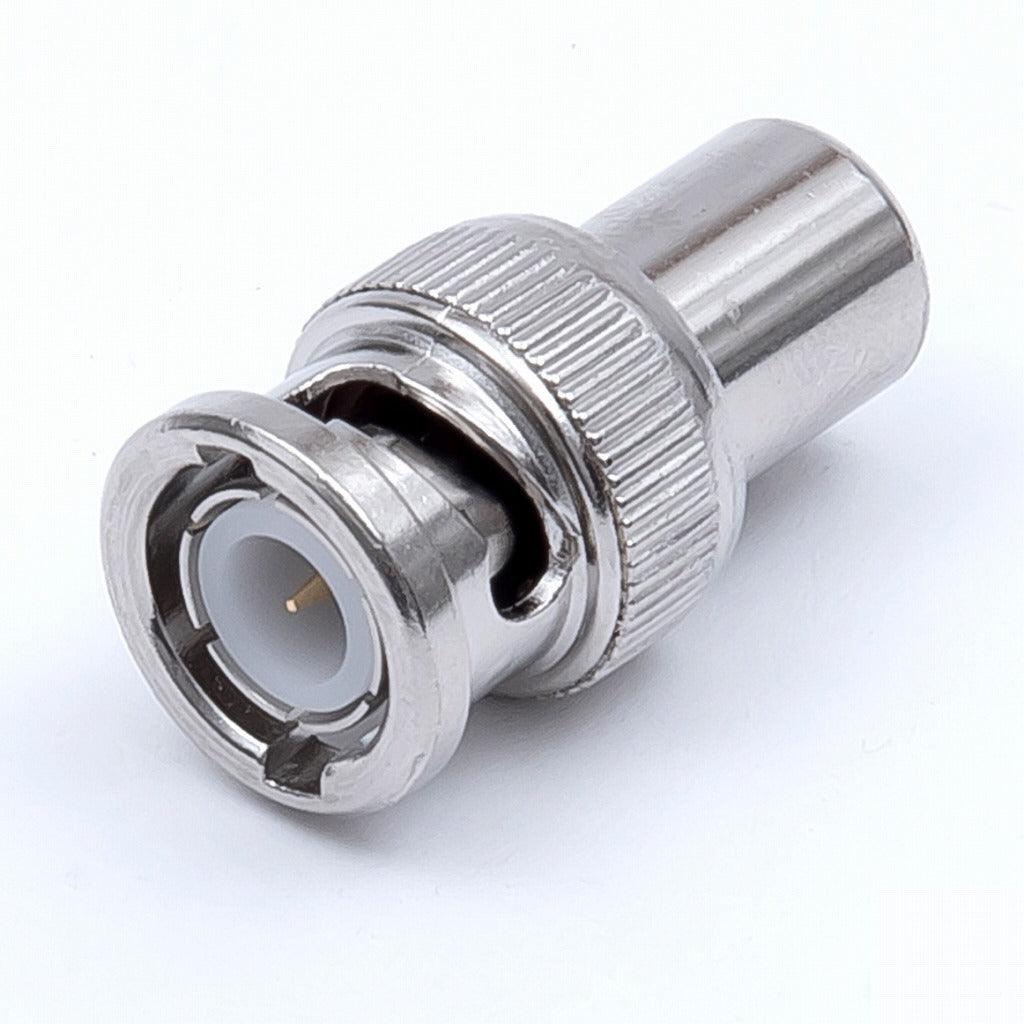

BNC50-PTD

$8.92
Tax included
You must register and log in to download

Description

The BNC50-PTD is an BNC Terminator. This connector is suitable for various high-frequency applications.It features a impedance 50Ω, operates up to 2 GHz, and has a rated voltage of AC 500V, and an excellent V.S.W.R 1.2(Max.) at DC~2GHz.The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating.Rated Power is 0.5W.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications

  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    2 GHz
  • V.S.W.R
    1.2(Max.) at DC~2GHz
  • Rated Power (W)
    0.5W
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Brass/Gold Plating
  • Body
    Brass/Nickel Plating

The BNC50-PTD is an BNC Terminator. This connector is suitable for various high-frequency applications.It features a impedance 50Ω, operates up to 2 GHz, and has a rated voltage of AC 500V, and an excellent V.S.W.R 1.2(Max.) at DC~2GHz.The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating.Rated Power is 0.5W.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

BNC Coaxial Terminator
TYCLON

BNC50-PTD

$8.92

BNC Coaxial Terminator

Cable type

N/A

Connector Gender

Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 500V

Operating Frequency Range

2 GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.2(Max.) at DC~2GHz

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

0.5W

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
