N 75 Ohm RF Connectors Guide
What are N 75 Ohm RF Connectors?
N 75 Ohm RF connectors are a variation of standard N-type connectors designed for a 75 Ohm impedance, primarily used in video transmission and broadcast applications.
While they share the same threaded coupling structure as 50 Ohm N connectors, the internal dimensions—especially the center contact—are optimized for 75 Ohm systems. Due to this structural difference, N 75 Ohm connectors are not compatible with 50 Ohm N connectors.
Their robust design, combined with stable impedance characteristics, makes them suitable for long-distance signal transmission where minimal reflection and signal integrity are critical. In some cases, they may also be referred to as “NC type” connectors depending on the manufacturer.
Trivia : The Origin of N
The connector is generally called Type-Navy, but it was invented in the 1940s by Paul Neal of Bell Laboratories in the US, and the name was taken from Neal's initials. It is sometimes called the Nancy connector to ensure the M connector is clear.

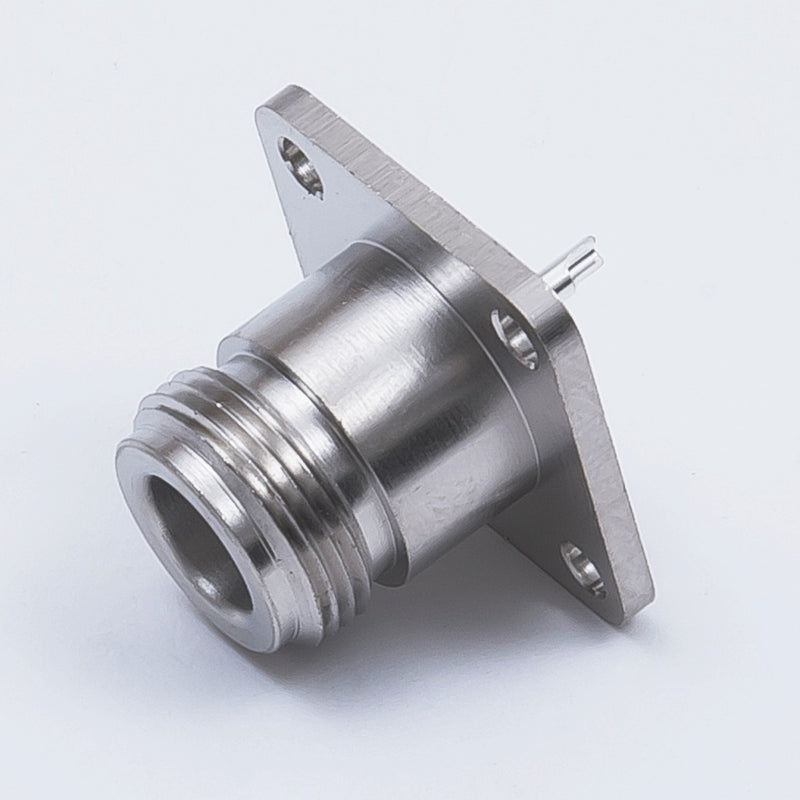

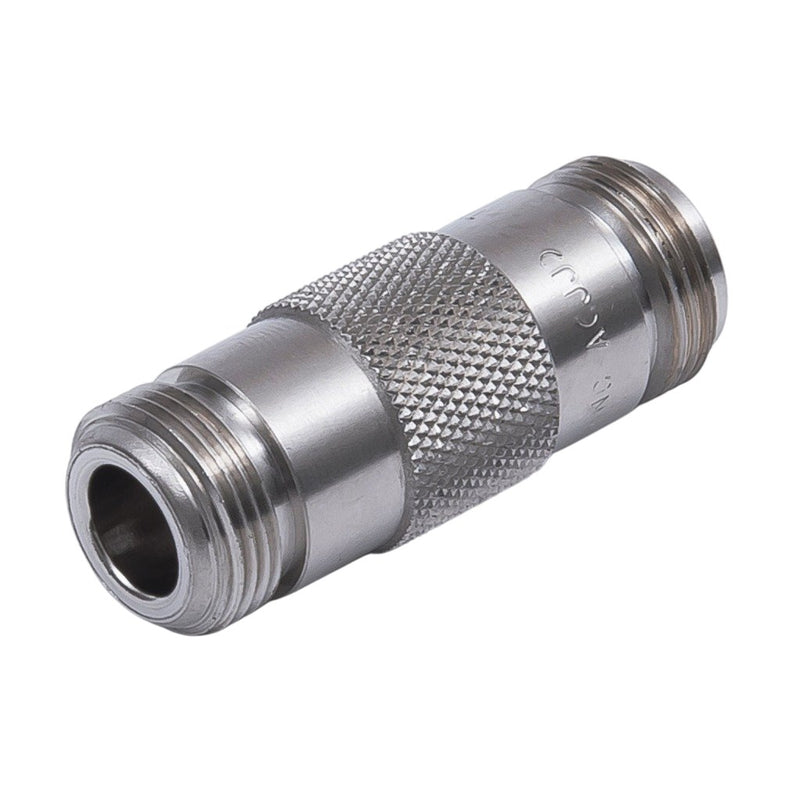

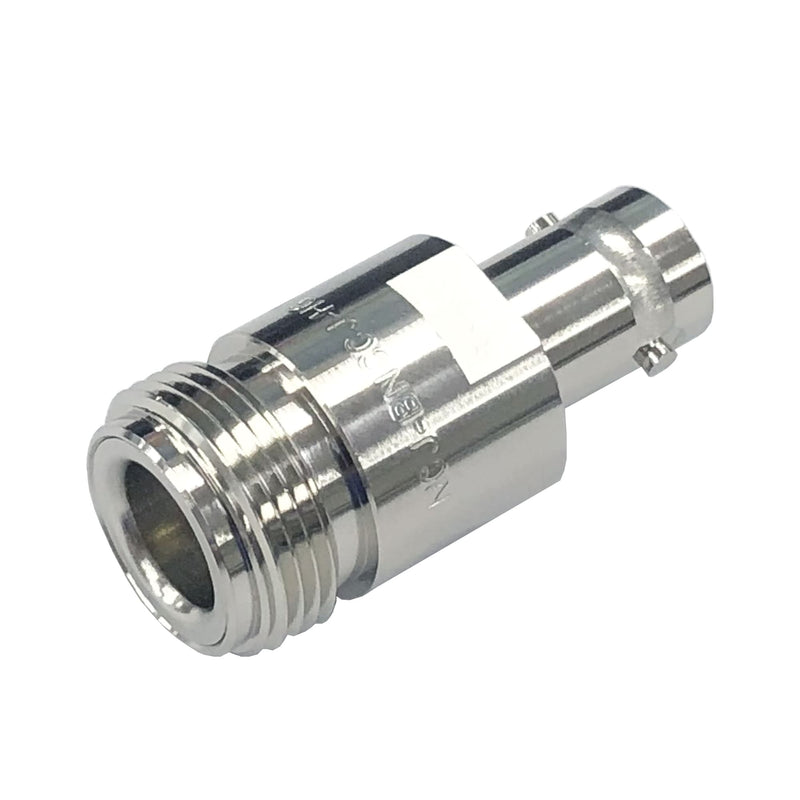

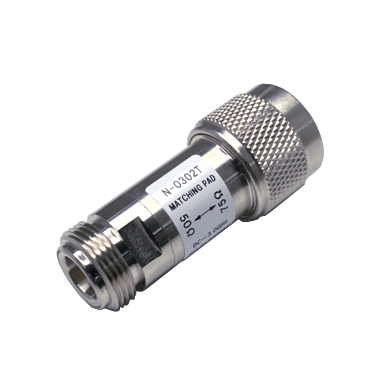

Browse N 75 Ohm RF Connectors by Type
Find N 75 Ohm RF connectors by type and quickly navigate to the right product category.
Can't find the right N 75 Ohm RF connector? We're here to help.
Trivia : About Cables
- MIL Standard
Compliant with US military standards for cables. Begins with the initials "RG" and is also called Mil-Spec.
N 75 Ohm Type RF Connector Features
Large Size
N 75 Ohm connectors are relatively large among coaxial connectors. The large connector size enables connection to thick coaxial cables. Because of their excellent weather resistance, they are often used outdoors at mobile base stations.
Trivia : Coaxial Cable Thickness
The thicker the coaxial cable, the less flexible it is, but the better the characteristics with less noise and loss. Usually, the longer the cable, the worse the characteristics, so the tendency is to select thicker cables.
50 Ohm vs 75 Ohm RF Impedance Differences
N RF connectors are available in both 50 Ohm and 75 Ohm impedance types, each suited for different applications.
50 Ohm connectors are commonly used in RF communication systems, wireless networks, and test equipment, where power handling and signal integrity are critical. 75 Ohm connectors are typically used in video transmission and broadcast applications.
Selecting the correct impedance is essential to minimize signal reflection and ensure optimal system performance. Note that 50 Ohm and 75 Ohm connectors are not interchangeable.
Optimized for Video Signal Transmission
N 75 Ohm connectors are specifically designed for video and broadcast signals, where impedance matching is critical to prevent signal reflection and degradation.
Compared to 50 Ohm connectors, the 75 Ohm design provides better performance for high-quality video transmission, especially over longer cable runs.
N 75 Ohm Type RF Connectors Applications
N 75 Ohm RF connectors are widely used in video transmission and broadcast systems where maintaining signal integrity over long distances is essential.
Typical applications include:
- Broadcasting equipment and studio systems
- Cable television (CATV) infrastructure
- Video distribution and monitoring systems
- Satellite and RF video signal transmission
- Measurement systems using 75 Ohm impedance
These connectors are particularly suitable for environments where low signal reflection and stable impedance are required.
How to Choose N 75 Ohm RF Connectors
When selecting an N 75 Ohm RF connector, consider the following key factors:
1. Confirm Impedance (75 Ohm Only)
Ensure your system is designed for 75 Ohm impedance. N 75 Ohm connectors must not be used with 50 Ohm systems due to impedance mismatch and physical incompatibility.
2. Check Compatibility with N-Type Interfaces
Although N 75 Ohm connectors use the same threaded interface as standard N connectors, they cannot be mated with 50 Ohm versions. Always verify compatibility before installation.
3. Select Appropriate Connector Type
Choose between plug, jack, or receptacle types depending on your equipment and installation requirements.
4. Match with Suitable Coaxial Cable
Select connectors compatible with 75 Ohm coaxial cables such as RG-6 or RG-11 to ensure proper performance.
5. Consider Installation Environment
For outdoor or long-distance installations, choose connectors with durable materials and secure threaded coupling for stable performance.
N 75 Ohm vs BNC 75 Ohm RF Connectors
N 75 and BNC 75 RF connectors are both designed for 75-ohm impedance and are commonly used in video and broadcast applications, but they differ in durability and typical use environments.
BNC 75 Ohm connectors use a bayonet coupling, allowing quick and easy connections, making them ideal for indoor and general-purpose video applications.
N 75 Ohm connectors use a threaded coupling, providing a more secure and weather-resistant connection, suitable for outdoor and high-reliability systems.
In terms of performance, both support similar frequency ranges, but N 75 connectors offer better stability in demanding environments.
In summary, BNC 75 connectors are ideal for quick and convenient indoor use, while N 75 connectors are preferred for outdoor, long-term, and high-reliability applications.
N 75 Ohm Type RF Connector Standards & Dimensions
Equivalent Standards (Compatible Standards)
JIS C 5411, IEC 60169-16
Impedance
75 Ohm
Coupling Method (Connection)
Threaded Coupling 5/8-24UNEF-2A, 2B
Voltage Rating
AC 500V
Maximum Voltage
AC 1,000 V one minute
Insulation Resistance
1,000 mΩ min. at 500 V DC
Contact Resistance
3 mΩ max. at DC 1A
Note: The figures provided are typical values. For further details, please contact us.
N 75 Ohm Type RF Connector FAQ
QCan the N 75 Ohm and 50 Ohm types be coupled?
QCan the N 75 Ohm and 50 Ohm types be coupled?
No, they are not compatible due to differences in impedance and internal dimensions. Connecting them may result in signal loss or damage.
> N 50 Ohm
QWhat is the main use of N 75 Ohm connectors?
QWhat is the main use of N 75 Ohm connectors?
They are mainly used in video transmission systems such as broadcasting and cable television.
QWhy use 75 Ohm instead of 50 Ohm?
QWhy use 75 Ohm instead of 50 Ohm?
75 Ohm systems are better suited for video signals because they provide lower signal attenuation and improved signal quality over long distances.
QAre N 75 Ohm connectors weather-resistant?
QAre N 75 Ohm connectors weather-resistant?
Yes, many N-type connectors are designed for outdoor use and offer good resistance to environmental conditions.
QWhat cables are typically used with N 75 Ohm connectors?
QWhat cables are typically used with N 75 Ohm connectors?
Common cables include RG-6 and RG-11, which are widely used in video and broadcast systems.
QAre N 75 Ohm connectors interchangeable with BNC connectors?
QAre N 75 Ohm connectors interchangeable with BNC connectors?
No, they use different coupling mechanisms and are designed for different applications.
