SMPM RF Connectors Guide: Types, Structure, and Uses
What are SMPM RF Connectors?
SMPM RF connectors are ultra-miniature 50 Ohm coaxial connectors designed for high-frequency and high-density applications. Approximately 35% smaller than SMP connectors, SMPM connectors provide excellent electrical performance while minimizing space requirements. Their push-on mating design enables quick installation and reliable connections in compact RF systems.
Supporting frequencies up to 65 GHz, SMPM connectors are widely used in aerospace, defense, satellite communications, test equipment, and next-generation wireless systems.

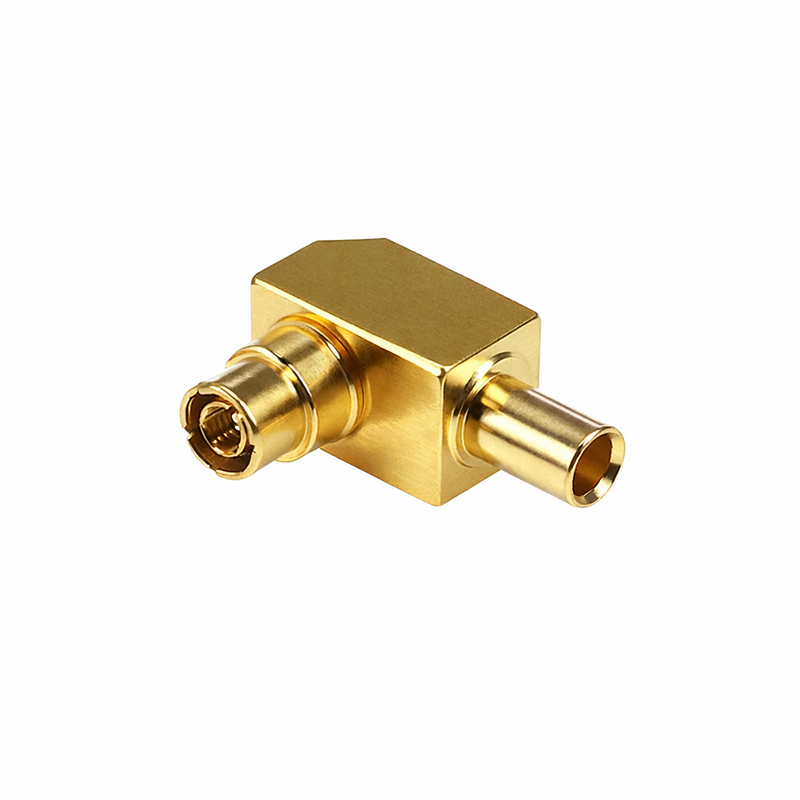

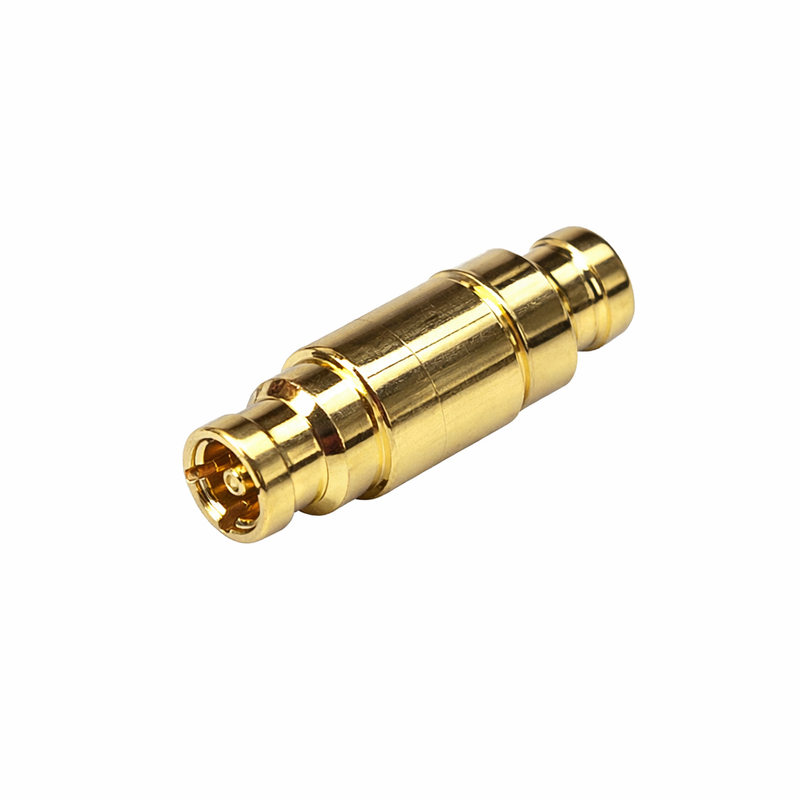

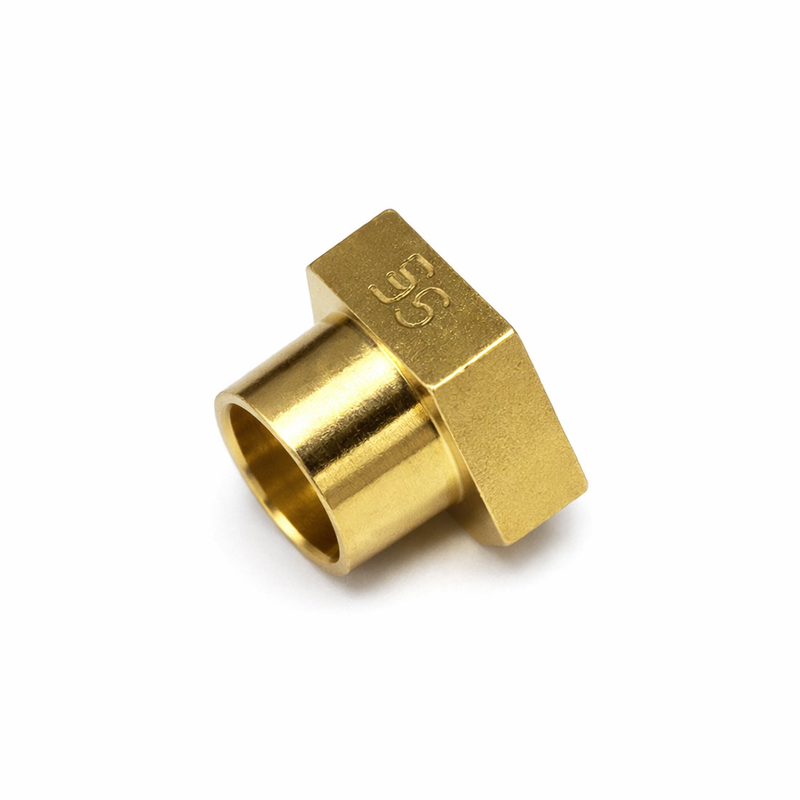

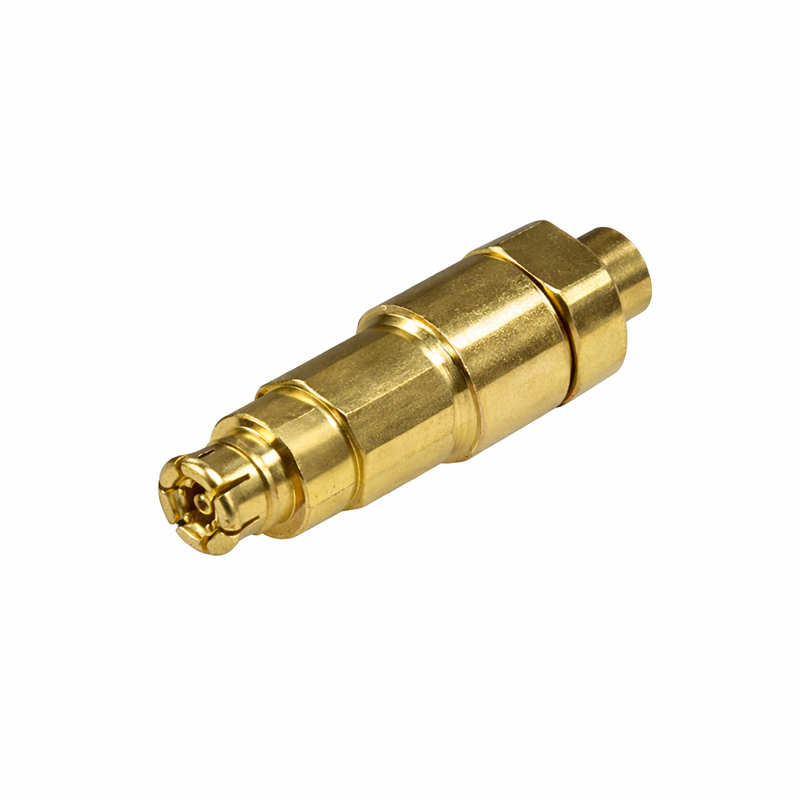

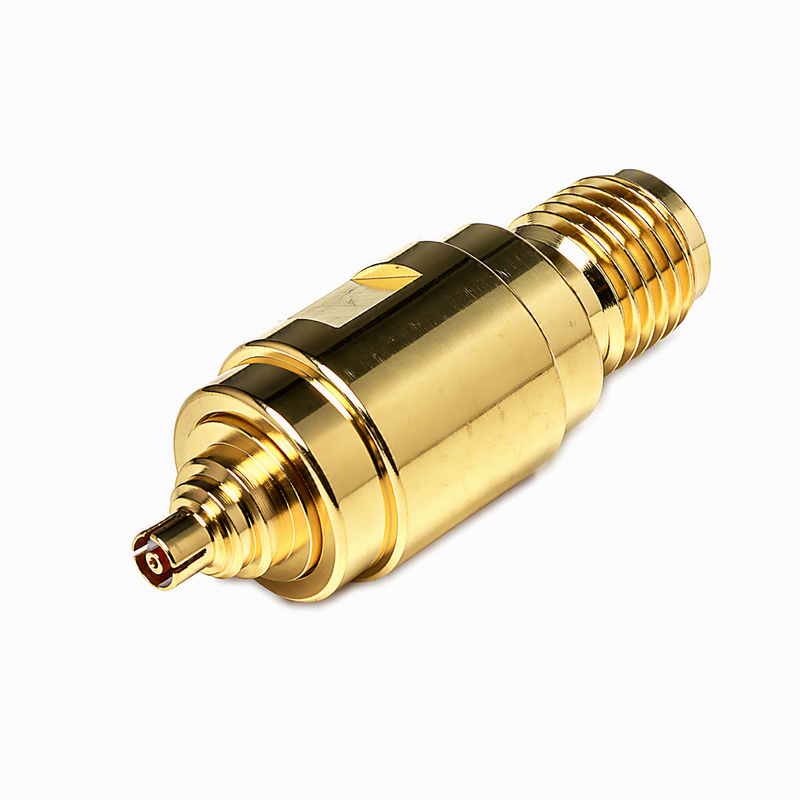

Browse SMPM RF Connectors by Product Type
Find SMPM RF connectors by type and quickly navigate to the right product category.
Can't find the right SMP RF connector? We're here to help.
SMPM RF Connector Features
High Frequency Performance
SMPM connectors support frequencies up to 65 GHz while maintaining excellent signal integrity and low VSWR characteristics.
Ultra-Compact Design
With a size approximately one-third smaller than SMP connectors, SMPM is ideal for high-density PCB layouts and compact electronic equipment.
Push-On Mating
The push-on interface enables quick installation and removal without threaded coupling, reducing assembly time while maintaining reliable electrical performance.
Blind-Mate Capability
When used with bullet adapters, SMPM connectors can compensate for axial and radial misalignment, making them suitable for blind-mate board-to-board applications.
Lightweight Construction
The miniature structure contributes to weight reduction, making SMPM connectors particularly suitable for aerospace and portable communication systems.
SMPM RF Connector Applications
SMPM RF connectors are widely used in applications that require high-frequency performance, compact size, and high-density integration, including:
Aerospace and defense systems, such as radar equipment, avionics, electronic warfare systems, and military communications
Satellite communications, including satellite payloads, ground stations, and space-qualified RF modules
Test and measurement equipment, such as microwave testing systems, signal analyzers, and laboratory instruments
5G and millimeter-wave communication infrastructure operating in high-frequency bands
High-density RF modules and compact electronic assemblies where space optimization and signal integrity are critical
Advanced wireless communication systems requiring reliable high-frequency signal transmission
Board-to-board and module-to-module interconnections in space-constrained RF designs
SMPM vs SMP RF Connectors
SMP and SMPM are both 50 Ohm RF coaxial connectors designed for high-frequency signal transmission. While SMP connectors typically support frequencies up to 40 GHz, SMPM connectors offer performance up to 65 GHz and feature a significantly smaller footprint.
This ultra-miniature design allows SMPM connectors to be used in high-density RF modules, aerospace systems, satellite communications, and advanced wireless applications where space is limited.
Both connector types support blind-mate connections and provide reliable RF performance. SMP connectors are commonly used in RF modules and test equipment, whereas SMPM connectors are often selected for next-generation communication systems and compact electronic assemblies requiring higher frequencies and greater integration density.
How to Choose SMPM RF Connectors
Selecting the right SMPM connector depends on your operating frequency, installation requirements, and mechanical design constraints.
Because SMPM connectors are designed for ultra-high-density and high-frequency applications, several factors should be considered when choosing the appropriate connector.
1. Frequency Range
Verify that the connector's frequency performance meets your system requirements. SMPM connectors are commonly used in applications operating up to 65 GHz.
2. Cable Type Compatibility
Choose a connector that is compatible with your selected coaxial cable. Different cable diameters and constructions require specific SMPM connector designs.
3. Mounting Configuration
SMPM connectors are available in cable mount, PCB mount, and board-to-board configurations. Select the type that best suits your assembly requirements.
4. Mating Style
Depending on the application, choose between full-detent, limited-detent, or smooth-bore interfaces. The appropriate mating style can affect retention force and ease of connection.
4. Blind-Mate Requirements
For applications requiring blind-mate connections, consider using bullet adapters to accommodate axial and radial misalignment.
4. Environmental Conditions
Evaluate operating conditions such as vibration, shock, temperature, and space limitations to ensure long-term reliability.
SMPM RF Connector: Standards and Technical Specifications
Characteristic Impedance
50 Ohm.
Frequency Range
DC to 65 GHz (depending on connector design and cable assembly).
Mating Mechanism
Push-on / Snap-on.
Interface Types
Full Detent, Limited Detent, Smooth Bore.
Connector Size
Approximately 30% smaller than standard SMP connectors.
Note: The figures provided are typical values. For further details, please contact us.
SMPM Type RF Connector FAQ
QWhat does SMPM stand for?
QWhat does SMPM stand for?
SMPM stands for SubMiniature Push-On Micro, an ultra-miniature RF connector designed for compact high-frequency applications.
QHow do SMPM connectors attach?
QHow do SMPM connectors attach?
SMPM connectors use a push-on mating mechanism, allowing quick connection and disconnection without threaded coupling.
QWhat frequency range do SMPM connectors support?
QWhat frequency range do SMPM connectors support?
Depending on the design and cable assembly, SMPM connectors can support frequencies up to 65 GHz.
QWhat is the difference between SMP and SMPM connectors?
QWhat is the difference between SMP and SMPM connectors?
SMPM connectors are smaller than SMP connectors and typically support higher operating frequencies, making them suitable for more compact and advanced RF systems.
QAre SMPM connectors suitable for blind-mate applications?
QAre SMPM connectors suitable for blind-mate applications?
Yes. When combined with bullet adapters, SMPM connectors can accommodate alignment tolerances and support blind-mate connections.
QCan SMPM connectors be custom manufactured?
QCan SMPM connectors be custom manufactured?
Yes. Custom cable assemblies, connector configurations, and RF solutions can be designed to meet specific application requirements.
