Micro BNC Connectors Guide
What Are Micro BNC Connectors?
Micro BNC connectors are a smaller version of BNC connectors. Like BNC connectors, Micro BNC connectors use bayonet locking for easy coupling, with a 75 Ω mating specification (50 Ω in some cases).
While keeping the standard BNC mating method, their compact size allows high-density mounting four times that of BNC connectors, with a minimum practical array spacing of 8 millimeters.

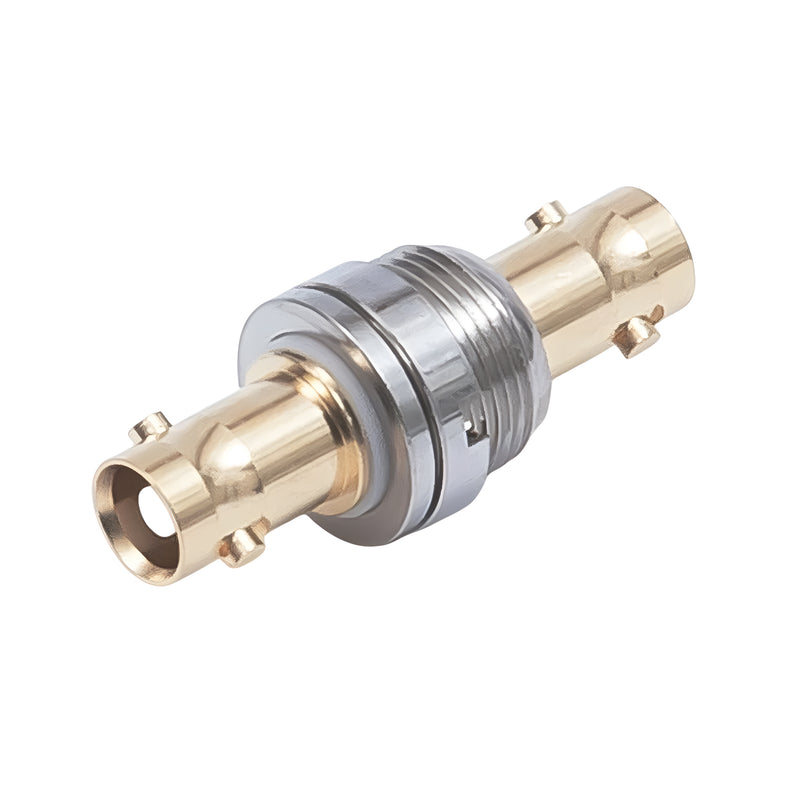

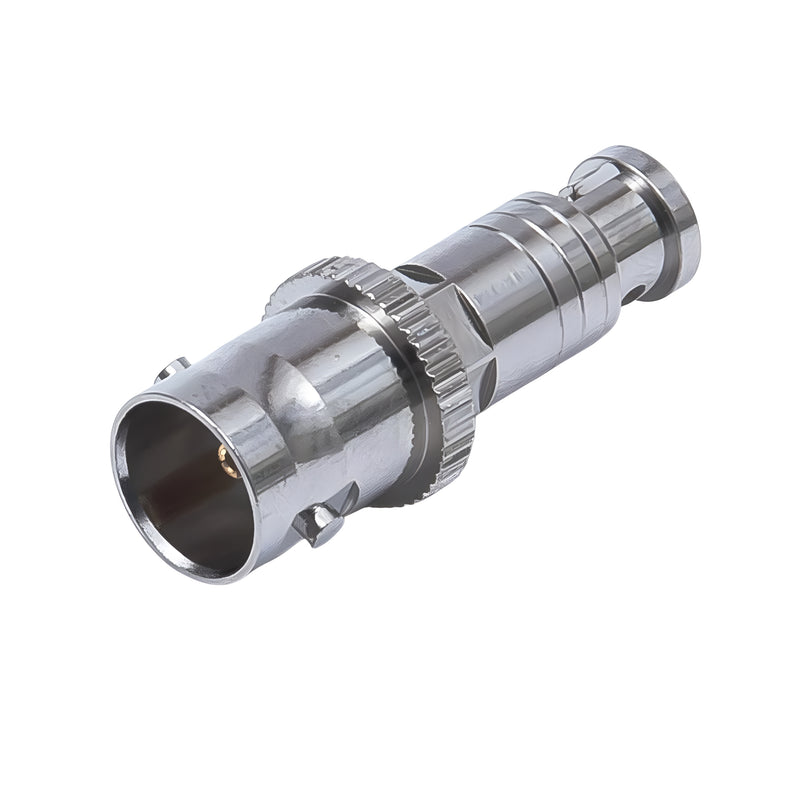

Micro BNC RF Connectors by Type
Micro BNC RF Connectors Features
Compact and High-Performing
The Micro BNC connector’s compact design allows high-density mounting, four times that of BNC connectors, with a minimum pitch of 8 mm. It supports 12G-SDI for high-definition and large-capacity image transmission. 4K signals can travel long distances over a single cable while maintaining stable performance even at high frequencies.
Impedance
Micro BNC connectors have a 75 Ω impedance, mainly for transmitting video and audio signals to TV receivers and other equipment. Some models are compatible with 50 Ω cables.
Coupling Method
The bayonet lock method allows easy connection without threading. Align the plug with the jack guide, rotate the ring to lock, and the internal spring holds it firmly. To remove, turn in the opposite direction; the connector cannot be pulled out by cable tension alone.
Trivia: The Origin of BNC
BNC likely comes from Bayonet Neill Concelman, the connector manufacturer. Other theories suggest it stands for Bayonet Connector, Baby-series N Connector, or British National Connector.
Micro BNC RF Connectors Applications
Broadcasting and information equipment.
Micro BNC RF Connectors Standards and Technical Specifications
Nominal Impedance
Impedance rating is 75 Ω or 50 Ω, indicating compatibility with most standard RF equipment.
Coupling Method (Connector Interface)
Connectors securely join using bayonet coupling for stable signal transmission.
Working Voltage (Rated Voltage)
Rated for standard operating voltage of up to AC 170 V.
Maximum Withstanding Voltage
Safely withstands up to AC 500 V for one minute without electrical breakdown.
Insulation Resistance
Minimum insulation resistance of 10,000 mΩ when tested with 500 V, ensuring electrical safety.
Contact Resistance
Maximum contact resistance of center 10 mΩ and outer 2.5 mΩ when conducting DC current of 1 ampere, ensuring efficient connection.
Note: The figures shown are typical values. For more information, please contact us.
Micro BNC RF Connectors FAQ
QCan they be mated with mini-BNC?
QCan they be mated with mini-BNC?
No, they cannot. In size order, standard BNC is larger than mini BNC, which is larger than Micro BNC. Connectors from other manufacturers, such as Micro BNC and HD-BNC, are compatible.
QIs there an easy way to mate them in a narrow pitch area?
QIs there an easy way to mate them in a narrow pitch area?

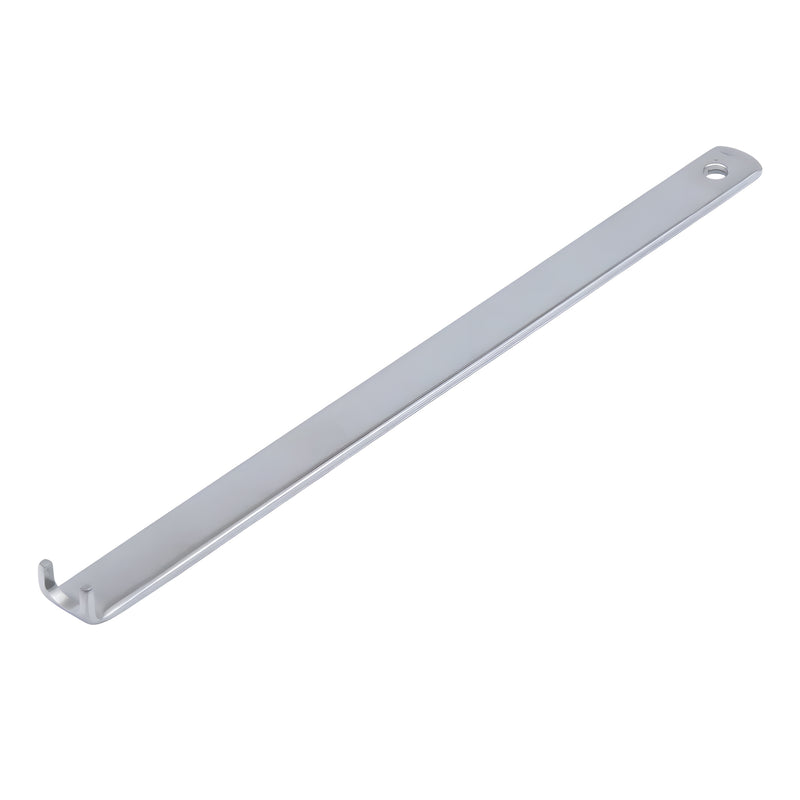

Yes. Micro BNC connectors are miniaturized for high-density mounting in narrow pitches. Mating can be tricky, but a dedicated tool allows smooth connection.
QWhat is the purpose of the tool bit for a round nut?
QWhat is the purpose of the tool bit for a round nut?

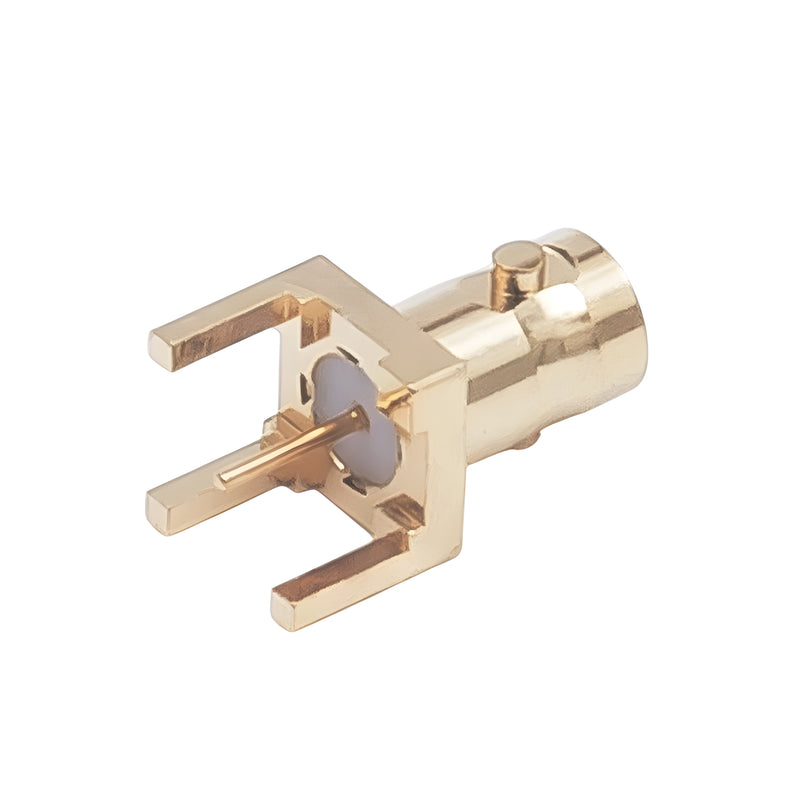

Some Micro BNC receptacles for printed circuit boards use a round nut to clamp the enclosure. Since it is not hexagonal, the bit for round nut tool is used to tighten it.
QAre Micro BNC connectors suitable for high-density mounting?
QAre Micro BNC connectors suitable for high-density mounting?
Yes, Micro BNC connectors are designed for high-density mounting. Their compact size allows for four times the density of standard BNC connectors, with a minimum pitch of 8 mm.
QWhat is the impedance rating of Micro BNC connectors?
QWhat is the impedance rating of Micro BNC connectors?
Micro BNC connectors typically have an impedance of 75 Ω, making them suitable for video and audio signal transmission. Some models are also compatible with 50 Ω cables.
QWhat coupling method do Micro BNC connectors use?
QWhat coupling method do Micro BNC connectors use?
Micro BNC connectors utilize a bayonet coupling method, allowing for easy connection and disconnection without threading. The internal spring mechanism ensures a secure connection.
QWhat is the voltage rating of Micro BNC connectors?
QWhat is the voltage rating of Micro BNC connectors?
Micro BNC connectors are rated for standard operating voltage of up to AC 170 V, ensuring safe operation in typical applications.
QWhat is the maximum voltage rating of Micro BNC connectors?
QWhat is the maximum voltage rating of Micro BNC connectors?
Micro BNC connectors can safely withstand up to AC 500 V for one minute without electrical breakdown, providing durability in demanding environments.
QWhat is the insulation resistance of Micro BNC connectors?
QWhat is the insulation resistance of Micro BNC connectors?
Micro BNC connectors offer a minimum insulation resistance of 10,000 mΩ when tested with 500 V DC, ensuring electrical safety and preventing leakage.
QWhat is the contact resistance of Micro BNC connectors?
QWhat is the contact resistance of Micro BNC connectors?
The center contact resistance of Micro BNC connectors is a maximum of 10 mΩ, and the outer contact resistance is a maximum of 2.5 mΩ when conducting DC current of 1 A.
QWhat is the frequency range of Micro BNC connectors?
QWhat is the frequency range of Micro BNC connectors?
Micro BNC connectors are suitable for signals within a frequency range from DC to 12 GHz, depending on the specific model and application requirements.
QWhat is the Voltage Standing Wave Ratio (VSWR) of Micro BNC connectors?
QWhat is the Voltage Standing Wave Ratio (VSWR) of Micro BNC connectors?
Micro BNC connectors maintain optimal signal quality with a maximum V.S.W.R. of 1.3 within the frequency range of DC to 4 GHz, ensuring minimal signal reflection.
QCan Micro BNC connectors be used for 4K signal transmission?
QCan Micro BNC connectors be used for 4K signal transmission?
Yes, Micro BNC connectors are compatible with 12G-SDI, the current standard for high-definition and large-capacity image transmission, allowing 4K equivalent signals over long distances.
QHow can I order Micro BNC RF connectors, and what support do you offer?
QHow can I order Micro BNC RF connectors, and what support do you offer?
Ordering is simple—you can purchase our Micro BNC RF Connectors directly on our website or contact our sales team for assistance. We also provide full technical support, including datasheets, CAD models, and application notes, to help you pick the perfect connector for your project.
