What are Coaxial Terminators?
A coaxial terminator is connected to open equipment to prevent reflections and turn high-frequency energy into heat. It contains an internal termination resistor and is also known as a non-reflective terminator, termination resistor, dummy load, etc.
When choosing a terminator, consider the type of connector on the equipment (plug or jack), the frequency band, and the power (wattage) it needs to handle. For high-power applications, terminators may need heat sinks to manage higher temperatures.

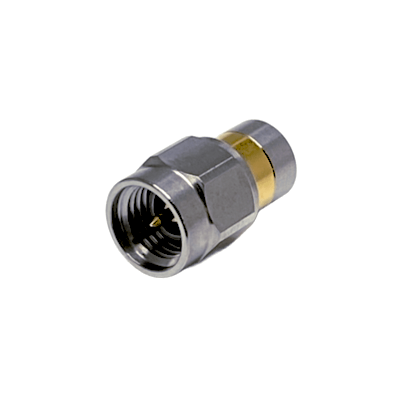

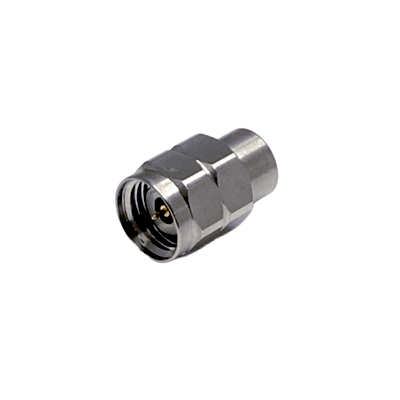

1.85 mm V, 2.4 mm Coaxial Terminators
2.92 mm K, 3.5 mm Coaxial Terminators
4.3/10 DIN, 7/16 DIN Coaxial Terminators
Tyclon's 4.3/10 DIN Coaxial Terminators (IEC 61169-54) offer robust, compact solutions for base stations. Our larger 7/16 DIN (IEC 60169-4) Coaxial Terminators provide high-power, weatherproof performance for demanding telecom infrastructure.
BNC Coaxial Terminators
F, N 50 Ω Coaxial Terminators
Tyclon offers 50 Ω F-type terminators for specific RF tasks, distinct from common 75 Ω TV types. Our N-type 50 Ω terminators provide robust, threaded connections, ensuring reliable performance in various RF communication systems.
NXT Coaxial Terminators
The connector can be mated with NEX10 RF connectors from other manufacturers, all of which are manufactured under the IEC 61169-71 standard. It can also be mated seamlessly with NEX10 RF connector ports on Ericsson, Nokia, and other wireless communication equipment.
SMA, SMB Coaxial Terminators
SMA terminators (MIL-C-39012, IEC 60169-15) offer high performance with a secure threaded connection for microwave uses. SMB terminators (MIL-C-39012, JIS C 5415) provide a compact, snap-on solution for internal RF circuitry.
SMP, TNC Coaxial Terminators
Coaxial Terminator Specifications
Impedance
Typically 50Ω or 75Ω. Matching system impedance is essential to prevent signal reflection.
Frequency Range
Defines the operating frequency range. Precision terminators are required for high-frequency applications.
Power Rating
Indicates the maximum power the terminator can safely dissipate.
VSWR / Return Loss
Represents impedance matching performance. Better values reduce signal reflection.
Connector Type
Specifies the interface type such as SMA, BNC, or N.
Typical Applications of Coaxial Terminators
Coaxial terminators are used to absorb RF signals at the end of transmission lines and prevent signal reflection.
They are essential for maintaining signal integrity and protecting RF equipment in various systems.
Typical applications include:
Terminating unused RF ports
RF test and measurement environments
System calibration and signal integrity testing
Antenna and communication systems
How to Choose Coaxial Terminators
Selecting the right coaxial terminator requires understanding your system requirements, including impedance, frequency range, and power level. Proper selection ensures stable performance and prevents signal reflection or equipment damage.
1. Confirm Impedance
Ensure the terminator matches your system impedance (50Ω or 75Ω).
2. Check Frequency Range
Select a terminator suitable for your operating frequency.
3. Consider Power Rating
Ensure the terminator can safely handle the input power.
4. Select Connector Type
Choose a connector compatible with your system (SMA, BNC, N, etc.).
Not sure which coaxial terminator is right for your application? Contact us for assistance.
Coaxial Terminator FAQs
QWhat are the primary functions of Tyclon coaxial terminators?
QWhat are the primary functions of Tyclon coaxial terminators?
Tyclon terminators absorb RF signals at an open port, preventing reflections, minimizing signal distortion, and maintaining system impedance for optimal performance.
QWhat impedance values do Tyclon terminators support?
QWhat impedance values do Tyclon terminators support?
Tyclon offers a range of coaxial terminators, commonly in 50 Ω for telecom/data and 75 Ω for video/broadcast, ensuring proper system impedance matching.
QWhat frequency ranges do Tyclon coaxial terminators cover?
QWhat frequency ranges do Tyclon coaxial terminators cover?
Our terminators cater to diverse needs, with specific models designed for frequencies from DC up to 6 GHz, and some, like the SMP series, reaching up to 40 GHz.
QWhat power handling capabilities do Tyclon terminators offer?
QWhat power handling capabilities do Tyclon terminators offer?
Tyclon provides terminators with various power ratings, typically from 0.5 W to high-power options up to 100 W, suitable for diverse application demands.
QWhat types of coaxial connector interfaces are available for Tyclon terminators?
QWhat types of coaxial connector interfaces are available for Tyclon terminators?
We offer a broad selection, including N-type, F-type, SMA, BNC, and SMP connectors, ensuring compatibility with your existing RF infrastructure and new designs.
QHow do Tyclon terminators ensure low VSWR?
QHow do Tyclon terminators ensure low VSWR?
Tyclon terminators are engineered for minimal signal reflection. For example, our N50-SP N-type terminator boasts an excellent VSWR of 1.2 (Max.) from DC to 6 GHz.
QAre Tyclon terminators suitable for both indoor and outdoor applications?
QAre Tyclon terminators suitable for both indoor and outdoor applications?
Yes, selected Tyclon terminators feature durable and waterproof designs, making them reliable for both controlled indoor environments and challenging outdoor deployments.
QWhat materials are typically used in Tyclon coaxial terminators?
QWhat materials are typically used in Tyclon coaxial terminators?
Our terminators utilize high-quality materials such as brass bodies with nickel or gold plating, and contacts made of brass or beryllium copper with gold plating. Additionally, we incorporate ternary plating for enhanced durability and corrosion resistance.
QIn which applications are Tyclon coaxial terminators commonly used?
QIn which applications are Tyclon coaxial terminators commonly used?
They are vital in telecommunications (5G, IoT), data infrastructure, RF and microwave test & measurement setups, and video and broadcast equipment solutions.
QHow can I order coaxial terminators, and what support do you offer?
QHow can I order coaxial terminators, and what support do you offer?
Ordering is simple—you can purchase our coaxial terminators directly on our website or contact our sales team for assistance. We also provide full technical support, including datasheets, CAD models, and application notes, to help you pick the perfect connector for your project.
