1.85 mm V RF Connectors Guide: Types, and Structure
What are 1.85 mm V RF Connectors?
The 1.85 mm V RF connector is a high-performance precision coaxial connector designed for frequencies up to 67 GHz. It features a 50 Ω impedance and a threaded coupling mechanism, ensuring stable signal transmission and secure connections.
It is mechanically compatible with 2.4 mm connectors, but not with 2.92 mm, 3.5 mm, or SMA connectors due to differences in interface design. This makes it ideal for high-frequency test and measurement applications where accuracy and reliable performance are critical.
1.85 mm V RF Connector Compatibility with 2.4 mm
1.85 mm (V-type) RF connectors are mechanically compatible with 2.4 mm connectors,
allowing precise inter-mating up to 67 GHz.
However, they are not compatible with 2.92 mm (K), 3.5 mm, or SMA connectors due to
different mechanical interfaces.
While the 1.85 mm series maintains a 50 Ω impedance and a threaded coupling mechanism,
mating with incompatible types can cause damage or reflection issues.
Adapters are recommended when connecting to lower-frequency systems.
Browse 1.85 mm V RF Connectors by Type
Find 1.85mm V RF connectors by type and quickly navigate to the right product category.
Can't find the right 1.85mm V RF connector? We're here to help.
Find High-Frequency Test Cables (Up to 67 GHz)
We offer high-frequency measurement cables with 1.85 mm V connectors, compatible with other connectors such as SMA. Please refer to the product page for specifications.

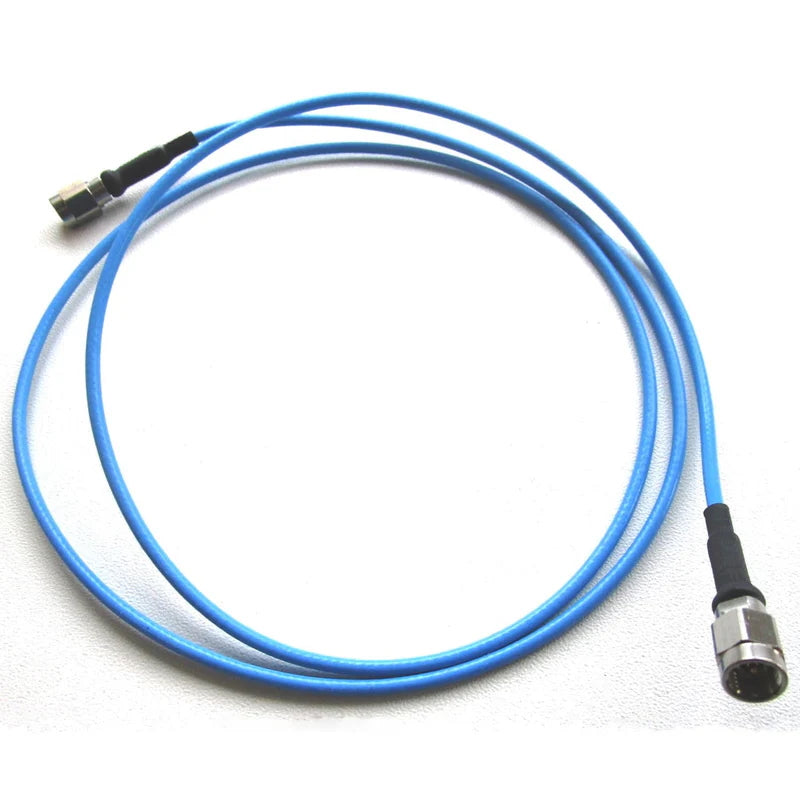

TC-054 60 GHz Compatible High-Flexibility, High-Frequency RF Test Cable
This 0.085-inch (RG405) equivalent cable is highly flexible and maintains stable performance up to the millimeter wave band. It is suitable for a wide range of applications, offering a variety of compatible connectors at a relatively low cost.
Connectors available include 1.85 mm type (plug), 2.92 mm type (plug, jack), SMA type (plug, L plug, jack), N type (plug), and others upon request. The 1.85 mm V-type cable core is pinned, ensuring low reflection and use up to 60 GHz.
For detailed cable specifications, electrical characteristics, and more, please refer to the pages below.
Request Custom Semi-Rigid Cable Solutions
Semi-rigid cables with 1.85 mm V connectors are available and can be paired with other connectors, including SMA. Please refer to the product page for specifications.

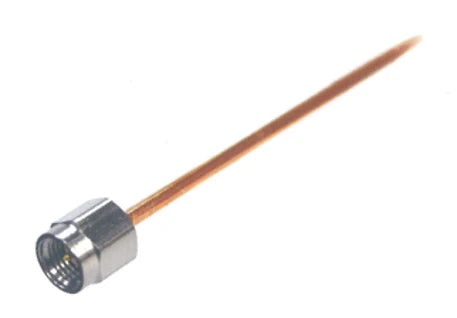

0.085-inch SR-002 Semi-Rigid RF Cables
0.085 inch equivalent semi-rigid RF cable, offering the widest range of compatible connectors. We can support up to 50 GHz.For detailed cable specifications, electrical characteristics, and more, please refer to the pages below.
1.85 mm V RF Connector Features
High-Frequency
Our product lineup covers the DC to 67 GHz high-frequency range. By replacing the Teflon insulator with air and increasing the outer diameter to 1.85 mm, these connectors can support even higher frequencies than SMA connectors.
Compatibility
1.85 mm V connectors are compatible with 2.4 mm connectors but not with SMA, 3.5 mm, or 2.92 mm K connectors.
Compact Connector for High-Density Mounting in Tight Spaces
The compact connector allows high-density mounting in tight spaces, enabling wiring within equipment and connections between subassemblies and equipment.
1.85 mm V RF Connector Applications
The 1.85 mm V RF connector is widely used in high-frequency applications where precision, stability, and reliability are essential. With support for frequencies up to 67 GHz, it is commonly used in advanced test and measurement systems such as network analyzers and RF test setups.
It is also suitable for aerospace and defense applications, including satellite onboard systems, radar, and communication equipment, where consistent performance under demanding conditions is required. In addition, these connectors are used in high-frequency research environments and microwave systems that require accurate and repeatable signal transmission.
Its mechanical compatibility with 2.4 mm connectors and robust design make it a reliable choice for engineers working in critical RF applications.
RF Connector Frequency Comparison
The following RF connectors are commonly used in high-frequency applications, each with different frequency ranges and characteristics.
1.0 mm: Up to 110 GHz
1.85 mm (V): Up to 67 GHz
2.4 mm: Up to 50 GHz
2.92 mm (K): Up to 40 GHz
3.5 mm: Up to 34 GHz
SMA: Up to 18 GHz
Higher-frequency connectors offer better performance but typically require more careful handling and precise alignment.
How to Choose 1.85 mm V RF Connectors
When selecting 1.85 mm V RF connectors, it’s important to consider frequency performance, interface compatibility, and mounting requirements. These connectors are designed for precision high-frequency applications, so choosing the right type directly affects signal integrity.
1. Check Frequency Requirements
1.85 mm connectors support frequencies up to 67 GHz, making them suitable for millimeter-wave and high-frequency test environments.
Choose connectors that match your system’s frequency range to avoid signal loss and reflection.
2. Confirm Interface Compatibility
1.85 mm connectors are mechanically compatible with 2.4 mm connectors, but not with SMA connectors.
Using incompatible interfaces can damage the connector and degrade performance, so always verify mating compatibility before use.
3. Select the Right Mounting Type
Choose the connector type based on your application:

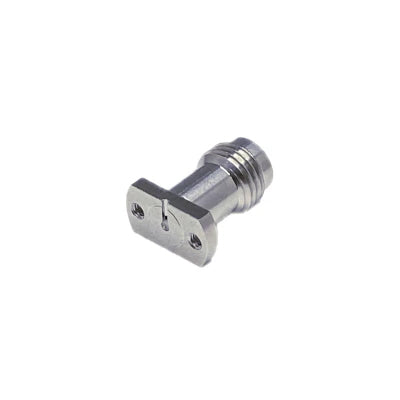

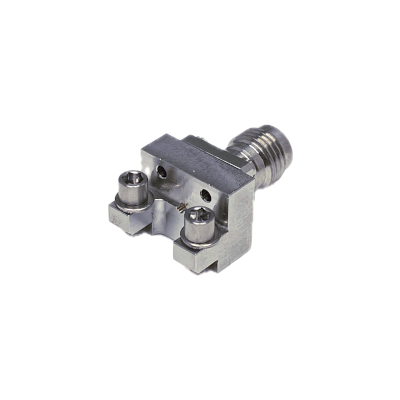

PCB Receptacles for board-mounted designs

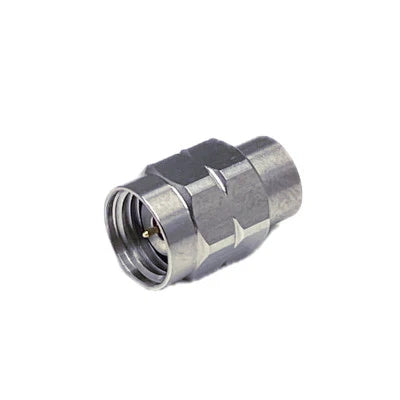

Cable Connectors for flexible or semi-rigid cables

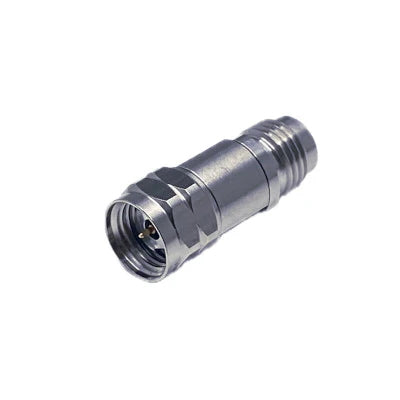

Adapters for interconnecting different interfaces

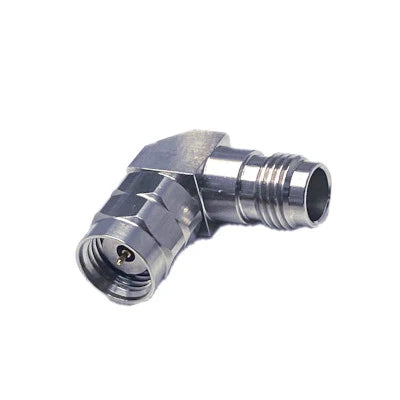

Right-angle connectors are ideal for compact layouts, while straight types are suitable for direct connections.
4. Match Cable Type
Ensure the connector matches the cable you are using, such as semi-rigid or low-loss coaxial cables.
Proper matching improves impedance stability and minimizes signal attenuation.
5. Consider Application Environment
For test and measurement setups, durability and repeatable performance are critical.
If the connector will be frequently connected and disconnected, select high-quality precision connectors designed for repeated mating cycles.
1.0 mm vs 1.85 mm (V) vs 2.4 mm RF Connectors
1.0 mm, 1.85 mm (V), and 2.4 mm RF connectors cover different levels of high-frequency performance and durability.
1.0 mm supports up to 110 GHz and is used for the most demanding measurement environments.
1.85 mm supports up to 67 GHz and offers a balance between performance and durability.
2.4 mm supports up to 50 GHz and features a larger structure, providing improved durability and power handling.
In practice, 1.0 mm is used for ultra-high-frequency precision, 1.85 mm for high-performance testing, and 2.4 mm for more durable test systems.
1.85 mm V RF Connector: Standards & Technical Specifications
Compatible Standards
1.85 mm V RF Connector: Standards & Technical Specifications
Nominal Impedance
Impedance rating is 50 Ω, indicating compatibility with most standard RF equipment.
Coupling Method (Connector Interface)
Connectors securely join using threaded coupling M7 P0.75-6H, 6g for stable signal transmission.
Working Voltage (Rated Voltage)
Rated for standard operating voltage of up to 160 V AC.
Maximum Withstanding Voltage
Safely withstands up to 500 V AC for one minute without electrical breakdown.
Insulation Resistance
Minimum insulation resistance of 5,000 MΩ when tested with DC 500 V, ensuring electrical safety.
Contact Resistance
Maximum contact resistance of 4.0 mΩ (Center) / 2.5 mΩ (Outer) when conducting DC current of 1 A, ensuring efficient connection.
Frequency Range
Suitable for signals within frequency range from DC to 67 GHz.
1.85 mm V RF Connector FAQs
QWhat is the difference between 1.85 mm and SMA connectors?
QWhat is the difference between 1.85 mm and SMA connectors?
The 1.85 mm V connector features a 1.85 mm outline by replacing the Teflon insulator with air, allowing for a higher waveguide mode cutoff frequency and supporting an operating range from DC to 67 GHz. The SMA, 3.5 mm, and 2.92 mm K connectors have similar shapes but are not compatible, while the 2.4 mm connector is mated.
> SMA
> 3.5mm
> 2.92mm K
> 2.4mm
QAre there connectors with even higher frequency and smaller size?
QAre there connectors with even higher frequency and smaller size?
Our product lineup now includes 1.0 mm connectors supporting frequencies up to 110 GHz. Please note that these connectors are not compatible with 1.85 mm connectors.
QWhat is the maximum operating frequency of the 1.85 mm V connector?
QWhat is the maximum operating frequency of the 1.85 mm V connector?
The 1.85 mm V connector series is engineered for superior high-frequency performance. It is designed to operate reliably from direct current up to a maximum frequency of 67 GHz, making it ideal for advanced, high-speed applications.
QHow does the 1.85 mm V connector achieve such a high frequency?
QHow does the 1.85 mm V connector achieve such a high frequency?
The connector's high-frequency capability comes from its unique design. By using air as the dielectric and reducing the outer conductor's diameter to 1.85 mm, the waveguide mode cutoff frequency is significantly increased, allowing for stable performance.
QWhat is the standard impedance for the 1.85 mm V connector series?
QWhat is the standard impedance for the 1.85 mm V connector series?
The 1.85 mm V connector is designed to maintain a precise characteristic impedance of 50 Ω. This ensures minimal signal reflection and maximum power transfer in high-frequency systems, which is critical for maintaining signal integrity.
QWhich international standard do 1.85 mm V connectors comply with?
QWhich international standard do 1.85 mm V connectors comply with?
These connectors are manufactured to meet the rigorous specifications of the International Electrotechnical Commission 61169-32 standard. This compliance ensures interoperability and consistent performance for all connectors in the 1.85 mm V series.
QWhat are the typical applications for 1.85 mm V connectors?
QWhat are the typical applications for 1.85 mm V connectors?
Due to their high-frequency performance and reliability, these connectors are primarily used in demanding fields. Key applications include satellite communications, military and aviation equipment, and precision instruments like network analyzers.
QWhat type of coupling mechanism does the 1.85 mm V connector use?
QWhat type of coupling mechanism does the 1.85 mm V connector use?
This connector series utilizes a threaded coupling mechanism with a specific M7 P0.75-6H, 6g thread size. This robust screw-on design ensures a secure and stable connection that is resistant to vibration and guarantees consistent electrical performance.

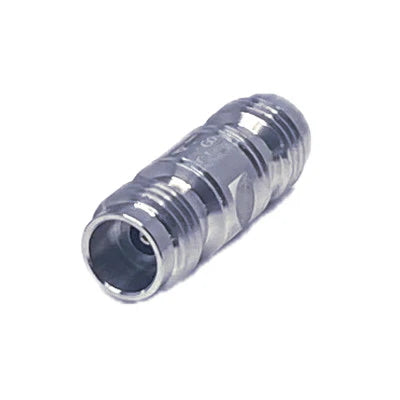

QCan I mate a 1.85 mm V connector with a 2.4 mm connector?
QCan I mate a 1.85 mm V connector with a 2.4 mm connector?
Yes, the 1.85 mm V connector is designed to be mechanically compatible and intermateable with the 2.4 mm connector series. This allows for seamless integration between systems that use either of these high-frequency connector types without performance loss.
QWhat are the key electrical specifications like voltage and insulation?
QWhat are the key electrical specifications like voltage and insulation?
The 1.85 mm V connector has a rated voltage of 160 V alternating current and can withstand 500 V for one minute. It also features a minimum insulation resistance of 5,000 MΩ, ensuring excellent electrical isolation.
QWhy is the miniature size of the 1.85 mm V connector beneficial?
QWhy is the miniature size of the 1.85 mm V connector beneficial?
Its miniature size is a significant advantage for modern electronics, enabling high-density mounting on printed circuit boards. This allows engineers to design more compact and complex equipment without sacrificing the connector's high-frequency performance.
