Coaxial Impedance Converters: Types, Structure, and Uses Explained
What Are Coaxial Impedance Converters?
BNC and N Type Coaxial Impedance Converters.
Impedance converters enable matching between different characteristic impedances. Conversion is typically from 50 Ω to 75 Ω or 75 Ω to 50 Ω. Three methods are used for impedance conversion—transformer, resistance, and transmission circuit—each selected based on application and frequency bandwidth.
Why Is Impedance Matching Necessary?
When electronic devices are connected with mismatched impedances, signal reflection and attenuation occur, reducing communication quality and measurement accuracy. To prevent this, impedance matching is essential.
When combining devices with different impedances, such as 50 Ω and 75 Ω, an impedance converter ensures matching and maintains system stability.
What Happens if There Is an Impedance Mismatch?
- ・ Signal Reflection: Signals bounce along the transmission line, causing delivery errors.
- ・ Power Loss: Power fails to reach the intended device, reducing efficiency.
- ・ Measurement Error: Inaccurate results occur when the measurement system is not impedance-matched.
Benefits of Impedance Matching
- ・ Stable signal transmission
- ・ Prevention of device compatibility issues
- ・ Greater accuracy in measurement and communication
50 Ω vs 75 Ω Impedance Conversion
Impedance conversion between 50Ω and 75Ω is commonly required when connecting RF and video equipment with different system standards. Without proper matching, signal reflection and degradation can occur.
Typical usage scenarios include:
Connecting a network analyzer (50Ω) to CATV equipment (75Ω)
Matching a video signal transmission line (75Ω) with measuring equipment (50Ω)
Linking a professional camera (75Ω BNC) to a modulator (50Ω input)
In these cases, precise impedance matching is essential to prevent signal degradation and maintain a low standing wave ratio (SWR).
Types of Coaxial Impedance Converters
Coaxial impedance converters can be categorized into several types based on their internal structure and conversion method. Each type offers different characteristics in terms of frequency performance, insertion loss, and application suitability.
Understanding these differences helps you select the most appropriate converter for your RF system.
Transformer Type
Transformer-type impedance converters use electromagnetic coupling to convert impedance.
They are typically used in lower-frequency applications and offer good isolation characteristics.
Resistive Type
Resistive impedance converters use resistor networks to achieve impedance matching.
They provide stable performance over a wide frequency range but introduce signal loss due to power dissipation.
Microstrip Line Type
Microstrip line converters use transmission line structures to transform impedance.
They are suitable for high-frequency applications and offer low loss with good performance in microwave ranges.

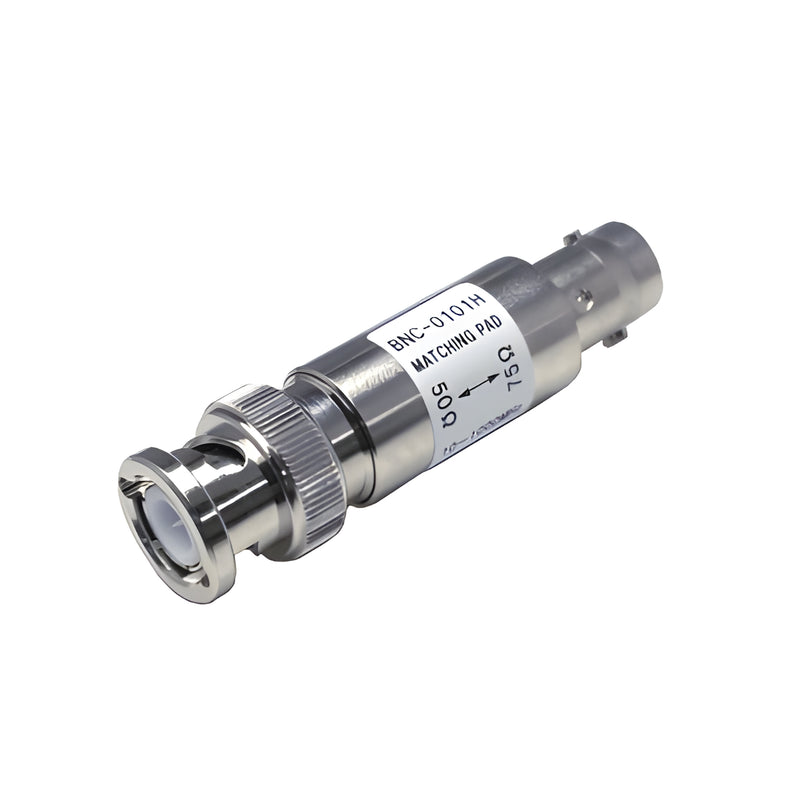

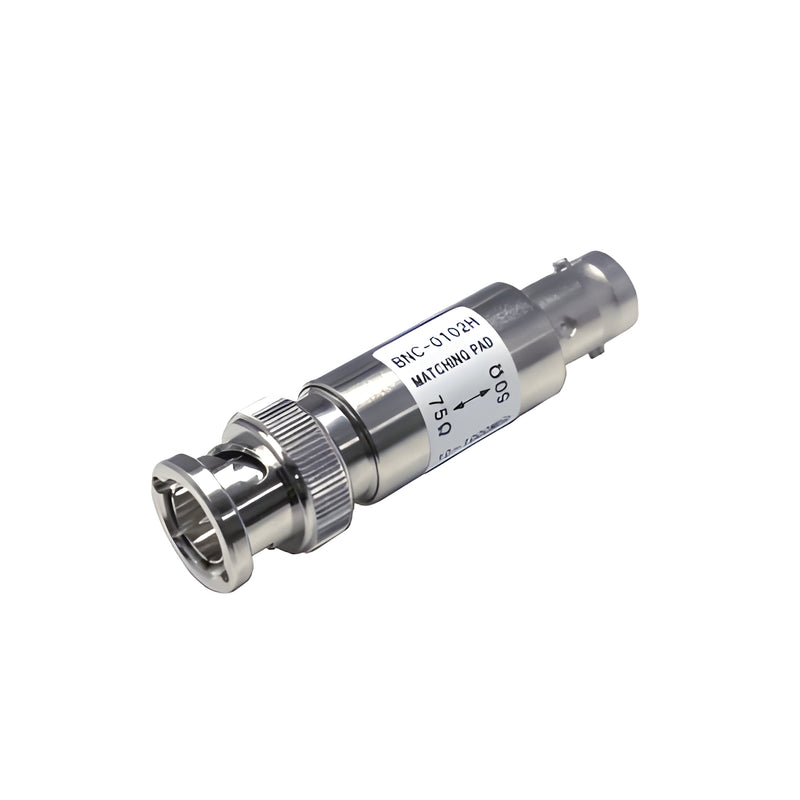

BNC Transformer Type Coaxial Impedance Converters

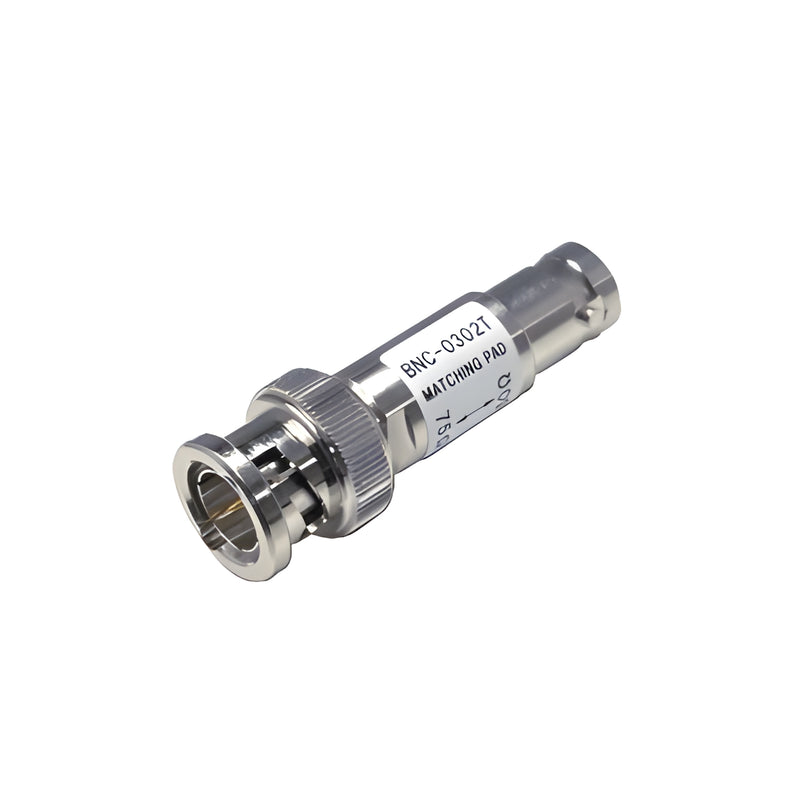

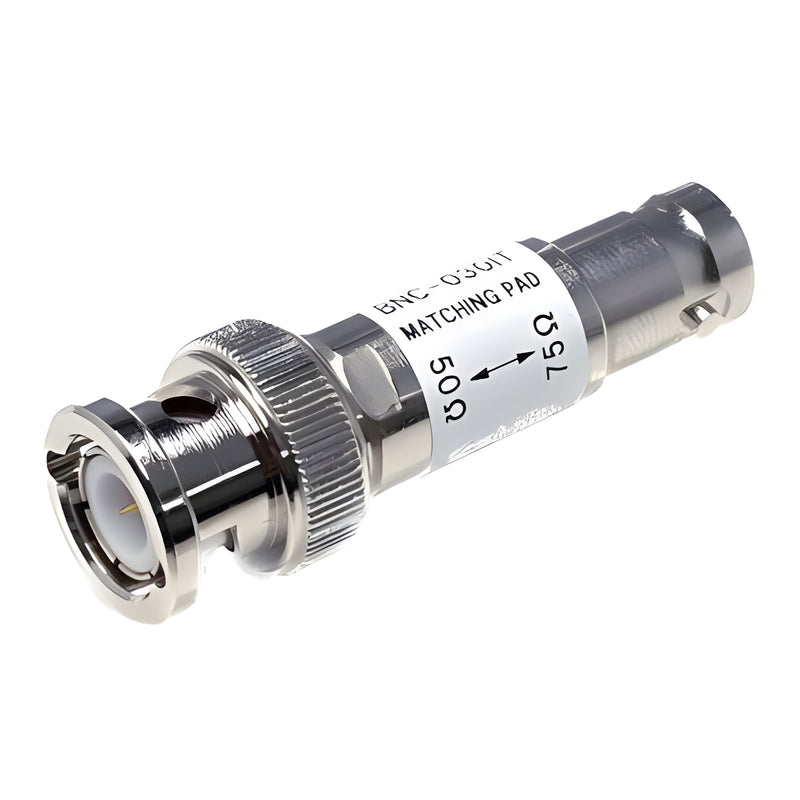

BNC Resistive Type Coaxial Impedance Converters

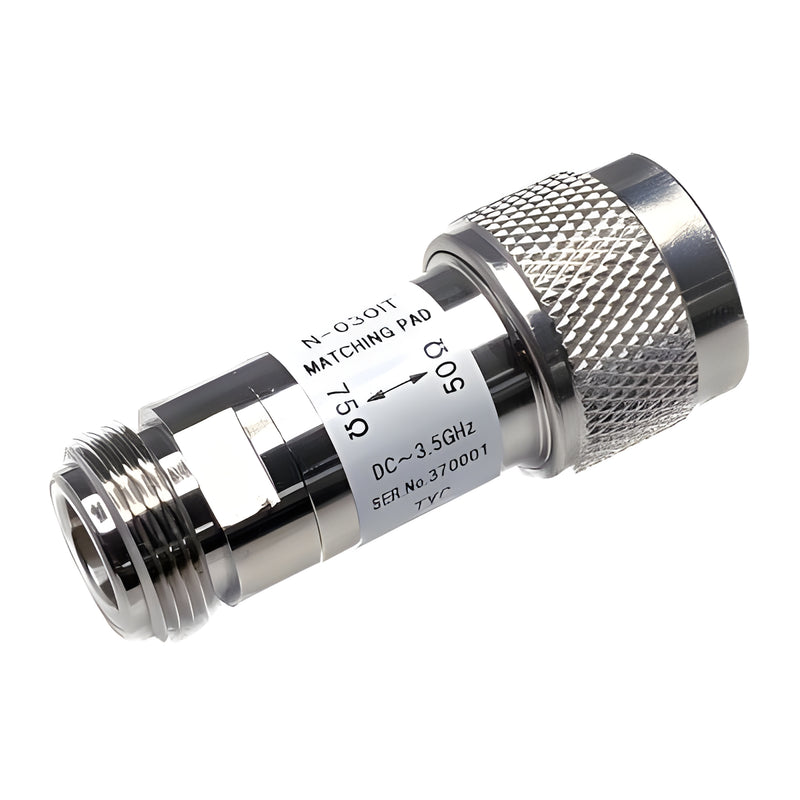

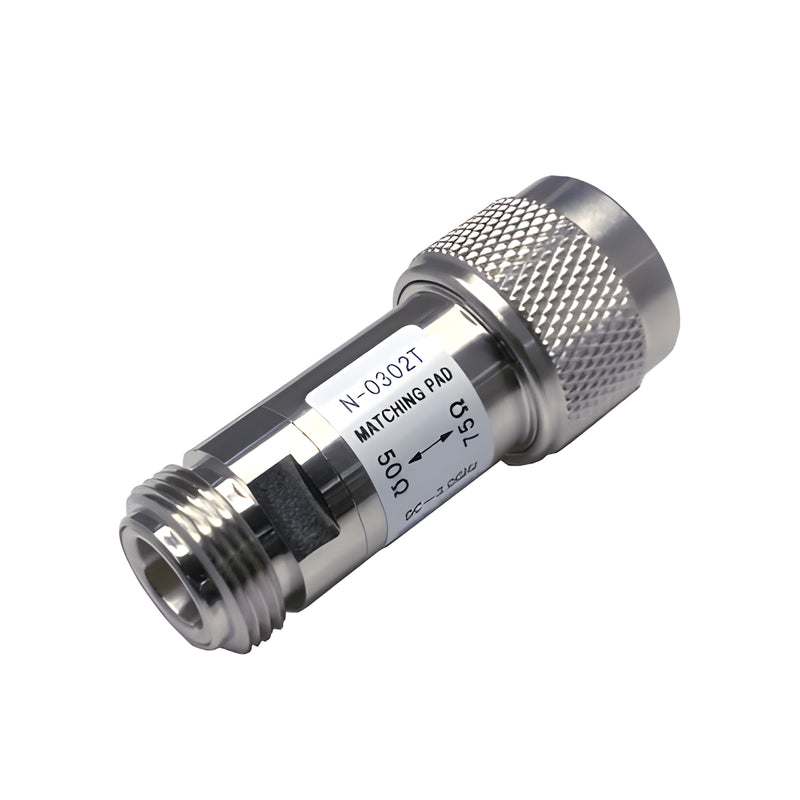

N Resistive Type Coaxial Impedance Converters

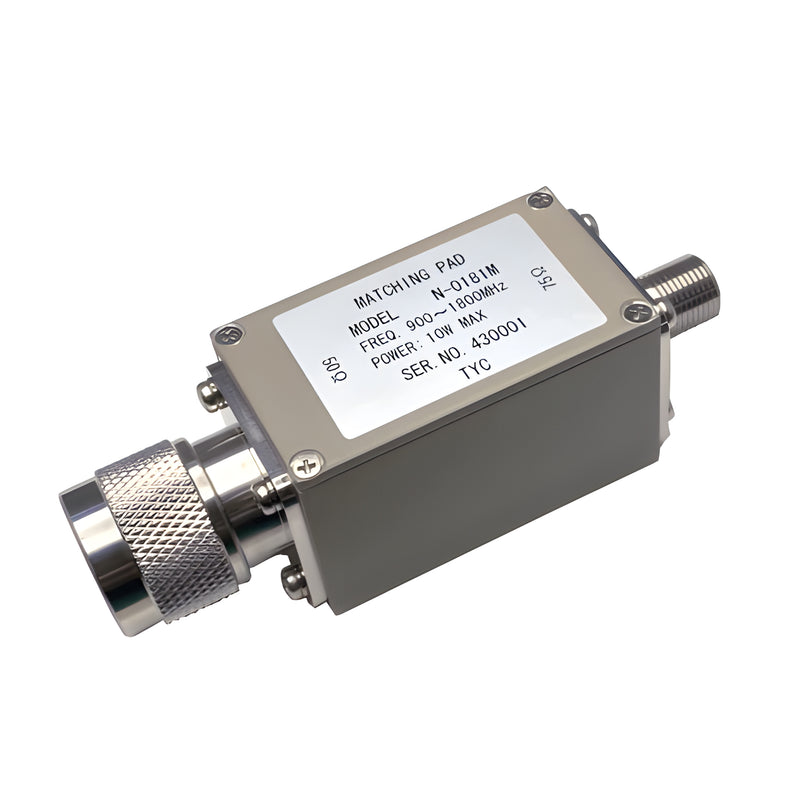

N Microstrip Line Type Coaxial Impedance Converters
Coaxial Impedance Converter Specifications
Coaxial impedance converters are defined by several key specifications that determine their performance and compatibility within RF systems. Understanding these parameters helps ensure accurate impedance matching and stable signal transmission.
Impedance Conversion Ratio
The most common conversion is between 50Ω and 75Ω, but other impedance combinations may also be available depending on the application.
Frequency Range
The operating frequency range depends on the conversion method and internal structure. High-frequency applications require converters designed for minimal loss and stable performance.
Insertion Loss
Insertion loss indicates how much signal power is lost during conversion. Lower loss is preferred for maintaining signal integrity.
Return Loss / VSWR
Return loss or VSWR reflects how well impedance matching is achieved. Better matching results in lower reflection and improved signal transmission.
Connector Type
Connector types such as BNC or N determine compatibility with your RF system.
Main Applications of Coaxial Impedance Converters
Impedance converters are used to minimize signal reflection and loss when connecting devices with different impedances. Key applications include:
･ Connection with Measuring Equipment:
Used to link equipment of different impedances, such as 50 Ω measuring instruments and 75 Ω devices under test.
･ Broadcasting and Video Equipment:
Broadcast systems commonly use 75 Ω, requiring converters when interfacing with equipment of different standards.
･ Wireless Communication Equipment:
Conversion between 50 Ω and 75 Ω is often needed in testing and connection environments for communication systems.
How to Choose Coaxial Impedance Converters
Selecting the right impedance converter requires consideration of system impedance, connector type, and operating conditions. Proper selection ensures stable performance and prevents signal mismatch.
1. Confirm Input and Output Impedance
Identify the impedance of both devices and choose a converter that matches the required conversion (e.g., 50Ω to 75Ω).
2. Select Connector Type
Choose connectors compatible with your system, such as BNC or N.
3. Check Frequency Range
Ensure the converter supports your operating frequency.
4. Consider Conversion Method
Different types (transformer, resistive, microstrip) offer different performance characteristics depending on the application.
If you are unsure which impedance converter is suitable, please contact us.
Coaxial Impedance Converter FAQs
QAre there any restrictions on frequency bands?
QAre there any restrictions on frequency bands?
Yes. Each product supports specific frequency bands. Please refer to the product links at the top for details.
QCan I specify the connector type?
QCan I specify the connector type?
Standard options are BNC and N.
QWhat happens if I connect without using an impedance converter?
QWhat happens if I connect without using an impedance converter?
Unmatched impedance can cause signal reflection or loss, leading to poor communication or measurement errors. Using converters ensures proper equipment performance.
QWhy is impedance matching necessary?
QWhy is impedance matching necessary?
Impedance matching prevents signal reflection, power loss, and measurement errors, ensuring stable signal transmission and accurate communication between devices.
QWhat are the types of impedance conversion methods?
QWhat are the types of impedance conversion methods?
The three main methods are: conversion transformer, resistance conversion, and transmission circuit. The choice depends on the application and frequency bandwidth.
QWhat is the frequency range of Tyclon impedance converters?
QWhat is the frequency range of Tyclon impedance converters?
Tyclon's impedance converters operate across various frequency ranges, with models supporting up to 3.5 GHz, catering to different application needs.
QWhat is the rated power of Tyclon impedance converters?
QWhat is the rated power of Tyclon impedance converters?
The rated power varies by model. For instance, the BNC-0101H has a rated power of 0.5W, while the N-0181M supports up to 10W, accommodating diverse application requirements.
QWhat materials are used in Tyclon impedance converters?
QWhat materials are used in Tyclon impedance converters?
Tyclon converters feature gold-plated contacts and nickel-plated bodies, ensuring durability and reliable performance in various environmental conditions.
QWhat is the temperature range for Tyclon impedance converters?
QWhat is the temperature range for Tyclon impedance converters?
The operating temperature range varies by model. For example, the BNC-0101H operates from -20°C to +50°C, suitable for a wide range of environments.
QCan Tyclon impedance converters be customized?
QCan Tyclon impedance converters be customized?
Yes, Tyclon offers customization options, including changes to shape, length, material, surface treatment, and packaging, to meet specific application requirements.
QHow can I order coaxial impedance converters, and what support do you offer?
QHow can I order coaxial impedance converters, and what support do you offer?
Ordering is simple—you can purchase our Coaxial Impedance Converters directly on our website or contact our sales team for assistance. We also provide full technical support, including datasheets, CAD models, and application notes, to help you pick the perfect connector for your project.
