F RF Connectors Guide: Types, Structure, and Uses Explained
What are F RF Connectors?
F RF connectors are coaxial connectors widely used in television, cable, and broadband communication systems. Unlike many RF connectors, the F connector uses the cable’s center conductor itself as the contact pin, eliminating the need for a separate center contact.
They are primarily designed for 75-ohm impedance systems and are commonly used with coaxial cables such as RG-59 and RG-6. The F (C15) type conforms to standards defined by the Japan Electronics and Information Technology Industries Association (JEITA) and is compatible with standard F-type connectors.
Due to their simple structure and low manufacturing cost, F connectors are extensively used in consumer electronics and broadcast infrastructure. In particular, they are well suited for installations where ease of assembly and cost efficiency are prioritized.
At TYCLON, we primarily offer F RF connector solutions compatible with RG-59 coaxial cables, which are widely used in video signal transmission and legacy cable systems.

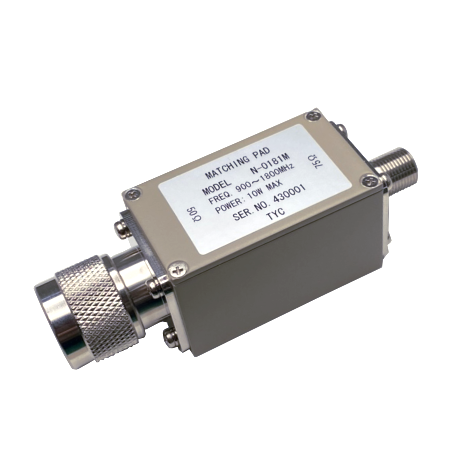

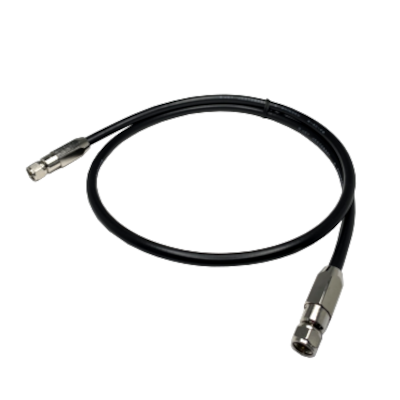

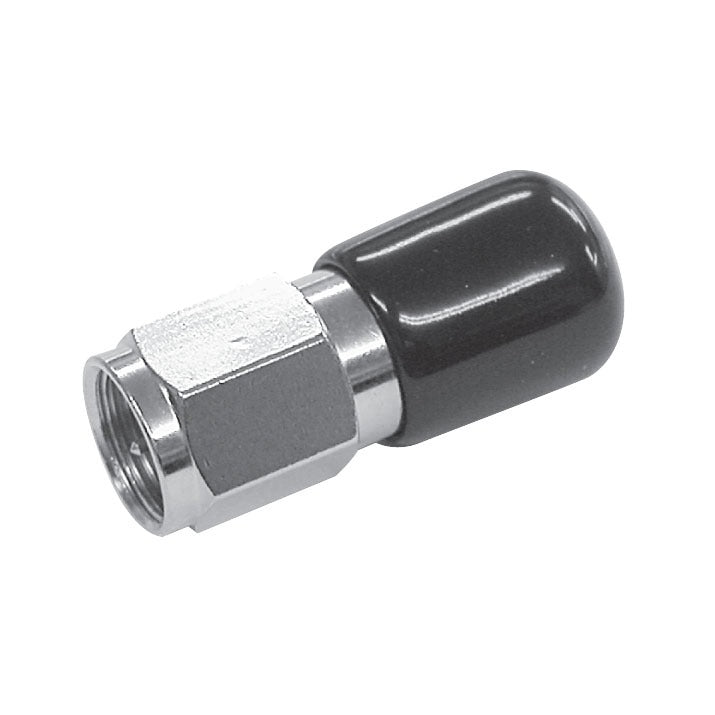

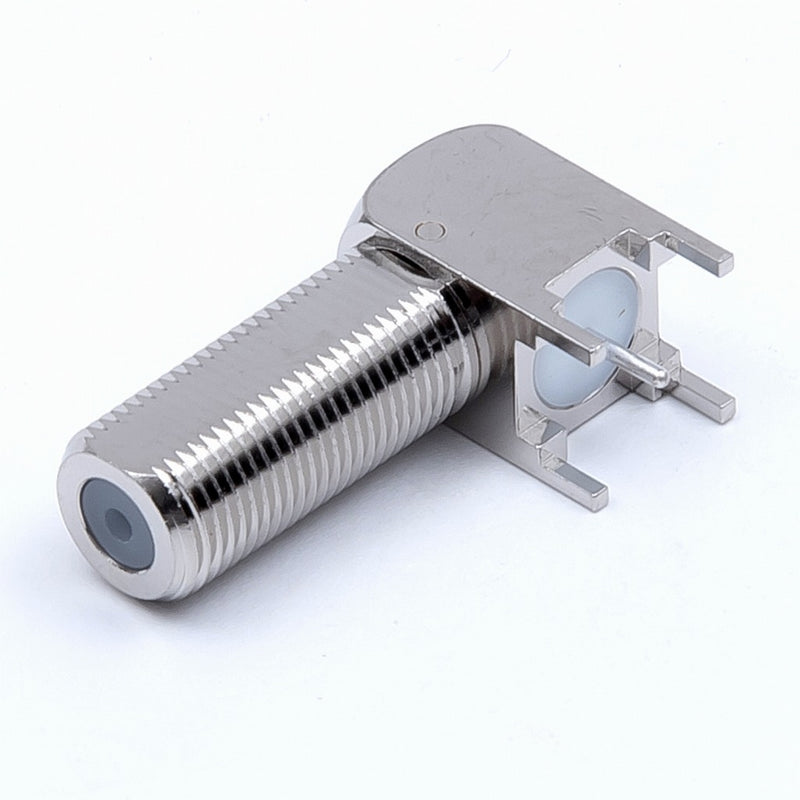

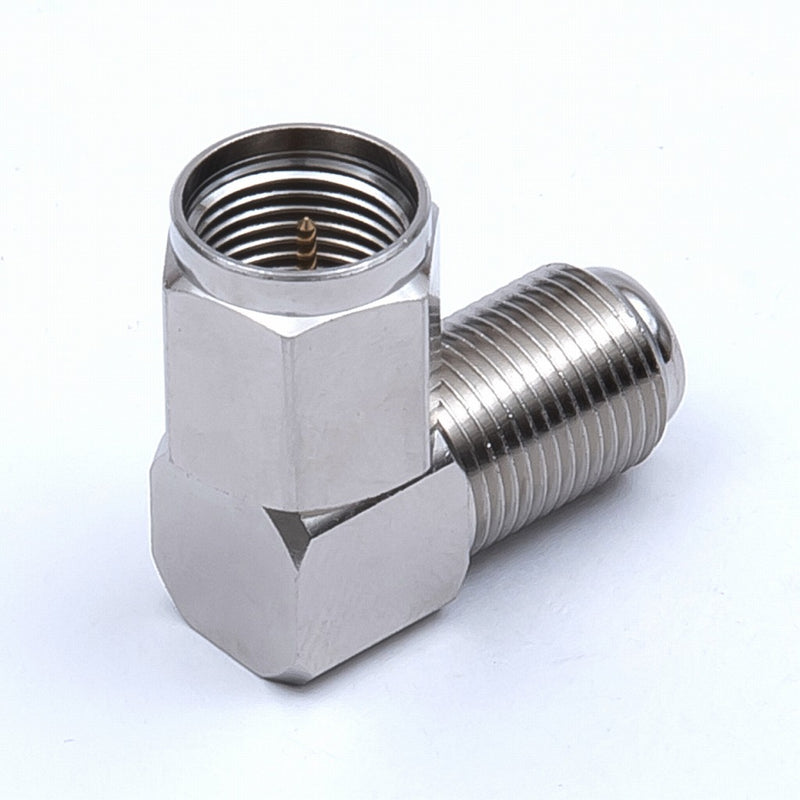

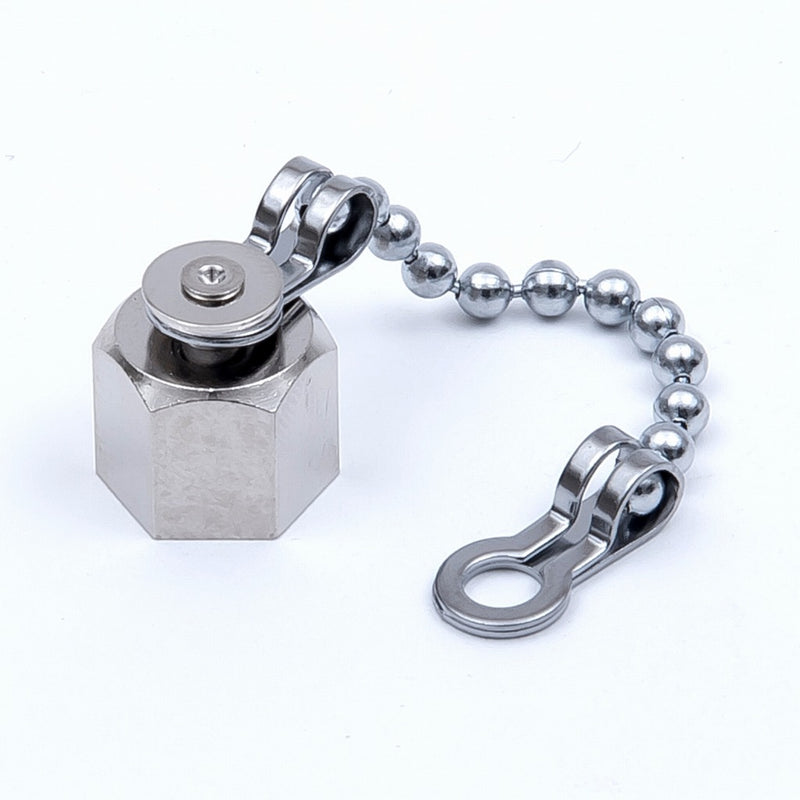

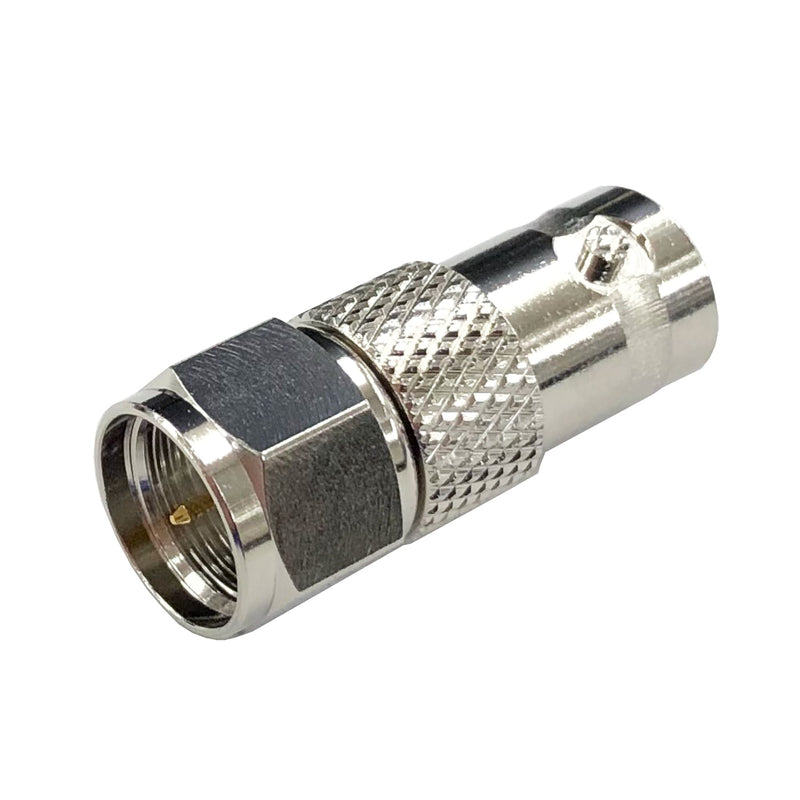

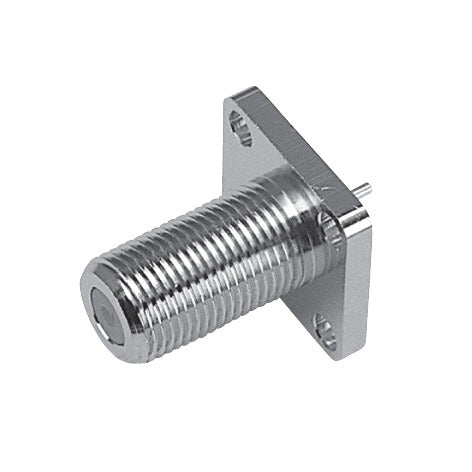

Browse F RF Connectors by Product Type
Find F RF connectors by type and quickly navigate to the right product category.
Can't find the right F RF connector? We're here to help.
Trivia: Compatible Cable Types
- MIL-Standard Coaxial Cables
These cables, also known as Mil-Spec, are engineered to meet rigorous US military specifications for performance and durability. They often feature the "RG" prefix, which stands for "Radio Guide," reflecting their roots in radio technology. They are critical in demanding applications like defense, aerospace, and telecommunications, where reliability is non-negotiable.
F RF Connector Features
Simple and Tool-Friendly Installation
F RF connectors use the cable’s center conductor as the contact, allowing for quick and straightforward installation. Many types can be installed using basic tools, making them ideal for field work and home setups.
Cost-Effective Structure
The absence of a dedicated center pin simplifies the connector design, reducing manufacturing costs. This makes F connectors highly suitable for large-scale deployment in cable television and broadband systems.
Optimized for 75 Ohm Systems
F connectors are specifically designed for 75-ohm impedance, ensuring efficient signal transmission for video and broadcast applications. They are not typically used in 50-ohm RF systems.
Compatibility with Standard Coaxial Cables
F connectors are commonly used with coaxial cables such as RG-59 and RG-6. TYCLON’s lineup focuses on RG-59-compatible solutions, making them suitable for standard video and antenna applications.
F RF Connector Applications
F RF connectors are widely used in applications that require reliable 75-ohm signal transmission:
- Terrestrial digital television (TV antenna connections)
- Cable television (CATV) systems
- Satellite broadcasting systems
- Broadband internet over coaxial cable
- Set-top boxes and home AV equipment
- Video signal distribution systems
They are especially suitable for residential and light commercial installations where ease of installation and cost efficiency are important.
TYCLON’s RG-59-compatible F connectors are particularly suited for standard-definition video transmission and legacy cable infrastructures, where RG-59 cables are commonly used.
How to Choose F RF Connectors
Choosing the right F RF connector depends on the cable type, installation method, and application environment. Since F connectors are typically used in 75-ohm systems, proper matching is essential for stable signal transmission.
1. Match the Cable Type
Ensure compatibility with your coaxial cable. F connectors are commonly used with RG-59 and RG-6 cables. TYCLON’s lineup is optimized for RG-59, so confirm the cable diameter and structure before selection.
2. Select the Installation Method
Choose the appropriate installation type based on your tools and requirements:
- Compression type: Best for long-term reliability and secure connections
- Crimp type: Suitable for controlled installations with proper tools
- Twist-on type: Quick installation but lower durability
3. Consider the Application Environment
For outdoor or high-humidity environments, select connectors with weatherproof or corrosion-resistant features. Indoor use typically allows for simpler connector types.
4. Confirm Impedance Requirements
F connectors are designed for 75-ohm systems. Ensure compatibility with your equipment, especially when working with video or broadcast signals.
Not sure which connector is right for your application? Contact us for expert assistance.
F RF Connector Standards & Dimensions
Equivalent Standards (Compatible Standards)
JEITA F: RC-5220B and C15: RC-5223C standards for reliable signal compatibility.
Impedance
Impedance rating is 75 Ω, indicating compatibility with most standard RF equipment.
Coupling Method (Connection)
Connectors securely join using threaded coupling (3/8-32UNEF-2A, 2B) for stable signal transmission.
Voltage Rating
Rated for standard operating voltage of up to AC 150 volts.
Maximum Voltage Rating
Safely withstands up to AC 500 V for one minute without electrical breakdown.
Insulation Resistance
Minimum insulation resistance of 5,000 megohms when tested with DC 500 volts, ensuring electrical safety.
Contact Resistance
Maximum contact resistance of 5 milliohms when conducting DC current of 1 amp, ensuring efficient connection.
Voltage Standing Wave Ratio (V.S.W.R.)
F: up to 890 megahertz at max 1.2, C15: up to 3,224 megahertz at max 1.3.
Note: The figures provided are typical values. For further details, please contact us.
F RF Connector FAQs
QDo I need a special tool for installation?
QDo I need a special tool for installation?
We have a connector that uses the center conductor of a coaxial cable as the center pin and can be easily installed with a pair of pliers to attach the ring for crimping.
QWhat are the main applications for these connectors?
QWhat are the main applications for these connectors?
These connectors primarily link television sets to antennas, supporting terrestrial, cable, and satellite broadcast reception with reliable signal transmission.
QWhat is an F (C15) RF connector?
QWhat is an F (C15) RF connector?
This connector meets Japan Electronics and Information Technology Industries Association standards and suits satellite broadcast reception, offering improved performance at higher frequencies.
QWhat frequency range do F RF connectors support?
QWhat frequency range do F RF connectors support?
F RF connectors typically operate effectively up to 3 gigahertz, making them ideal for television and satellite communications within that frequency range.
QHow does the connector ensure signal integrity?
QHow does the connector ensure signal integrity?
By using a threaded coupling mechanism and solid contact with the coaxial cable’s center conductor, the connector minimizes signal loss and interference.
QCan F-type connectors be used with different cable types?
QCan F-type connectors be used with different cable types?
They are compatible mainly with coaxial cables of 75 ohms impedance, commonly used in television and satellite signal applications.
QWhat is the typical impedance of F RF connectors?
QWhat is the typical impedance of F RF connectors?
These connectors maintain a consistent impedance of 75 ohms, matching coaxial cables used in broadcast and satellite communications for optimal performance.
QHow is the connector attached to the cable?
QHow is the connector attached to the cable?
Installation involves inserting the cable’s center conductor into the connector and securing it by tightening the threaded coupling, which ensures a stable connection.
QAre custom versions of F-type connectors available?
QAre custom versions of F-type connectors available?
Yes, manufacturers like Tyclon offer customization options to meet specific frequency, size, and application requirements for specialized projects.
QHow can I order F RF connectors, and what support do you offer?
QHow can I order F RF connectors, and what support do you offer?
Ordering is simple—you can purchase our F RF Connector directly on our website or contact our sales team for assistance. We also provide full technical support, including datasheets, CAD models, and application notes, to help you pick the perfect connector for your project.
