1.0/2.3 DIN RF Connectors Guide
What are 1.0/2.3 DIN RF Connectors?
1.0/2.3 DIN RF connectors are compact coaxial connectors used in communication equipment, broadcast systems, measurement devices, and high-density RF panels.
They are designed for reliable signal transmission in limited spaces and are often selected when larger connectors such as BNC are difficult to install due to panel space or connector spacing.
What is 1.0/2.3 DIN?
The 1.0/2.3 DIN interface is a compact RF connector standard widely used for high-density coaxial connections.
DIN refers to standards associated with Germany’s standardization system, and several RF coaxial connector interfaces are commonly known as DIN type connectors, including 1.0/2.3 DIN, 4.3/10 DIN, and 7/16 DIN.
The name “1.0/2.3” refers to the approximate dimensions of the inner and outer conductor interface.
Its small size and push-pull locking structure make it suitable for equipment where many RF ports need to be arranged in a limited space.
1.0/2.3 DIN connectors are generally available in both 50Ω and 75Ω types, depending on the application.
Tyclon’s standard lineup includes 75Ω 1.0/2.3 DIN connectors.

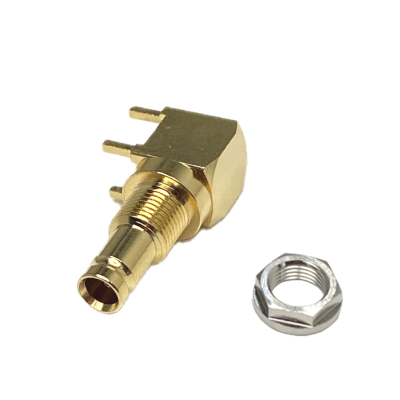

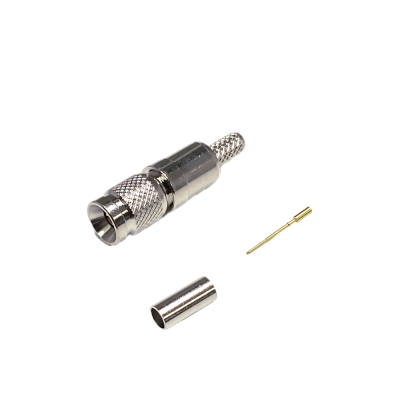

Browse 1.0/2.3 DIN RF Connectors by Product Type
Find 1.0/2.3 DIN RF connectors by type and quickly navigate to the right product category.
Can't find the right 1.0/2.3 DIN RF connector? We're here to help.
1.0/2.3 DIN Type RF Connector Features
Compact Size
1.0/2.3 DIN type connectors are much smaller than standard BNC connectors.
Their compact body makes them suitable for high-density equipment panels, rack-mounted devices, and compact communication equipment where space saving is important.
Push-Pull Locking
Many 1.0/2.3 DIN connectors use a push-pull locking mechanism.
This structure allows quick connection and disconnection without rotating the connector, making installation easier in narrow spaces or densely packed panels.
50Ω and 75Ω Lineup
1.0/2.3 DIN connectors are generally available for both 50Ω and 75Ω applications.
50Ω types are mainly used for RF communication and measurement systems, while 75Ω types are often used for broadcast, video, and digital signal transmission.
Tyclon’s standard lineup focuses on 75Ω 1.0/2.3 DIN connectors.
For other specifications or custom requirements, please contact us.
1.0/2.3 DIN Type RF Connectors Applications
For High-Density Equipment Panels
1.0/2.3 DIN connectors are often used when many coaxial ports need to be installed in a limited panel area.
Their compact size helps reduce connector spacing and makes them suitable for communication equipment, rack-mounted systems, and other high-density RF devices.
For Broadcast and Video Signal Lines
75Ω 1.0/2.3 DIN connectors are commonly used for video and broadcast signal transmission.
They are suitable for equipment that requires stable coaxial signal connections while keeping the connector layout compact.
1.0/2.3 DIN vs BNC DIN: Key Differences
1.0/2.3 DIN and BNC connectors are both used for coaxial signal transmission.
However, they differ in size, locking structure, and application focus.
Key Differences
Size and Weight
1.0/2.3 DIN connectors are smaller and lighter than BNC connectors, making them suitable for high-density equipment panels.
Locking Mechanism
1.0/2.3 DIN connectors commonly use a push-pull locking mechanism, while BNC connectors use a bayonet locking mechanism.
Panel Density
1.0/2.3 DIN is suitable for equipment that requires many coaxial ports in a limited space. BNC requires more installation space.
Application Trends
1.0/2.3 DIN is often used in compact communication, broadcast, and measurement equipment. BNC remains widely used for general RF, video, and test applications.
Not sure which connector is right for your application? Contact us for assistance.
1.0/2.3 DIN Type RF Connector Standards & Dimensions
Impedance
50 Ω / 75 Ω
Coupling Method (Connection)
Push-Pull Coupling
Frequency Range
Varies by product type
V.S.W.R.
Varies by product type
Materials
Varies by product type
Note: The figures provided are typical values. For further details, please contact us.
How to Choose 1.0/2.3 DIN Connectors
When selecting 1.0/2.3 DIN connectors, first confirm the required impedance and cable type.
In general, 50Ω types are commonly used for RF communication and measurement applications, while 75Ω types are often selected for broadcast and video signal transmission.
Tyclon’s standard lineup includes 75Ω 1.0/2.3 DIN connectors.
Please check whether the required impedance matches your application before selecting a product.
You should also check the mounting style, straight or right-angle structure, connector gender, frequency range, and available installation space.
If you are unsure which product is suitable, please contact us with your cable type, required impedance, and application details.
1.0/2.3 DIN Type RF Connector FAQ
QWhat is a 1.0/2.3 DIN connector?
QWhat is a 1.0/2.3 DIN connector?
A 1.0/2.3 DIN connector is a compact RF coaxial connector used for communication equipment, broadcast systems, measurement devices, and high-density RF panels.
It is often selected when many coaxial ports need to be arranged in a limited space.
QWhat does DIN mean in 1.0/2.3 DIN?
QWhat does DIN mean in 1.0/2.3 DIN?
DIN refers to standards associated with Germany’s standardization system.
In RF coaxial connectors, several interfaces are commonly known as DIN type connectors, including 1.0/2.3 DIN, 4.3/10 DIN, and 7/16 DIN.
QWhat is the difference between 1.0/2.3 DIN and BNC?
QWhat is the difference between 1.0/2.3 DIN and BNC?
1.0/2.3 DIN connectors are smaller than BNC connectors and are suitable for high-density layouts.
BNC connectors are larger and widely used for general RF, video, and test equipment applications.
QIs 1.0/2.3 DIN available in 50Ω and 75Ω?
QIs 1.0/2.3 DIN available in 50Ω and 75Ω?
Yes. 1.0/2.3 DIN connectors are generally available in both 50Ω and 75Ω types depending on the application.
50Ω types are commonly used for RF communication and measurement systems, while 75Ω types are often used for broadcast and video signal transmission.
Tyclon’s standard lineup mainly includes 75Ω 1.0/2.3 DIN connectors.
For other specifications or custom requirements, please contact us.
