7/16 DIN RF Connectors Guide
What are 7/16 DIN RF Connectors?
7/16 DIN RF connectors are large, robust, and weatherproof connectors designed for high-power RF applications. They are widely used in base stations, antennas, and transmission systems where durability and low-loss performance are critical.
What is 7/16 DIN?
The 7/16 DIN connector is a standardized RF interface known for its ability to handle high power levels with low insertion loss and excellent mechanical stability.
It has been widely used in wireless infrastructure, particularly in base stations and antenna systems, due to its robust design and reliable performance in harsh outdoor environments.
Compared to newer interfaces such as 4.3/10 DIN, the 7/16 DIN connector is larger and heavier but remains a preferred choice for applications requiring high power handling and long-term durability.
Browse 7/16 DIN RF Connectors by Product Type
Find 7/16 DIN RF connectors by type and quickly navigate to the right product category.
Can't find the right 7/16 DIN RF connector? We're here to help.
7/16 DIN Type RF Connector Features
Large Size
7/16 DIN connectors are large and high-power connectors. Its high-power and superior weather resistance is suitable for outdoor radios and mobile base station antenna devices. Their body which is 30-40% larger than 4.3/10 DIN connectors, apply to thick coaxial cables with high-power.
Trivia : Coaxial Cable Thickness
The thicker the coaxial cable, the less flexible it is, but the better the characteristic impedance with less noise and loss. Usually, the longer the cable is, the worse the characteristic impedance become, so the tendency is to select thicker cables.
High Frequency
We have a lineup of products that can be used in high-frequency bands from DC to 6 GHz.
7/16 DIN Type RF Connectors Applications
As a Power Feed Line
In mobile communication base station construction, copper corrugated cables (WFLEX, WF-H, etc.) are often used as feeder cables connecting antennas, multiplexers, radios, etc.If the equipment terminals are 7/16 DIN, a processed plug + corrugated cable will be used.Since we assemble coaxial connectors and cables at our company, we can also provide express services when you are in a hurry.

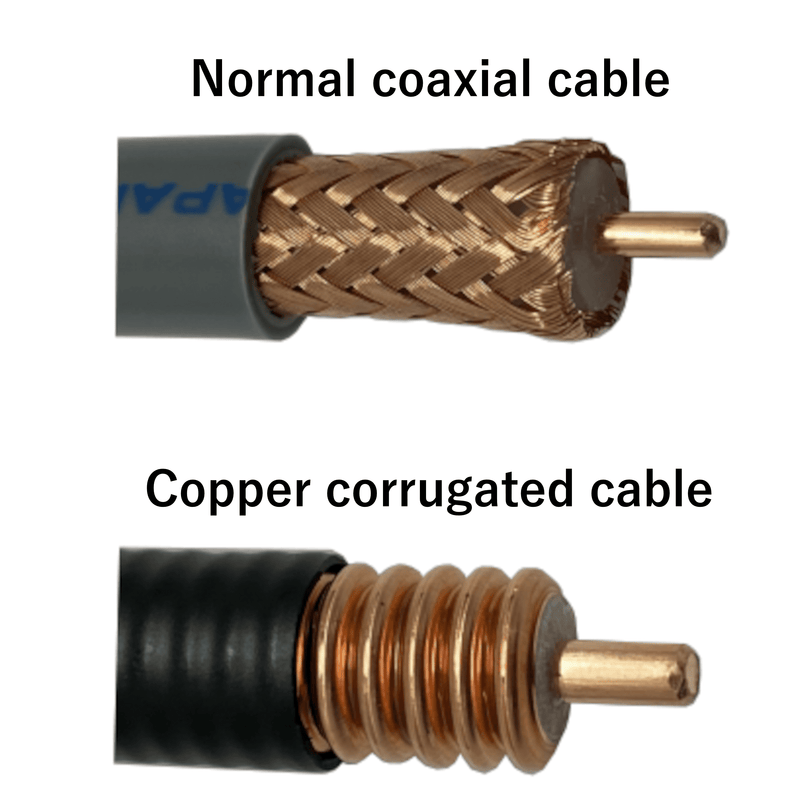

Trivia : Copper Corrugated Cable
Copper corrugated cables are widely used in mobile band communication base station construction as coaxial cables with lower loss than ordinary coaxial cables (using a braided mesh outer conductor) by using ring-shaped corrugated copper tubes as the outer conductor.Our connectors can be attached to copper corrugated cables manufactured by Fujikura Dia Cable.
For Free Ports on Equipment
In mobile communication base station construction, there may be unused empty ports for antennas, common equipment, radio equipment, etc. If the equipment has 7/16 DIN terminals, waterproof caps and terminators are used In many cases, the caps are used for antennas, and the terminators are used for common-use equipment and radio equipment to close the unoccupied ports In addition to our regular lineup, we have also developed a one-touch type that does not require screw mating for specific carrier installation. Please contact us for more information.
Conversion Connector for Equipment Replacement
When replacing equipment such as antennas, multiplexers, and radios in mobile communication base station construction, the type of equipment and cables (feeder lines, jumpers, etc.) may differ. If the terminals of the equipment or cables are 7/16 DIN , conversion connectors are used. Conversions for all patterns of plug (male) and jack (female) are available for "7/16 DIN - 4.3/10 DIN" and "7/16 DIN - N," respectively. In addition, 7/16 DIN jack (female) to jack (female) adapters are also useful when the length of the feeder wire is insufficient.
4.3/10 DIN vs 7/16 DIN Connectors: Key Differences
The 4.3/10 DIN and 7/16 DIN connectors are both widely used in RF communication systems, particularly in base stations and antenna installations. While they share similar electrical performance, they differ in size, weight, and application focus.
Key Differences
Size and Weight
4.3/10 DIN connectors are significantly smaller and lighter than 7/16 DIN connectors, making them suitable for high-density installations.
Power Handling
7/16 DIN connectors are designed for higher power applications and are often used in systems requiring maximum power capacity.
Installation and Handling
4.3/10 DIN connectors are easier to handle and install due to their compact design and improved coupling mechanism.
Application Trends
4.3/10 DIN is increasingly used in modern wireless infrastructure, while 7/16 DIN remains common in legacy and high-power systems.
Not sure which connector is right for your application? Contact us for assistance.
7/16 DIN Type RF Connector Standards & Dimensions
Compatible Standards
IEC 60169-4
Impedance
50Ω
Coupling Method (Connection)
Threaded Coupling M29 P1.5
Voltage Rating
2.7kV max. at 50 Hz
Power Rating
1.8 kW at 1 GHz
Maximum Voltage Rating
4 kV at 50 Hz
Insulation Resistance
10 GΩ min.
Contact Resistance
Inner Conductor 0.4 mΩ max.;
Outer Conductor 0.2 mΩ max.
Frequency Range
0 to 6 GHz
Note: The figures provided are typical values. For further details, please contact us.
How to Choose 7/16 DIN Connectors
Selecting the right 7/16 DIN connector depends on your system’s power requirements, cable type, and installation environment. Proper selection ensures reliable performance in high-power RF systems.
1. Check Power Requirements
Ensure the connector supports the required power level for your application.
2. Select Cable Type
Choose connectors compatible with corrugated cables or coaxial cables used in base station systems.
3. Consider Environmental Conditions
Outdoor installations require connectors with strong waterproof and corrosion-resistant performance.
4. Evaluate Installation Method
Select appropriate mounting types such as cable mount or panel mount depending on your setup.
Not sure which 7/16 DIN connector fits your application? Contact us for assistance.
7/16 DIN Type RF Connector FAQ
QWhat is DIN?
QWhat is DIN?
DIN refers to connectors, in general, which are standardized by German Industrial Standard Products. Therefore, it often refers to circular multi-core connectors.
In the case of coaxial connectors, products such as 7/16, 4.3/10, and 1.0/2.3 connectors fall into this category.
1.0/2.3 connectors are not included in our regular product lineup but can be custom-ordered.
QWhat is the difference between 7/16 and 4.3/10 connectors?
QWhat is the difference between 7/16 and 4.3/10 connectors?
The 4.3/10 DIN connector is a smaller standard than the 7/16 DIN connector, and like the 7/16 DIN, it is a screw-mating type. Both are widely used in European equipment, with 4.3/10 DIN in being the newer standard.
QWhat is an NXT connector?
QWhat is an NXT connector?
NXT connector is used in newer equipment than 7/16 Din and 4.3/10 Din connectors. Smaller and lighter than 4.3/10 Din. Can be mated with NEX10 connectors manufactured by other companies that conform to the IEC 61169-71 standard. Can be coupled with Ericsson, Nokia, and other wireless communication devices with NEX10 connector ports.
QDo you have waterproof connectors?
QDo you have waterproof connectors?
All 4.3/10 Din caps and terminations are waterproof. This eliminates the need for tape wrapping during installation and helps to improve installation efficiency.
