Coaxial Splitters (RF Power Dividers) Guide

What are Coaxial Splitters (RF Power Dividers) ?

Coaxial Splitters, also called RF Power Dividers, distribute an RF or microwave signal from one input to multiple outputs with equal amplitude and consistent phase. Only the power is divided; the signal characteristics (phase and frequency) remain the same across all output ports. Configurations include 2-way and 4-way, and various models are available to match system requirements.

Coaxial Splitters (RF Power Dividers) are essential in communication, radar, test and measurement, and antenna networks. They enable flexible signal routing by evenly splitting power across multiple paths or combining multiple signals into a single port, supporting both commercial and military applications.

Search Our Coaxial Splitters (RF Power Dividers)

2.92mm Ｋ Type Coaxial Splitters (RF Power Dividers)

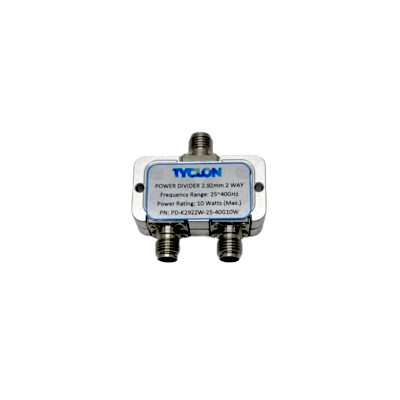

2.92mm K Coaxial Splitter (RF Power Divider)

PD-K2922W-25-40G10W

2-way 2.92mm K Jack Splitter, 25～40GHz

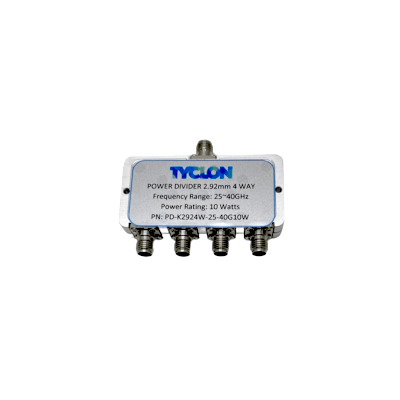

2.92mm K Coaxial Splitter (RF Power Divider)

PD-K2924W-25-40G10W

4-way 2.92mm K Jack Splitter, 25～40GHz

SMA Type Coaxial Splitters (RF Power Dividers)

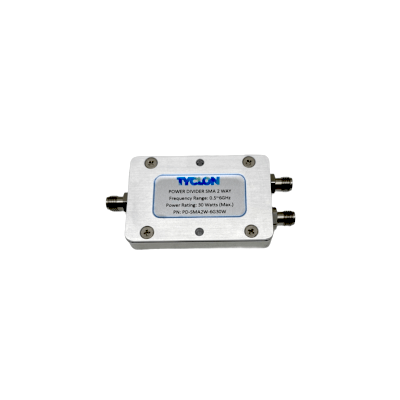

SMA Coaxial Splitter (RF Power Divider)

PD-SMA2W-6G30W

2-way SMA Jack Splitter, 0.5～6GHz

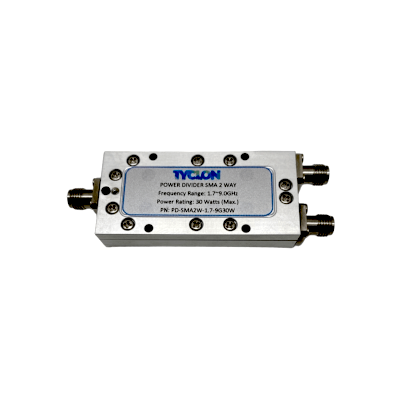

SMA Coaxial Splitter (RF Power Divider)

PD-SMA2W-1.7-9G30W

2-way SMA Jack Splitter, 1.7～9GHz
SMA Coaxial Splitter (RF Power Divider)

PD-SMA4W-6G30W

4-way SMA Jack Splitter, 0.5～6GHz

BNC 50 Ω Type Coaxial Splitters (RF Power Dividers)

Coaxial Distributors

BNC-0012

Stripline Type 2-Way BNC 50 Ω Jack Splitter, 0.1–110 MHz
BNC Coaxial Splitter (RF Power Divider)

BNC-0014

Stripline Type 4-Way BNC 50 Ω Jack Splitter, 0.1–110 MHz

BNC-0092

Stripline Type 2-Way BNC 50 Ω Jack Splitter, 40–900 MHz

BNC-0094

Stripline Type 4-Way BNC 50 Ω Jack Splitter, 40–900 MHz

BNC 75 Ω Type Coaxial Splitters (RF Power Dividers)

BNC-0092C

Stripline Type 2-Way BNC 75 Ω Jack Splitter, 40–900 MHz

BNC-0094C

Stripline Type 4-Way BNC 75 Ω Jack Splitter, 40–900 MHz

N 50 Ω Type Coaxial Splitters (RF Power Dividers)

N Coaxial Splitter (RF Power Divider)

PD-N2W-6G

2-way N Jack Splitter, 0.7～6GHz

N-0092

Stripline Type 2-Way BNC 50 Ω Jack Splitter, 40–900 MHz

N-0094

Stripline Type 4-Way N 50 Ω Jack Splitter, 40–900 MHz

N-9182

Wilkinson-Type Microstrip Line 2-Way N 50 Ω Jack Splitter, 900–1800 MHz

N-9184

Wilkinson-Type Microstrip Line 4-Way N 50 Ω Jack Splitter, 900–1800 MHz

Coaxial Splitters (RF Power Dividers) FAQs

QWhat is a Coaxial Splitter (RF Power Divider)?
A

A Coaxial Splitter (RF Power Divider) , also known as a synthesizer, evenly splits or combines high-frequency signals while maintaining stability and minimizing signal loss.

QWhat types of connectors are available for coaxial distributors?
A

Tyclon Coaxial Splitter (RF Power Divider) are available with 2.92mm K, SMA, BNC and N-type connectors, chosen for their precision performance across multiple frequency ranges.

QHow do I select the right Coaxial Splitter (RF Power Divider)?
A

Selection depends on the required frequency band, connector type, impedance, and the number of outputs needed for your application.

QWhat frequencies can Tyclon Coaxial Splitter (RF Power Divider) support?
A

Tyclon Coaxial Splitter (RF Power Divider) are designed for high-frequency performance, covering a wide range of frequency bands used in advanced applications.

QWhy is impedance matching important in Coaxial Splitter (RF Power Divider)?
A

Proper impedance matching prevents signal reflections, ensuring maximum power transfer and the reliable distribution of high-frequency signals.

QWhat is the difference between BNC and N-type Coaxial Splitters?
A

BNC connectors are compact and easy to use, while N-type connectors offer superior durability and consistent performance at higher frequencies.

QCan Coaxial Splitters (RF Power Dividers) handle multiple output channels?
A

Yes, Splitters can be configured for multiple outputs, enabling the precise distribution of high-frequency signals across several connected devices.

QWhat are typical applications for Coaxial Splitter (RF Power Divider)?
A

They are used in wireless communication, test and measurement systems, broadcasting, and other environments requiring accurate signal control.

QHow does Tyclon ensure reliability in Coaxial Splitter (RF Power Divider)?
A

All Coaxial Splitters (RF Power Dividers) are built with Japanese precision manufacturing, ensuring long life, consistent signal performance, and trusted reliability.

QWhat is the role of a Coaxial Splitter in RF systems?
A

In radio frequency systems, a distributor ensures signals are split or combined efficiently, maintaining quality for accurate and stable transmission.

QWhy choose Tyclon Coaxial Splitters (RF Power Dividers)?
A

Tyclon delivers high-quality, precision-engineered coaxial distributors with proven performance, expert support, and customizable options.

QHow can I order a Coaxial Splitter (RF Power Divider), and what support do you offer?
A

Ordering is simple—you can purchase our Coaxial Splitter (RF Power Divider) directly on our website or contact our sales team for assistance. We also provide comprehensive technical support, including datasheets, CAD models, and application notes, to help you select the ideal connector for your project.
