HN RF Connectors Guide
What are HN RF Connectors?
HN RF connectors are coaxial connectors designed for high-voltage and high-power applications. They support rated voltages of up to 15 kV and offer high dielectric strength, making them suitable for demanding electrical environments.
These connectors feature a threaded coupling mechanism similar to N-type connectors, but they are larger and specifically engineered for improved insulation and safety. HN connectors are not compatible with N connectors and cannot be mated together.
Due to their robust construction and high-voltage capability, HN connectors are widely used in power supply systems, test equipment, and industrial applications where reliable high-voltage transmission is required.
Browse HN RF Connectors by Product Type

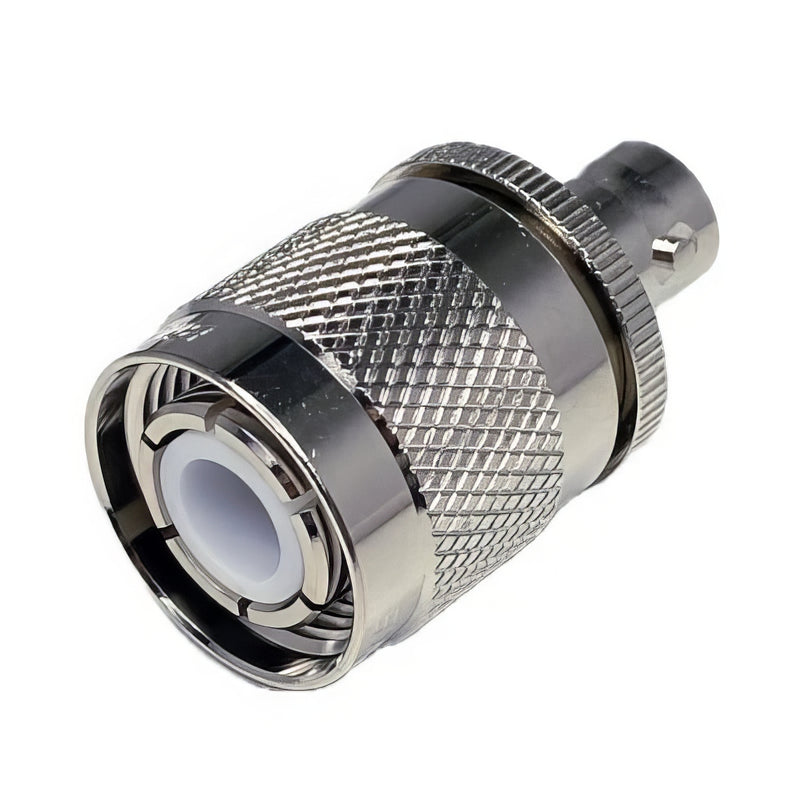

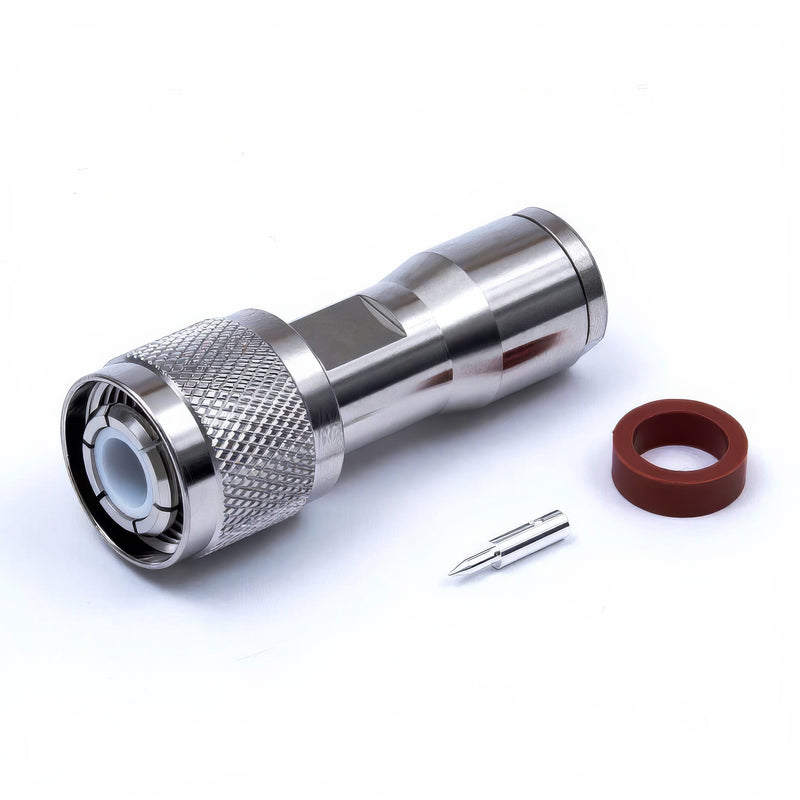

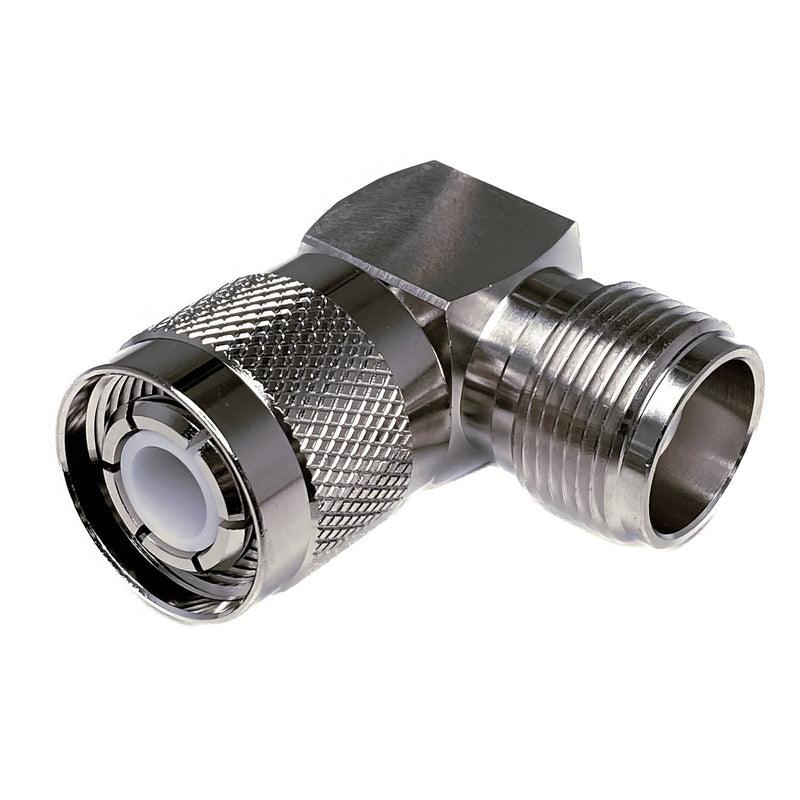

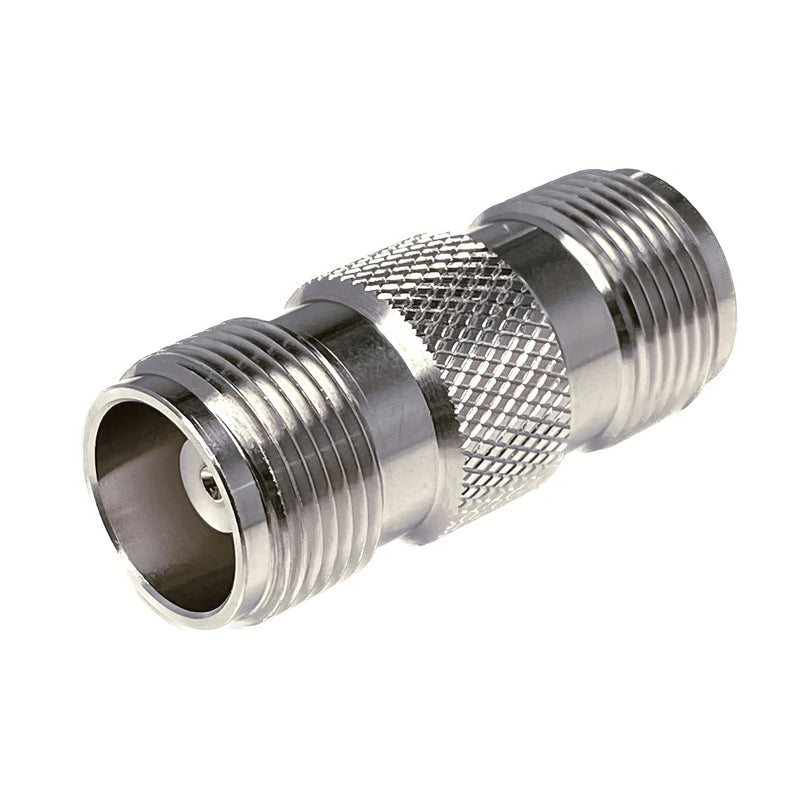

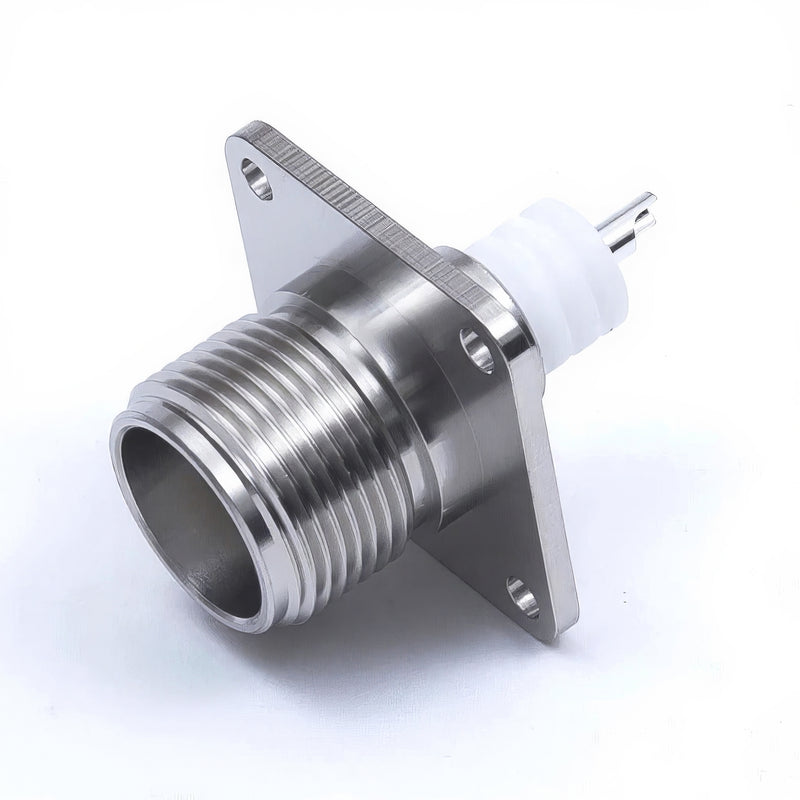

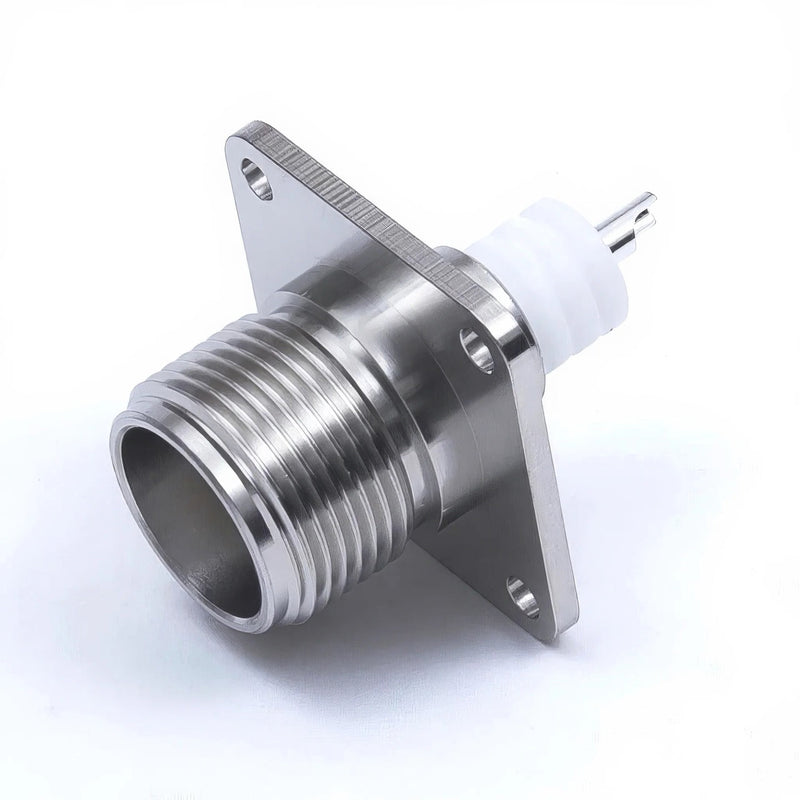

Find HN RF connectors by type and quickly navigate to the right product category.
Can't find the right HN RF connector? We're here to help.
HN vs N RF Connectors
HN and N connectors are both threaded RF connectors, but they are designed for different performance requirements.
HN connectors are larger and specifically designed for high-voltage applications, offering improved insulation and higher power handling capability. In contrast, N connectors are more compact and widely used in general RF applications.
While N connectors are suitable for standard RF systems, HN connectors are preferred in high-voltage environments where enhanced safety and performance are required.
High Voltage RF Connectors (HN, MHV, SHV)
High-voltage RF connectors are designed to safely handle elevated voltage levels in specialized applications.
- HN: Suitable for high-power and high-voltage systems, offering robust insulation and high power handling capability.
- MHV: Commonly used in moderate voltage applications where compact size and cost efficiency are important.
- SHV: Designed for higher voltage environments with enhanced safety features to prevent accidental contact.
These connectors are typically used in power supplies, test equipment, and industrial systems where stable high-voltage transmission is required.
Selecting the appropriate connector depends on voltage requirements, safety considerations, and application conditions.

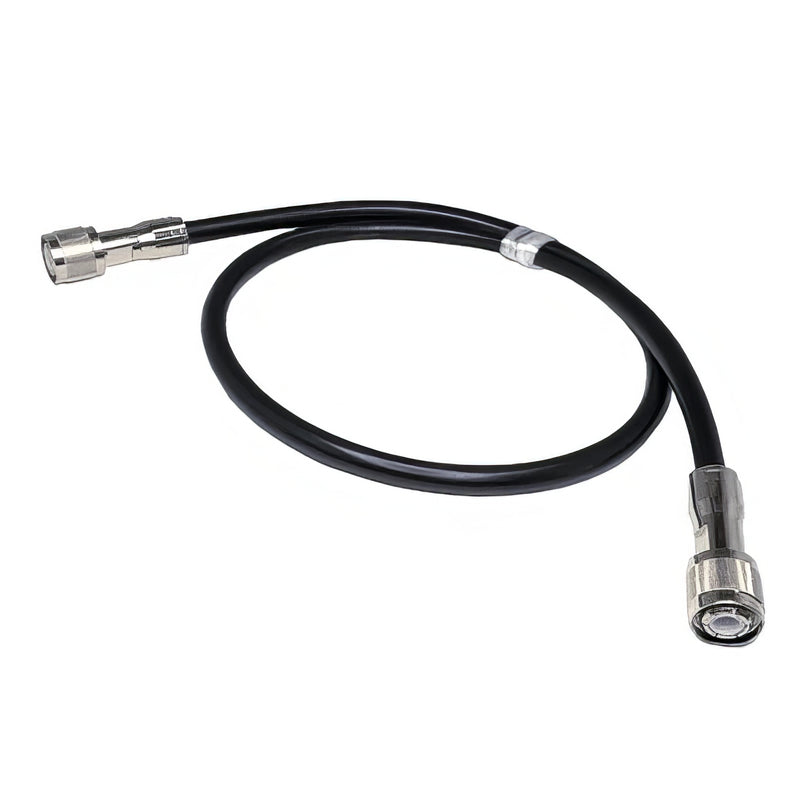

In-Stock Coaxial Cables with HN RF Connectors
HNP - HNP
RG-8/U Cable
> 0.5 m (Products in stock)
> 1.0 m (Products in stock)
> 1.5 m (Products in stock)
> 2.0 m (Products in stock)
> 2.5 m (Products in stock)
> 3.0 m (Products in stock)
> 3.5 m (Products in stock)
> 4.0 m (Products in stock)
> 4.5 m (Products in stock)
> 5.0 m (Products in stock)
> 10.0 m (Products in stock)
Even when out of stock, we can usually deliver in about 17 days. However, if components are unavailable or the order quantity is large, we will consult with you as needed.
Trivia: Compatible Cable Types
- MIL-Standard Coaxial Cables
These cables, also known as Mil-Spec, are engineered to meet rigorous US military specifications for performance and durability. They often feature the "RG" prefix, which stands for "Radio Guide," reflecting their roots in radio technology. They are critical in demanding applications like defense, aerospace, and telecommunications, where reliability is non-negotiable.
HN RF Connector Features
High Voltage Compatibility
HN RF connectors are specifically designed for high-voltage applications, with a rated voltage of up to 1.5 kV and a withstand voltage capability of up to 5 kV/min. This makes them suitable for use in demanding environments where high voltage stability is critical.
Superior Stability
Unlike Quick-Connect connectors, which are typically faster to engage, the threaded coupling design of HN connectors ensures a more secure and stable connection. This design minimizes the risk of signal loss or disconnection, offering enhanced reliability, particularly in high-vibration or high-stress conditions.
HN RF Connector Applications
HN RF connectors are coaxial connectors designed for high-voltage applications. With a rated voltage of up to 1.5 kV and the ability to withstand up to 5 kV for one minute, they excel in demanding environments. The threaded coupling provides a secure, stable connection. These connectors are ideal for instrumentation, high-voltage test equipment, airframes, and radiation detection equipment.
How to Choose HN RF Connectors
Choosing the right HN RF connector depends on voltage requirements, cable compatibility, and application conditions.
1. Confirm Voltage Requirements
HN connectors are designed for high-voltage applications. Ensure the connector meets the required voltage rating for your system.
2. Match Cable Type
Verify compatibility with the coaxial cable used in your system, including size and impedance.
3. Consider Application Environment
For high-power or high-voltage environments, select connectors with sufficient insulation and durability.
4. Check Mechanical Requirements
Ensure the connector type matches your mounting and connection needs.
Not sure which connector is right for your application? Contact us for assistance.
HN RF Connector Standards & Technical Specifications
Compatible Standards
Complies with military standard MIL-C-3643 and industry standard JIS C 5414.
Nominal Impedance
Impedance rating is 50 Ω, indicating compatibility with most standard RF equipment.
Coupling Method (Connector Interface)
Connectors securely join using threaded coupling 3/4-20UNEF-2A, 2B for stable signal transmission.
Working Voltage (Rated Voltage)
Rated for standard operating voltage of up to AC 1,500 V.
Maximum Withstanding Voltage
Safely withstands up to AC 5,000 V for one minute without electrical breakdown.
Insulation Resistance
Minimum insulation resistance of 1,000 mΩ when tested with 500 V DC, ensuring electrical safety.
Contact Resistance
Maximum contact resistance of 3 mΩ when conducting DC current of 1 A, ensuring efficient connection.
Frequency Range
Suitable for signals within frequency range from 0 to 2,000 MHz (2 GHz).
Voltage Standing Wave Ratio (V.S.W.R.)
Maintains optimal signal quality with a maximum V.S.W.R. of 1.2 within the frequency range of 0–2,000 MHz.
Note: The figures provided are typical values. For further details, please contact us.
HN RF Connector FAQs
QCan HN be mated with N connectors?
QCan HN be mated with N connectors?
Although HN connectors are a threaded coupling type, they are not compatible with N, N75 Ω, or S connectors. They cannot be mated due to the HN connector's extended insulation.
QWhat does the "HN" in HN connector signify?
QWhat does the "HN" in HN connector signify?
The name "HN" is derived from the connector's mating part, which is physically similar to that of the more common N RF connector, but it is not the same.
QWhat are the voltage ratings of HN connectors?
QWhat are the voltage ratings of HN connectors?
HN connectors are designed for high-voltage applications. They have a rated voltage of up to 1.5 kV and a withstand voltage of up to 5 kV per minute for reliability.
QAre HN connectors and N connectors interchangeable?
QAre HN connectors and N connectors interchangeable?
No, HN connectors and N connectors are not interchangeable. While they may appear similar, they have different internal dimensions and therefore cannot be properly mated together.
QWhat type of coupling mechanism do HN connectors use?
QWhat type of coupling mechanism do HN connectors use?
HN connectors feature a threaded coupling mechanism. This design ensures a very secure and stable connection, which is especially important in high-vibration environments.
QWhat are some typical applications for HN connectors?
QWhat are some typical applications for HN connectors?
HN connectors are commonly used in instrumentation, high-voltage test equipment, airframe electronics, and radiation detection systems where high performance is essential.
QWhy can't HN connectors mate with N-type connectors?
QWhy can't HN connectors mate with N-type connectors?
The primary reason HN connectors cannot mate with N connectors is due to the extended insulator within the HN connector design, which prevents a proper and safe physical connection.
QAre HN connectors suitable for low-power applications?
QAre HN connectors suitable for low-power applications?
While HN connectors can be used in low-power scenarios, their design for high-voltage applications makes them a specialized component and not typically cost-effective for general use.
QWhat makes the threaded coupling of HN connectors beneficial?
QWhat makes the threaded coupling of HN connectors beneficial?
The threaded coupling of HN connectors provides a very secure and robust physical connection, minimizing the risk of any accidental disconnection as a result of shock or vibration.
QAre HN connectors a common type of RF connector?
QAre HN connectors a common type of RF connector?
HN connectors are considered a specialized type of radio frequency connector. They are not as common as other types like BNC or N connectors due to their specific high-voltage design.
QWhat industries typically utilize HN connectors?
QWhat industries typically utilize HN connectors?
Industries that require robust, high-voltage connections, such as aerospace, defense, and scientific research, are the primary users of HN radio frequency connectors in their systems.
QHow can I order HN RF connectors, and what support do you offer?
QHow can I order HN RF connectors, and what support do you offer?
Ordering is simple—you can purchase our HN RF connectors directly on our website or contact our sales team for assistance. We also provide comprehensive technical support, including datasheets, CAD models, and application notes, to help you select the ideal connector for your project.
