A Guide to Semi-Flexible RF Cables: Types, Structure, and Applications
What are Semi-Flexible RF Cables?
Semi-flexible cables are engineered for applications operating in frequency bands from 18 GHz to 40 GHz. Their shape-memory characteristic allows them to be bent and formed while maintaining high shielding effectiveness and low signal loss. These cables are available in three diameters, with or without an outer jacket, and can be terminated with a variety of high-frequency connectors, such as SMA, N, 2.92 mm (K), and SMP.
As the applicable connectors vary by cable model, please consult the detailed product page for complete specifications.
0.141 in (No Jacket) SF-014
The SF-014 is a 0.141-inch jacketless Semi-Flexible Cable Assembly, engineered for high-frequency RF and microwave applications up to 30 GHz.
With a precise 50Ω impedance and an excellent VSWR of 1.1 (max, typical), it ensures minimal signal reflection and high transmission fidelity. The low attenuation of 0.37 dB/m at 1 GHz preserves signal strength over distance, while the wide temperature range (-35 to +125°C) supports stable operation in demanding environments.

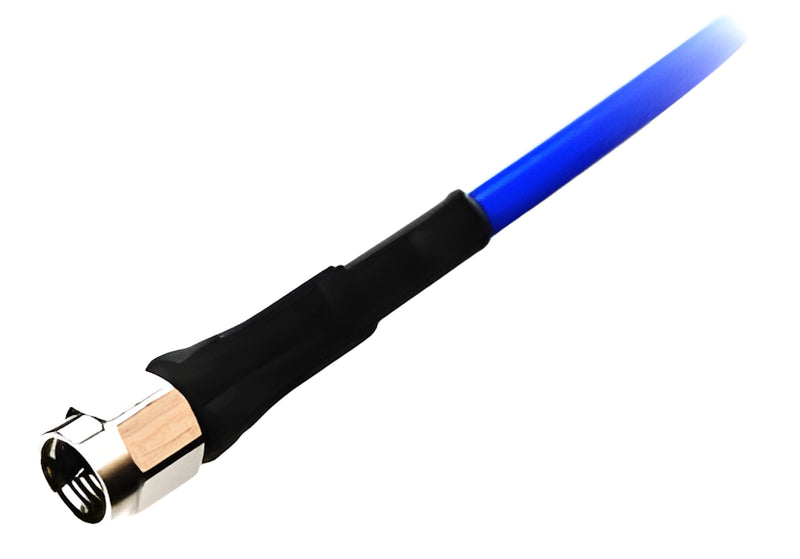

0.141 in (With Jacket) SF-039
The SF-039 is a 0.141-inch Semi-Flexible Cable Assembly with a protective jacket, optimized for compact, high-frequency RF circuits.
With a stable 50Ω impedance and reliable operation up to 15 GHz, it ensures consistent signal integrity. The low attenuation of 0.43 dB/m at 1 GHz maintains signal strength over distance, and the VSWR of 1.2 (max, typical) guarantees minimal reflection. Its wide temperature tolerance (-35 to +125°C) supports performance in demanding environments.

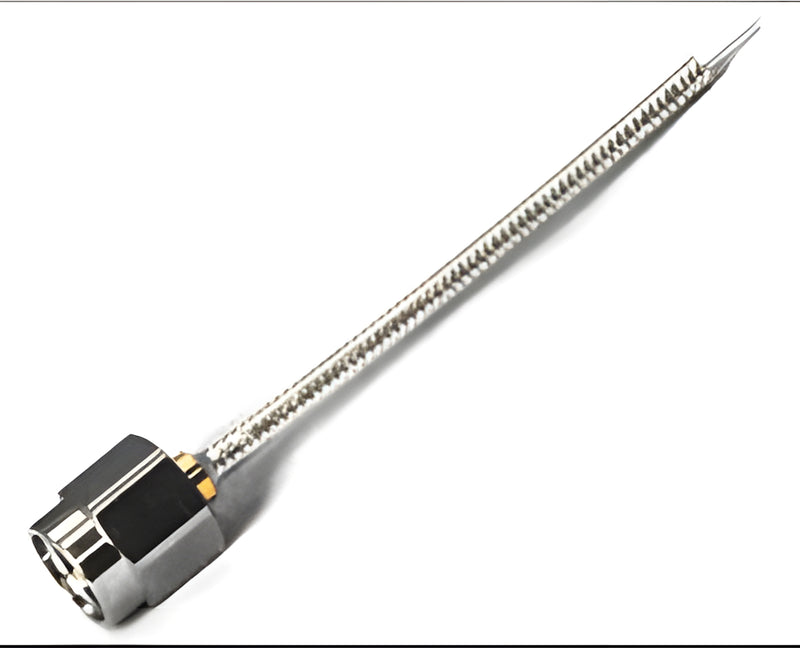

0.085 in (No Jacket) SF-021
The SF-021 is a 0.085-inch jacketless Semi-Flexible Cable Assembly designed for advanced high-frequency applications up to 40 GHz.
Its 50Ω impedance ensures low-loss signal transmission, with an attenuation of 0.67 dB/m at 1 GHz to preserve signal quality. The excellent VSWR of 1.2 (max, typical) maintains signal fidelity, and temperature tolerance from -35 to +125°C ensures reliable performance in demanding RF and microwave setups.
0.085 in (With Jacket) SF-030
The SF-030 is a 0.085-inch Semi-Flexible Cable Assembly featuring a protective jacket, engineered for high-frequency applications up to 26.5 GHz.
It provides a precise 50Ω impedance, a low VSWR of 1.2 (max, typical), and attenuation of 0.72 dB/m at 1 GHz, ensuring minimal signal loss. Temperature tolerance from -35 to +125°C and robust construction make it ideal for RF and microwave circuits in harsh environments.

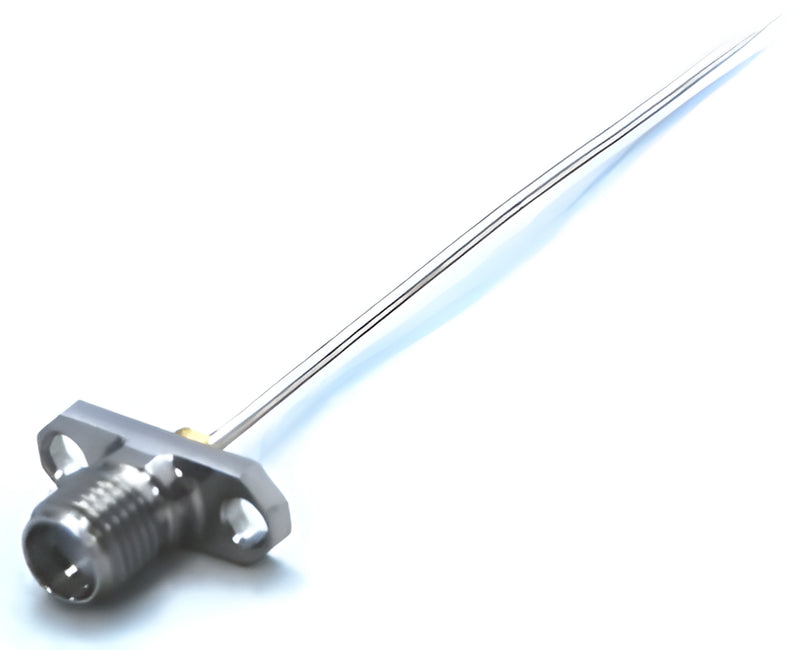

0.047 in (No Jacket) SF-050
The SF-050 is a 0.047-inch jacketless Semi-Flexible Cable Assembly, perfect for ultra-compact high-frequency circuits operating up to 26.5 GHz.
Its 50Ω impedance, VSWR of 1.2 (max, typical), and attenuation of 1.20 dB/m at 1 GHz ensure minimal signal degradation in tight layouts. The wide operating temperature range (-35 to +125°C) provides stability in demanding applications.

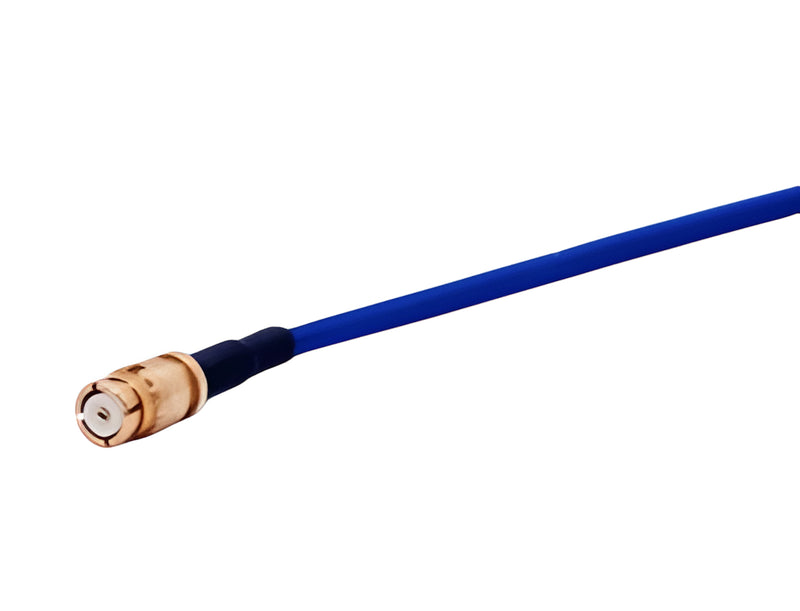

0.047 in (With Jacket) SF-051
The SF-051 is a 0.047-inch Semi-Flexible Cable Assembly with a protective jacket, designed for compact high-frequency applications up to 26.5 GHz.
Maintaining 50Ω impedance, excellent VSWR of 1.2 (max, typical), and attenuation of 1.20 dB/m at 1 GHz, it delivers consistent performance with minimal signal loss. The cable withstands temperatures from -35 to +125°C, making it suitable for harsh RF and microwave environments.
Semi-Flexible RF Cable FAQs
QWhat frequency range do Tyclon semi-flexible cables cover?
QWhat frequency range do Tyclon semi-flexible cables cover?
Tyclon semi-flexible cables are designed for high-frequency use, supporting a wide range from 18 GHz up to 40 GHz, depending on the selected cable type.
QWhat makes shape memory important in these cables?
QWhat makes shape memory important in these cables?
Shape memory allows the cable to be bent into position while maintaining form, making installation easier while still delivering excellent electrical stability and performance.
QWhat shielding performance do these cables provide?
QWhat shielding performance do these cables provide?
Semi-flexible cables provide high shielding effectiveness, ensuring stable signal transmission with minimal interference, even in sensitive high-frequency applications.
QHow low is the signal loss in semi-flexible cables?
QHow low is the signal loss in semi-flexible cables?
These cables deliver low attenuation across frequencies, supporting high-performance designs that require consistent signal integrity and minimal energy loss over distance.
QWhat diameter sizes are available?
QWhat diameter sizes are available?
Tyclon semi-flexible cables are available in three standard thicknesses, allowing engineers to select the right balance between flexibility, loss, and mechanical durability.
QCan cables be ordered with or without an outer sheath?
QCan cables be ordered with or without an outer sheath?
Yes. Customers can choose versions with or without an outer sheath, offering design flexibility to balance protection, size, and ease of integration in various environments.
QWhat types of connectors can be used with these cables?
QWhat types of connectors can be used with these cables?
The cables can be terminated with multiple connector options including SMA, N, 2.92 millimeter, SMP, and other compact types suitable for high-frequency applications.
QDo connector options vary by cable type?
QDo connector options vary by cable type?
Yes. Applicable connector types depend on the specific cable diameter and design, so engineers should confirm details on the technical page before selecting components.
QWhat is the operating temperature range of these cables?
QWhat is the operating temperature range of these cables?
Tyclon semi-flexible cables can operate between minus 35 degrees Celsius and plus 125 degrees Celsius, ensuring reliable performance in demanding thermal conditions.
QWhat industries use semi-flexible cables?
QWhat industries use semi-flexible cables?
These cables are widely used in telecommunications, measurement equipment, aerospace, and other high-frequency fields that require precision, reliability, and low signal loss.
QHow can I order semi-flexible RF cables, and what support do you offer?
QHow can I order semi-flexible RF cables, and what support do you offer?
Ordering is simple—you can purchase our Semi-Flexible RF Cables directly on our website or contact our sales team for assistance. We also provide full technical support, including datasheets, CAD models, and application notes, to help you pick the perfect connector for your project.
