What are Waterproof Coaxial Connectors?

This product is suitable for both indoor and outdoor use, including environments near water, in wind and rain, or in high humidity. Waterproofing specifications vary by product.
The specification sheet for each product details which of the waterproofing specifications of the following should be adopted.

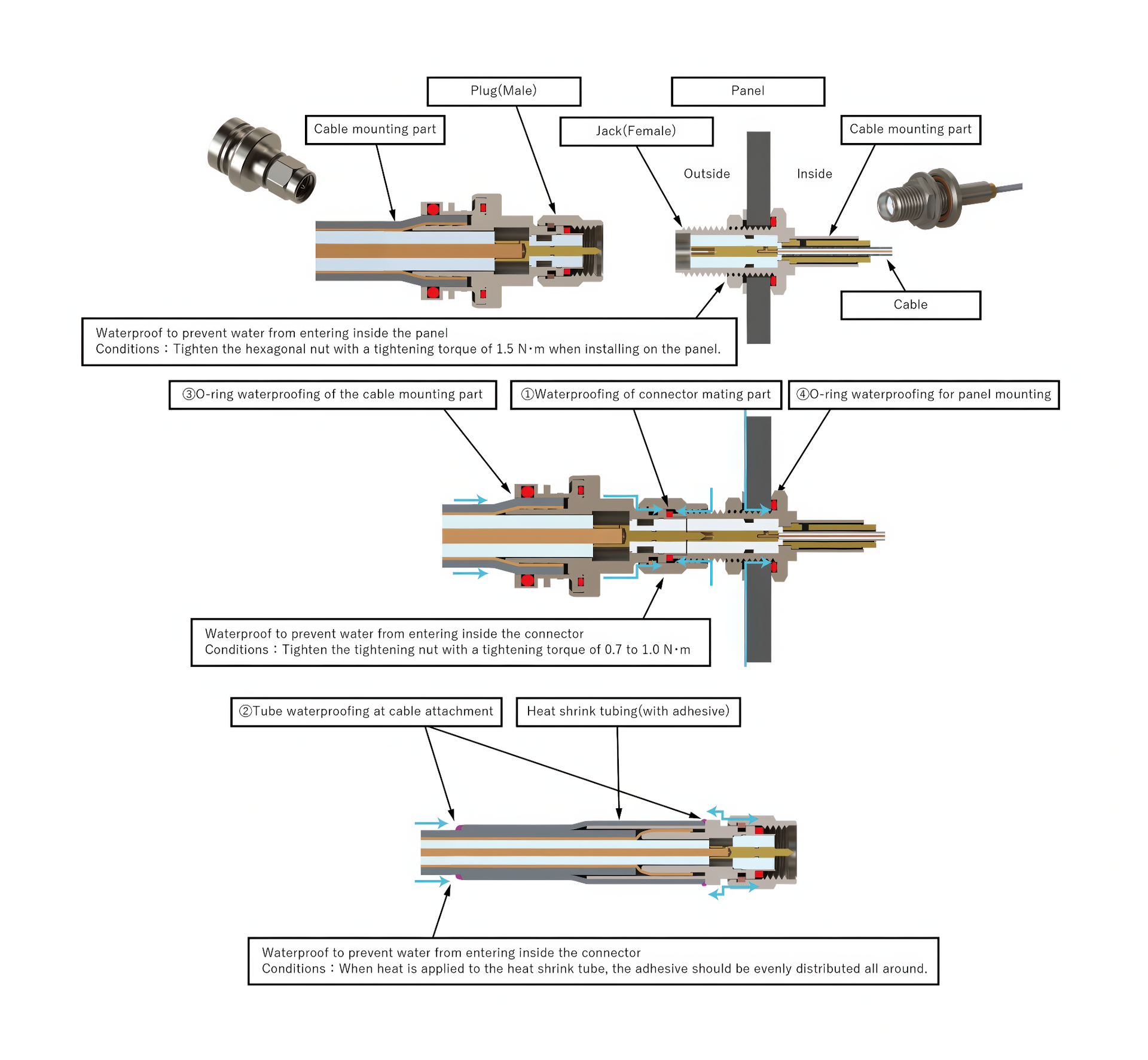

1. Waterproofing of Connector Mating Part
The plug side is designed to be waterproof when mated with the jack.

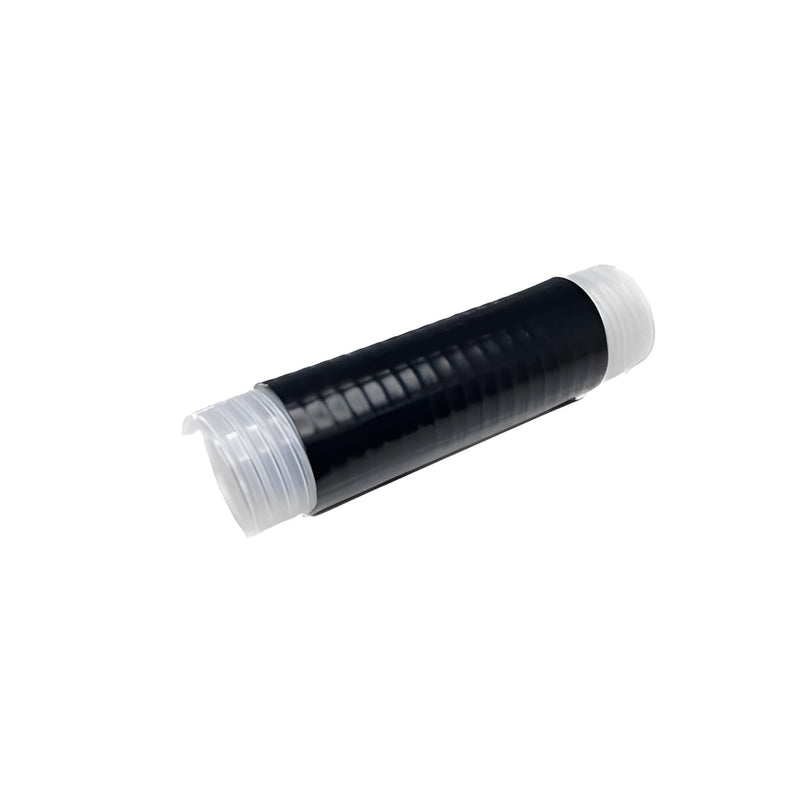

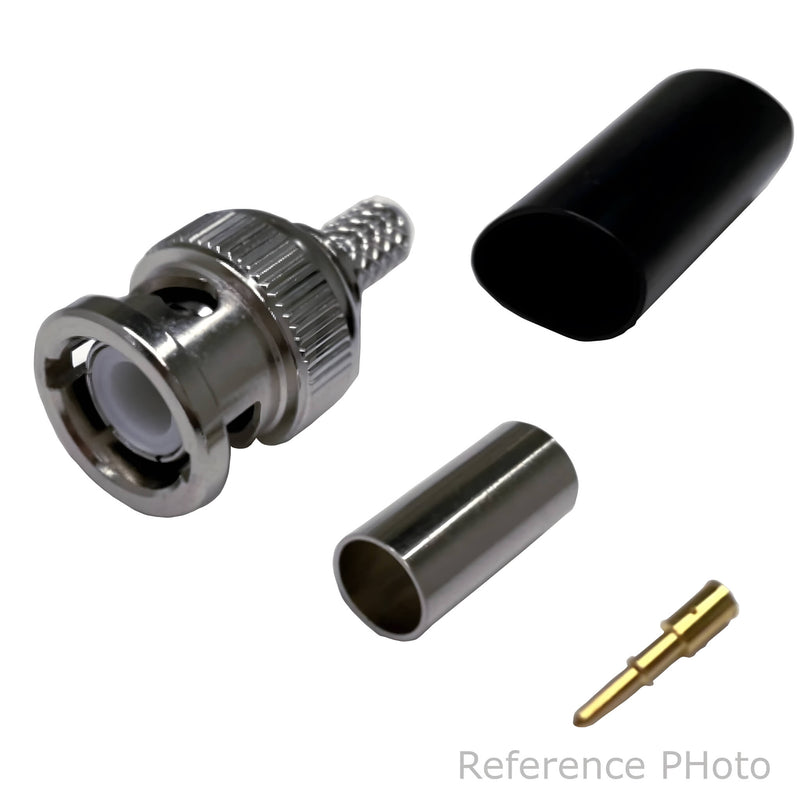

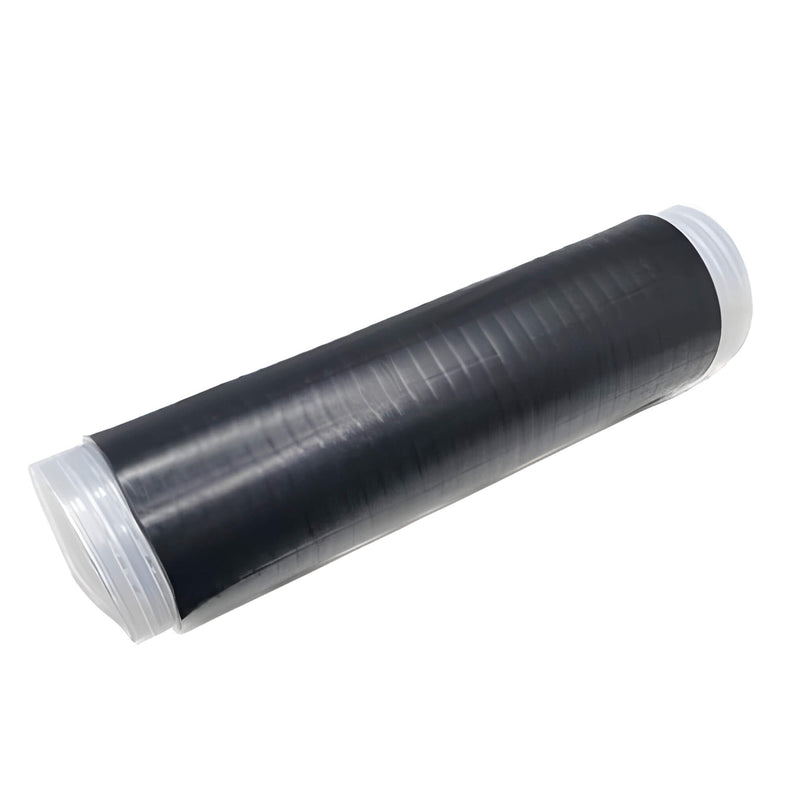

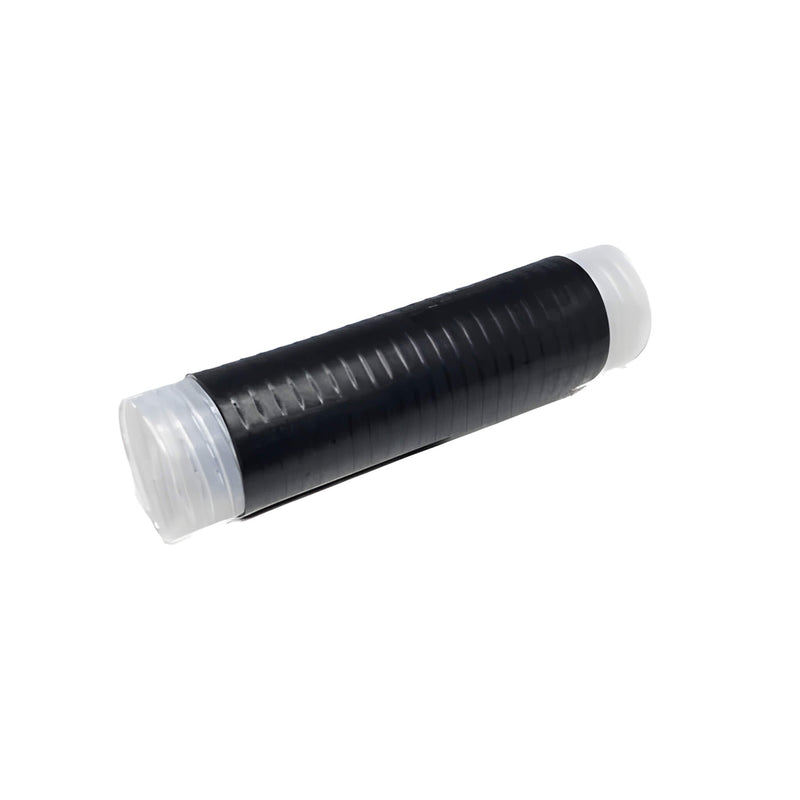

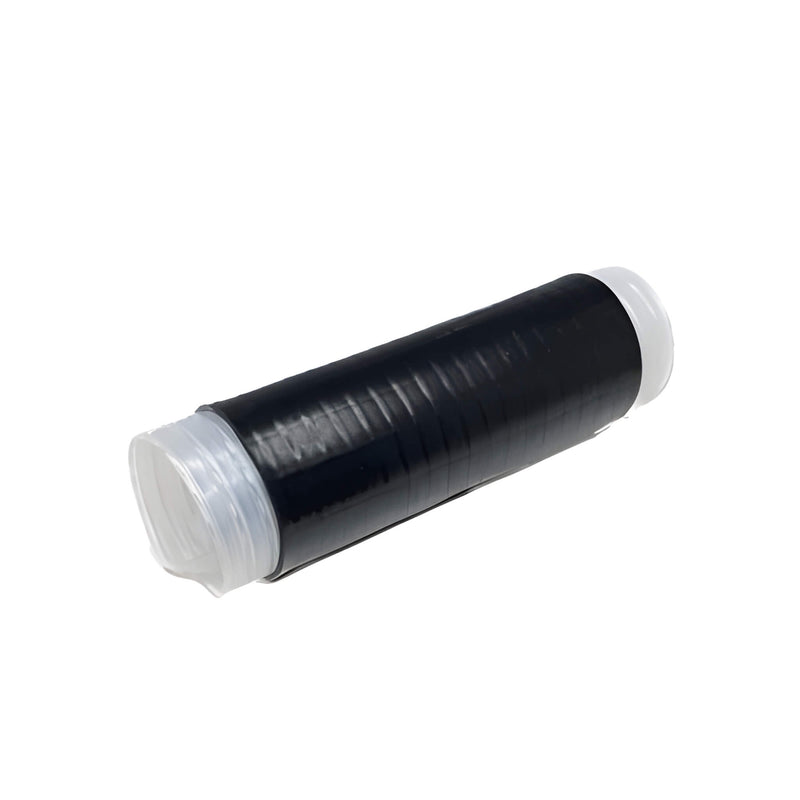

2. Tube Waterproofing at Cable Attachment
Using the included heat-shrinkable tube makes the cable attachment side waterproof.
3. O-Ring Waterproofing of Cable Mounting Part
An internal O-ring seals the cable attachment part for waterproof protection.

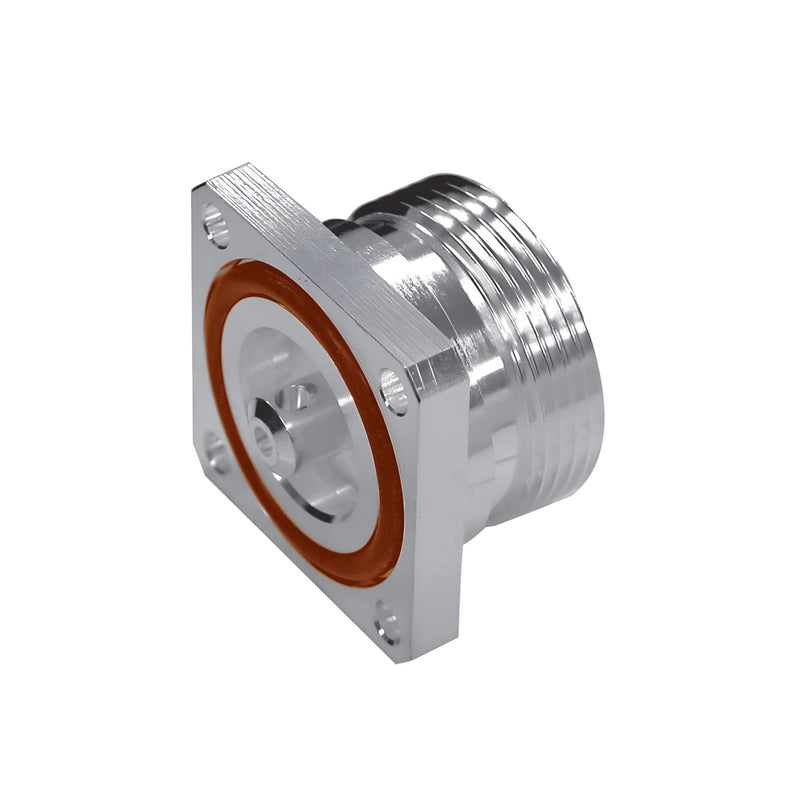

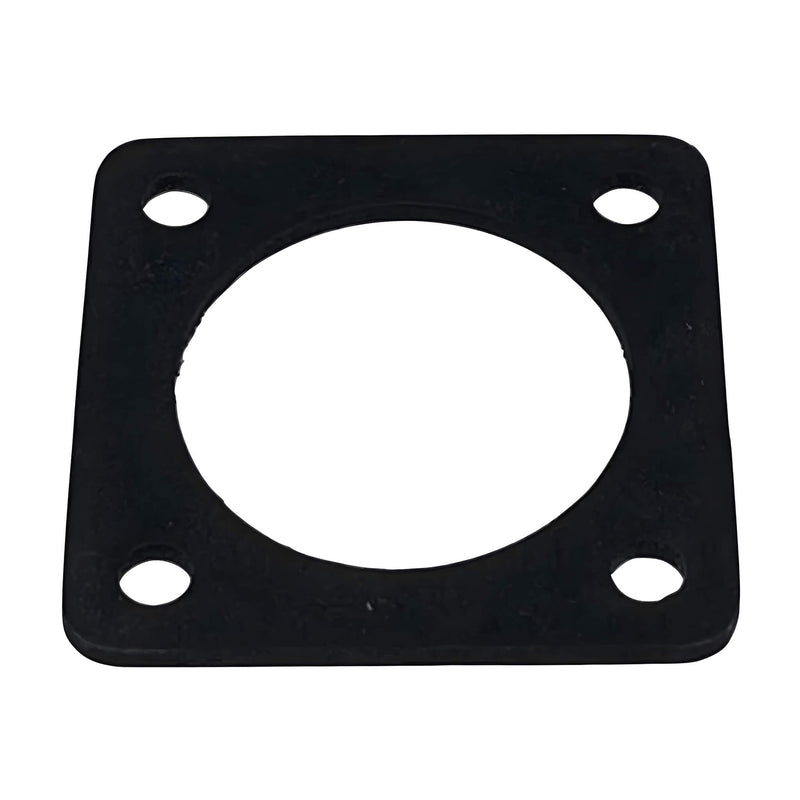

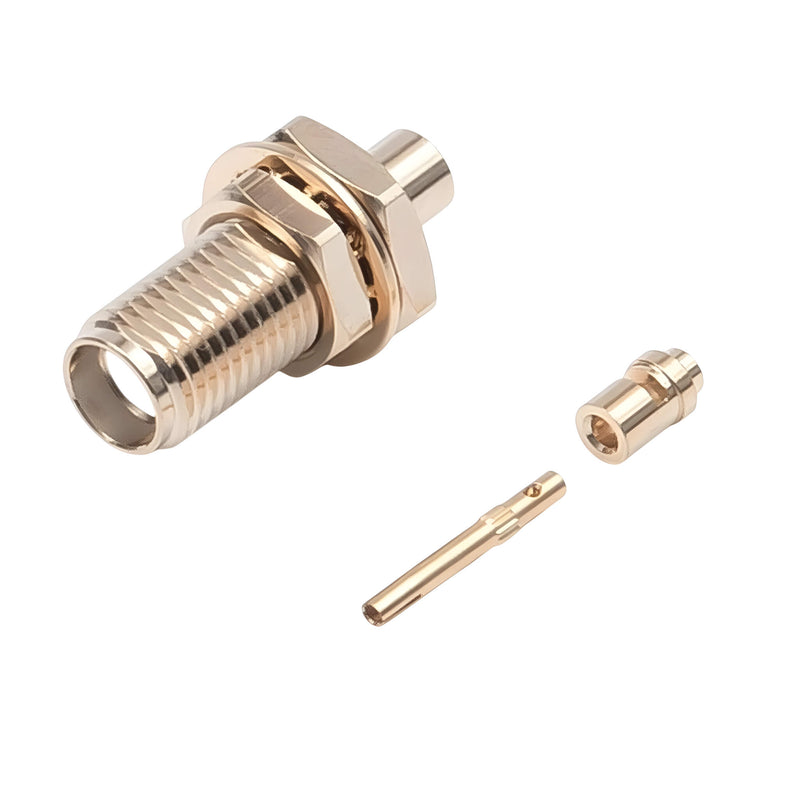

4. O-Ring Waterproofing for Panel Mounting
Used in bulkhead-type connectors, the O-ring seals the connector to the panel or housing.

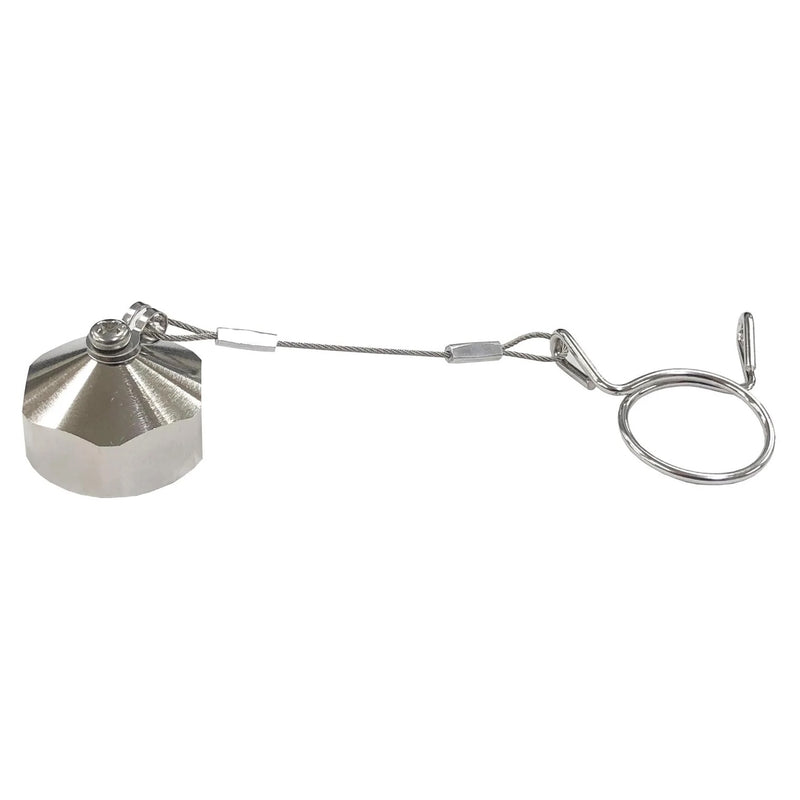

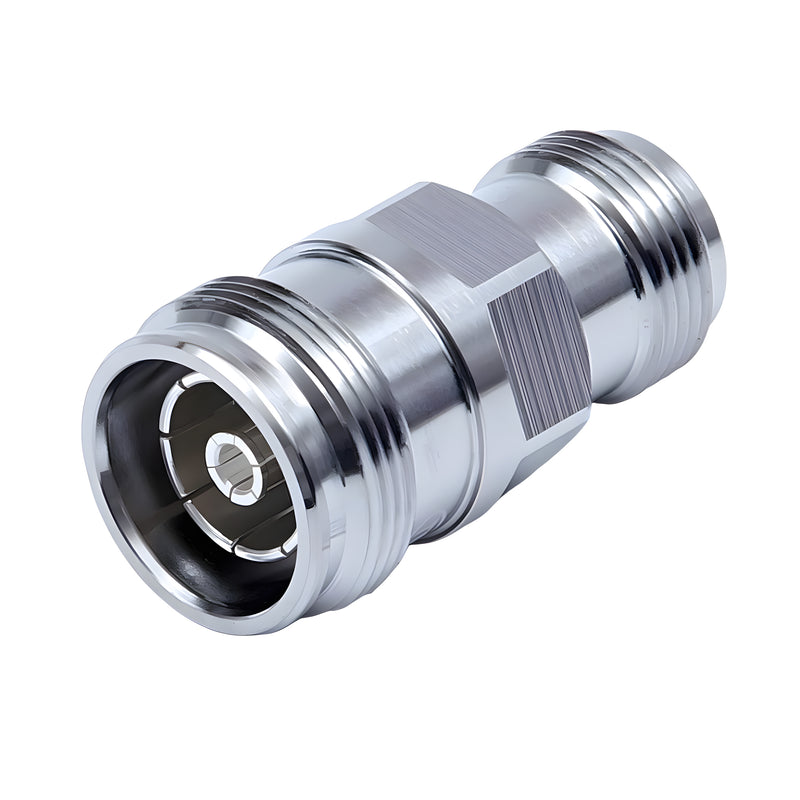

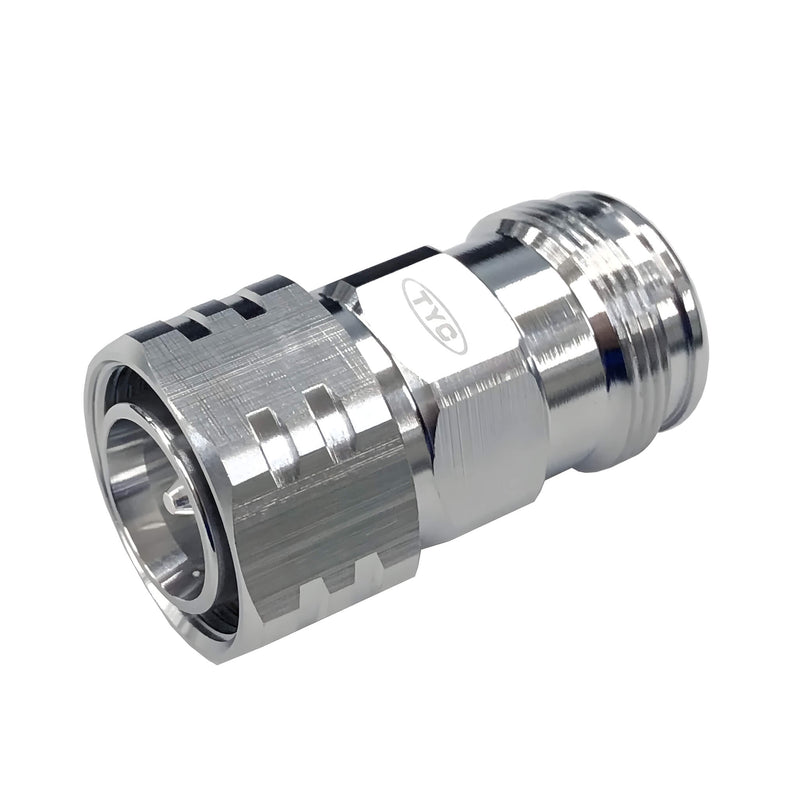

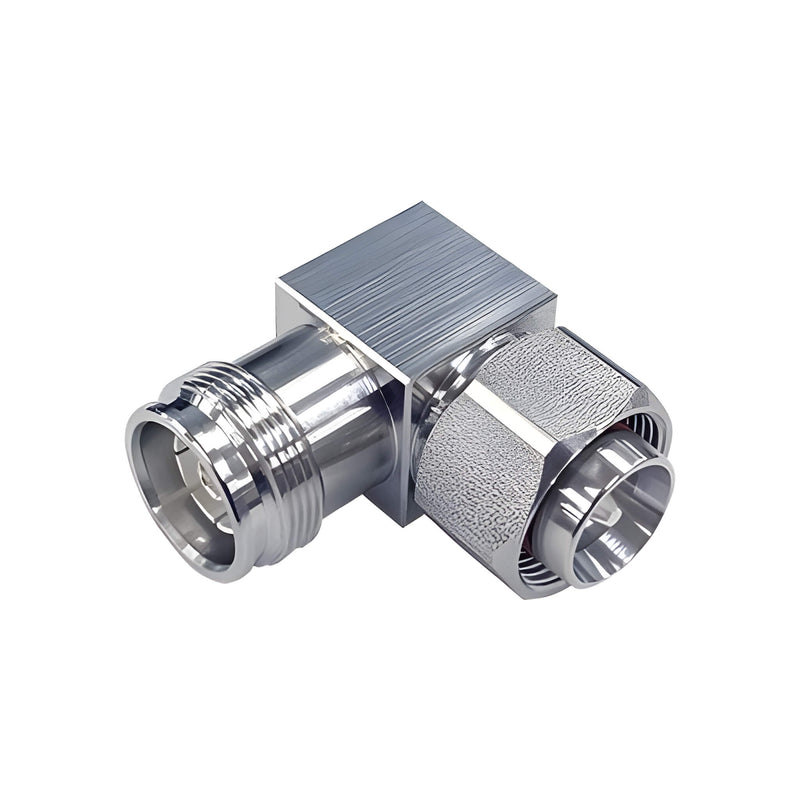

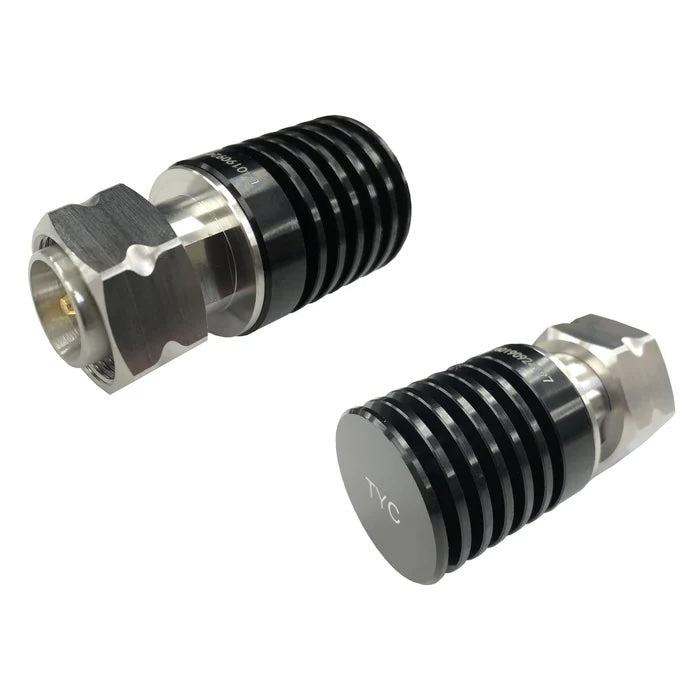

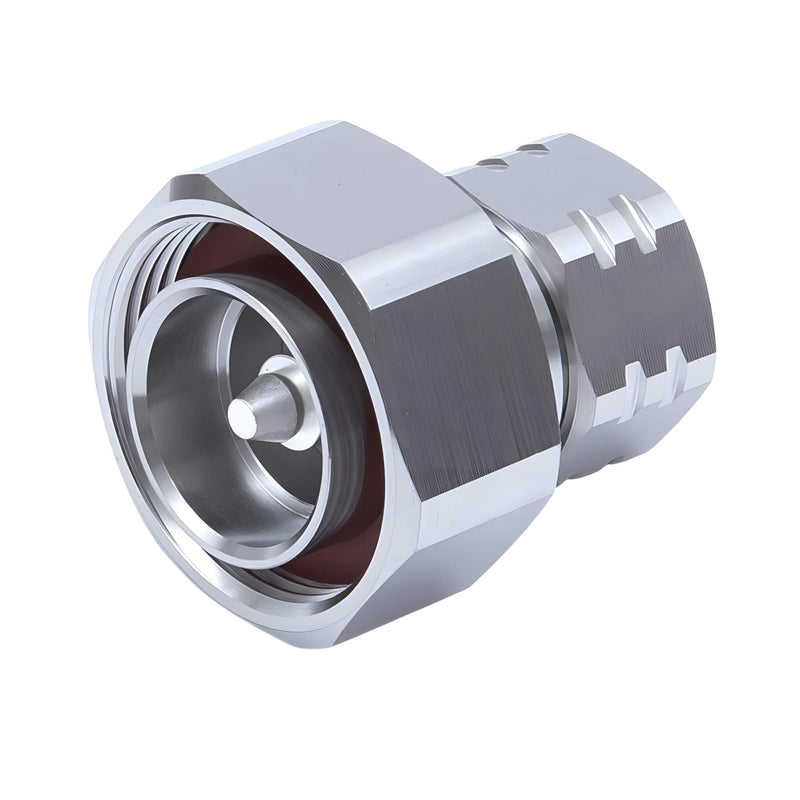

4.3/10 Din

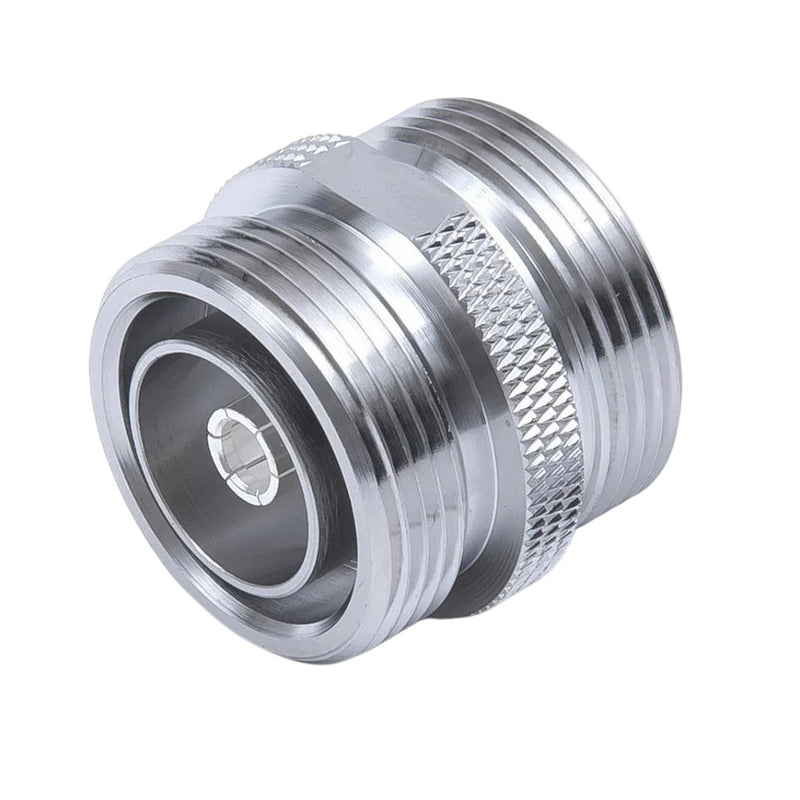

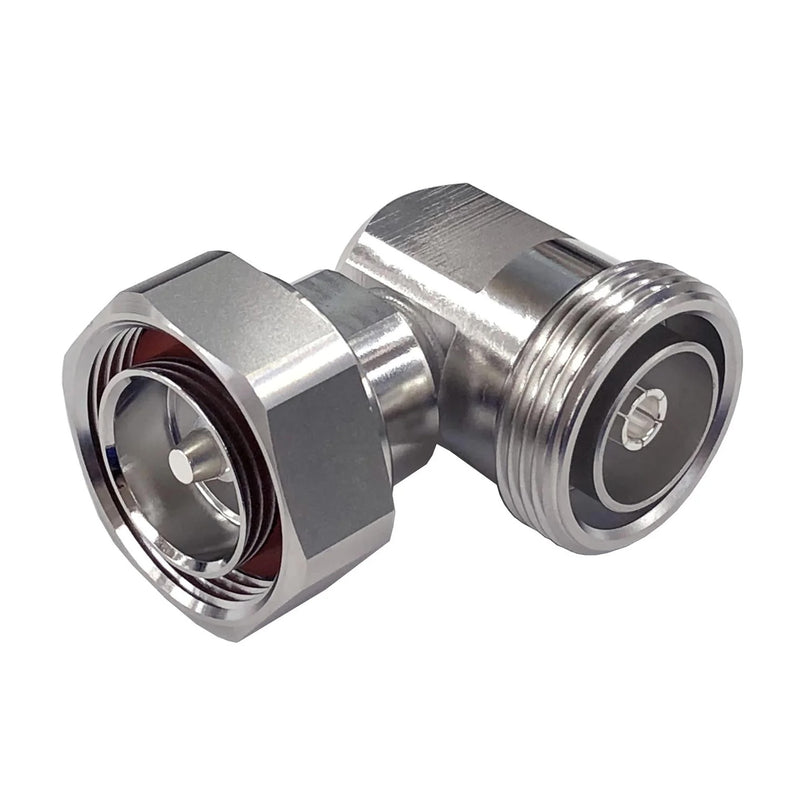

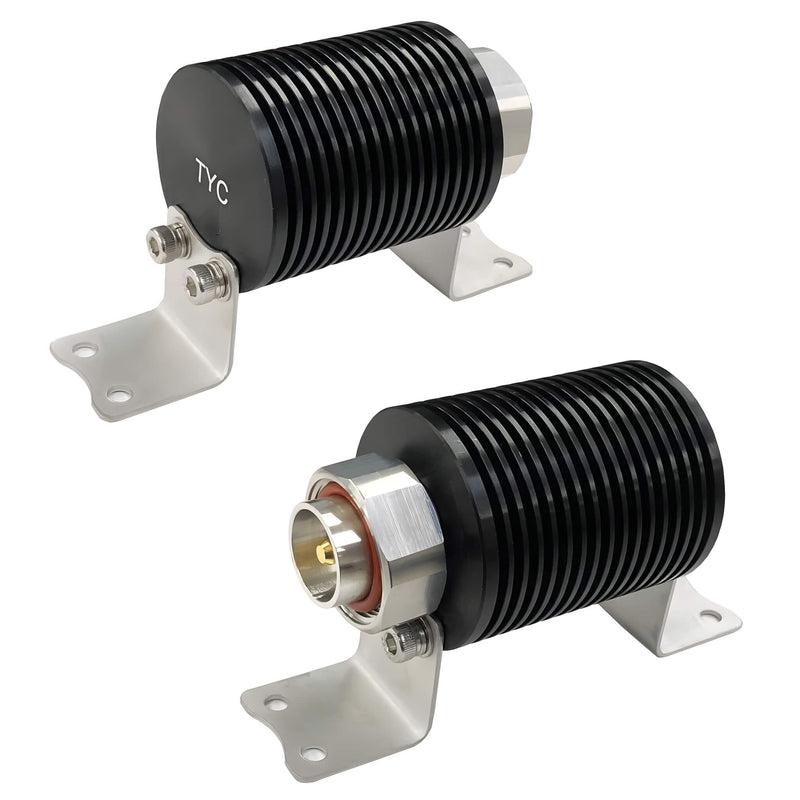

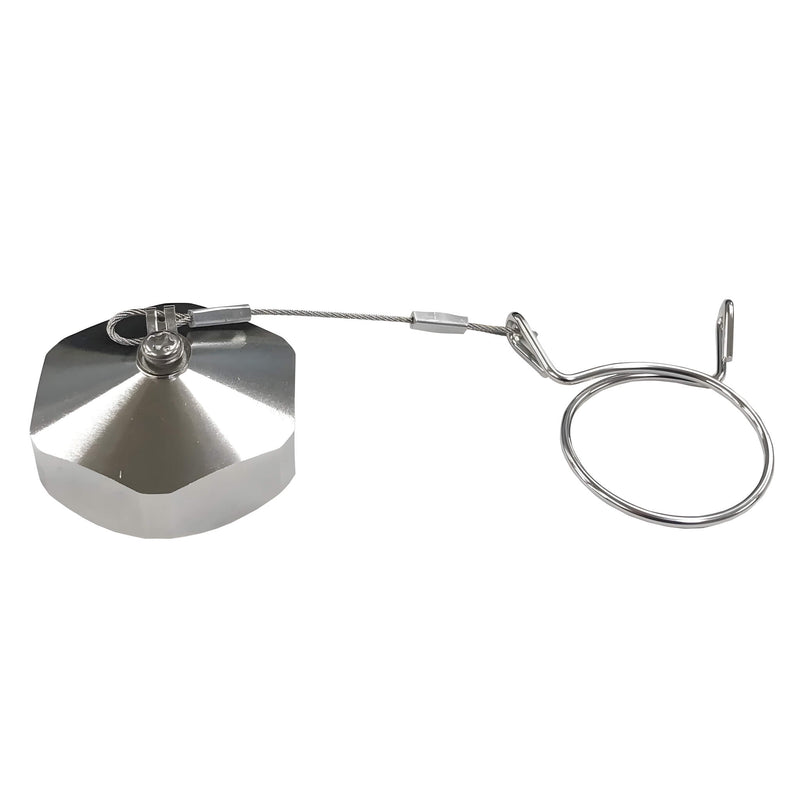

7/16 Din

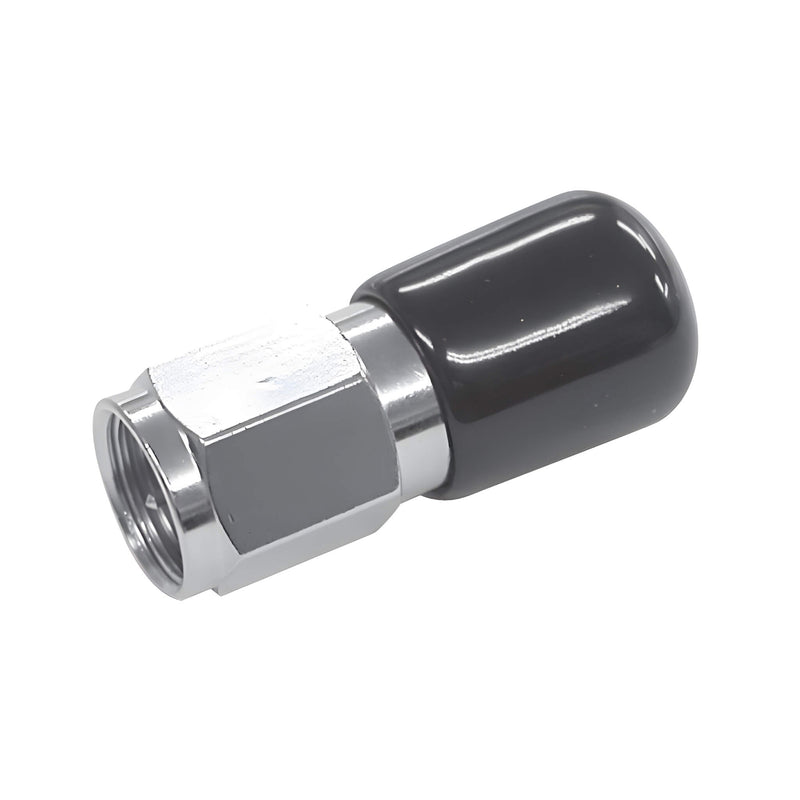

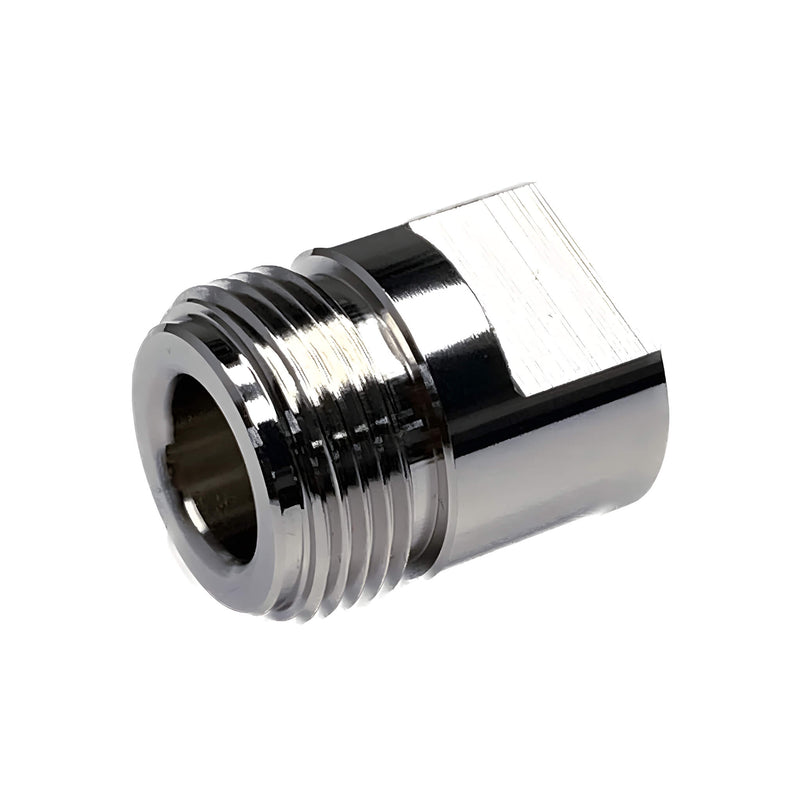

BNC / F / M / MQ

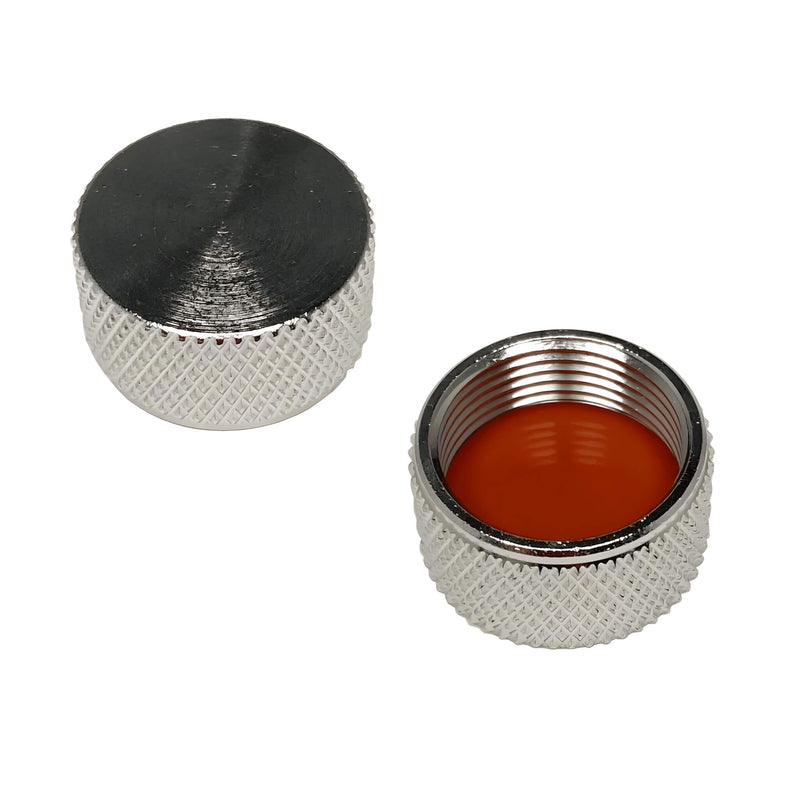

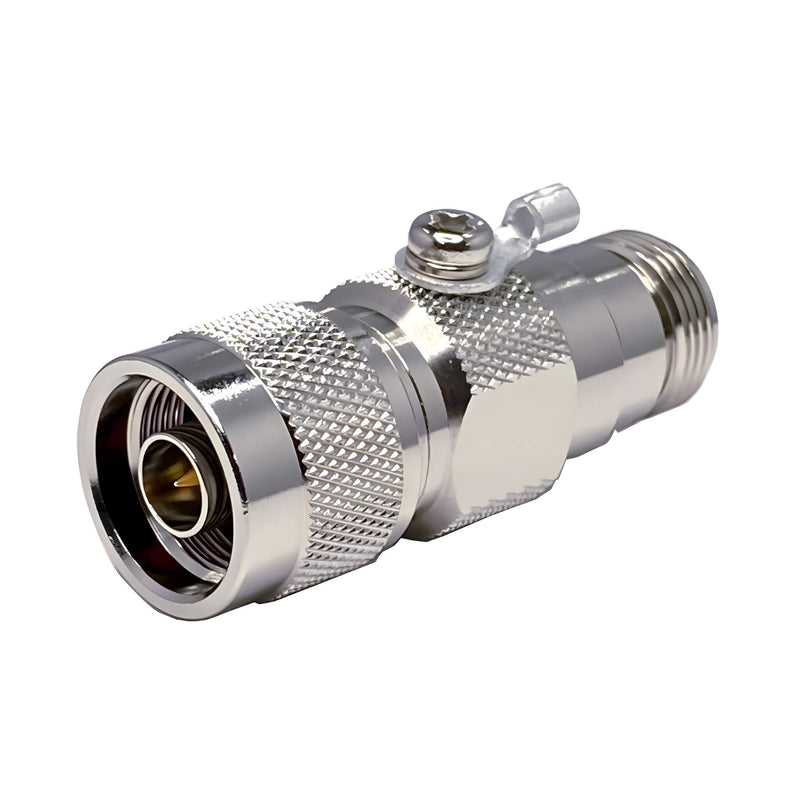

N

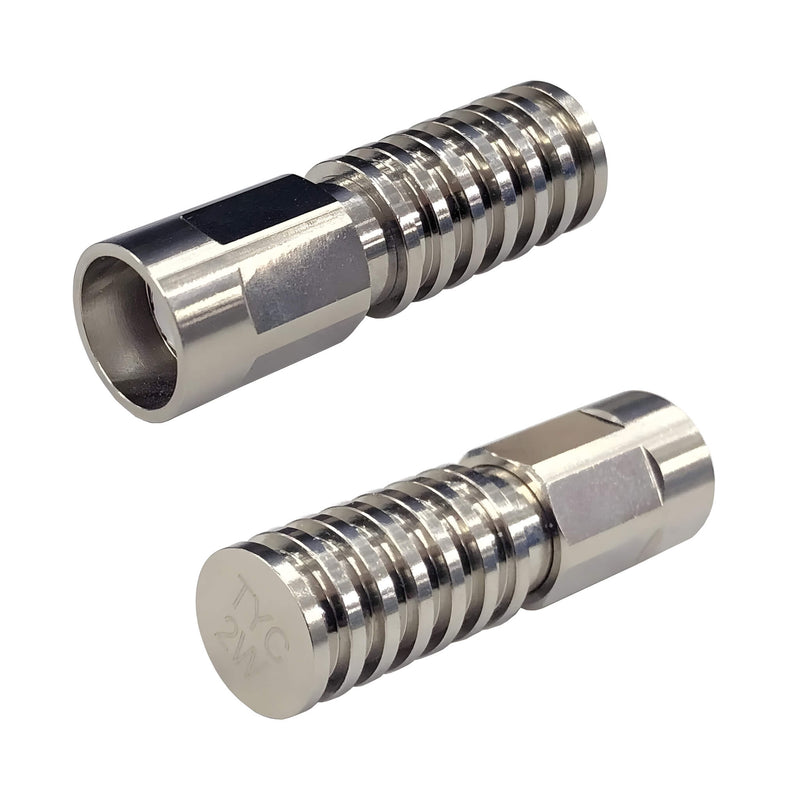

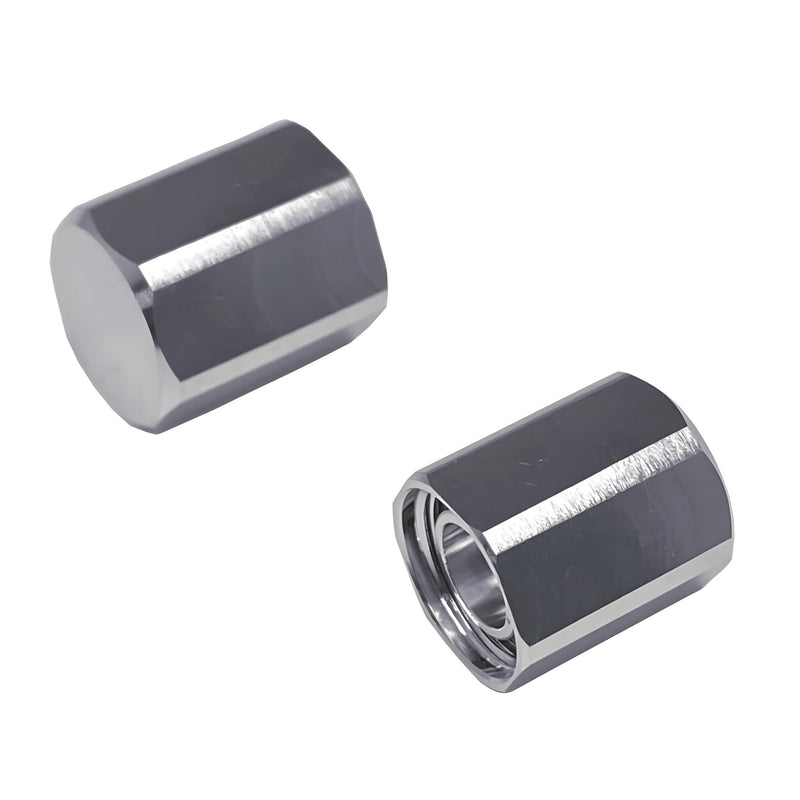

NXT
S

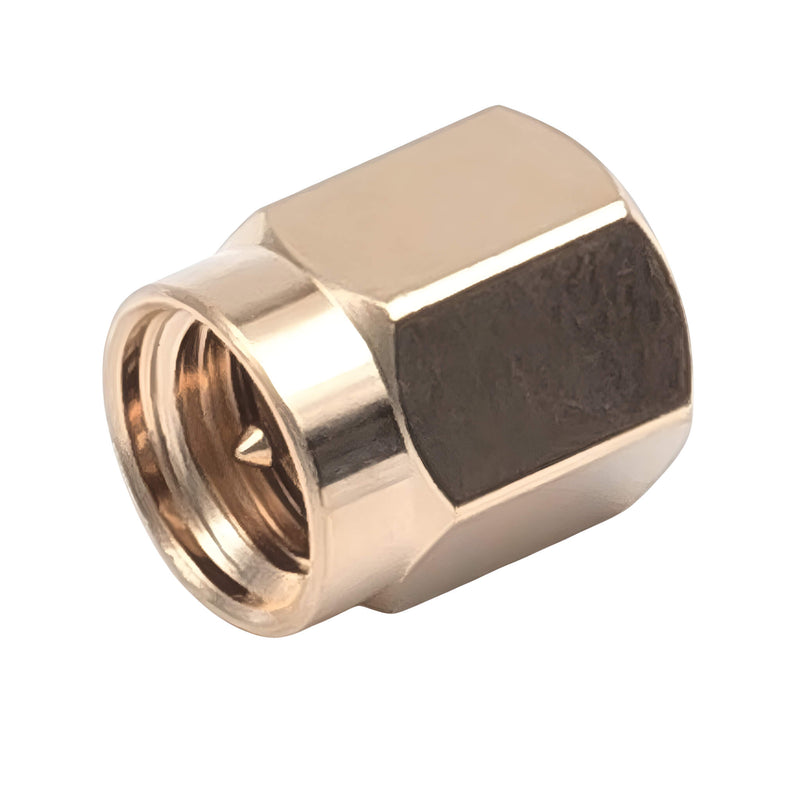

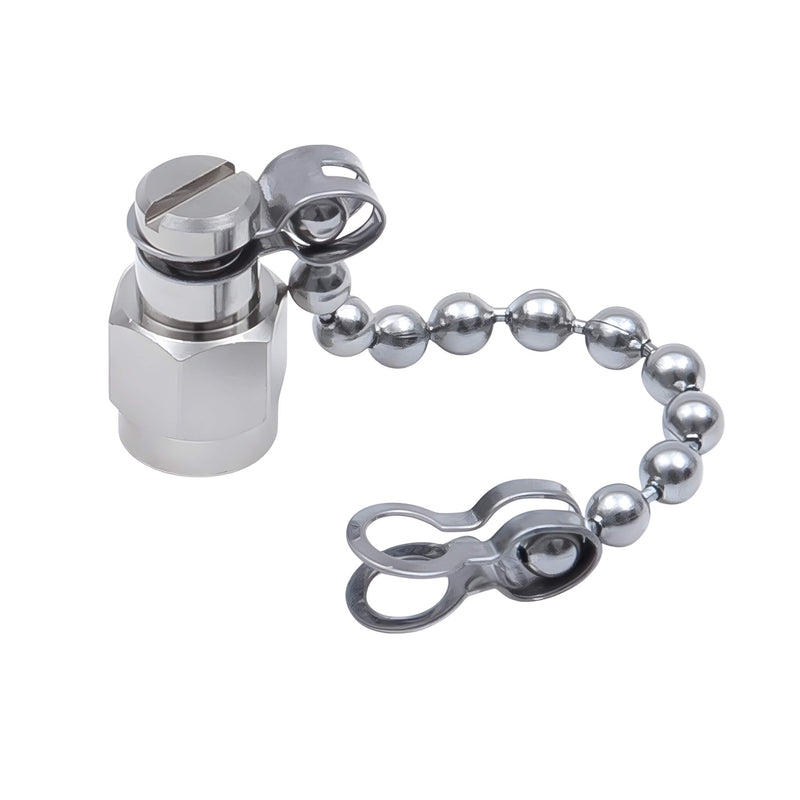

SMA
Understanding IP Waterproof Ratings
The Ingress Protection (IP) Code is an international standard (IEC 60529) used to classify the degree of pr
otection an electrical enclosure provides against the intrusion of foreign objects (like dust and dirt) and moisture.
The rating is typically expressed in the format `IP##`. The first digit indicates the level of protection against solid particles, and the second digit indicates the level of protection against liquids.
Our Product Ratings
Our products use the format IPX□, for example, IPX7.
- ・The 'X' indicates that the product has not been submitted for a formal dust-ingress protection rating.
- ・The second digit (□) specifies the exact level of liquid or water ingress protection according to the scale below.
Many of our components are rated IPX7, signifying robust protection against water immersion, making them suitable for reliable performance in harsh or wet environments.
Waterproof Protection Levels (IPX Code)
IPX0
Not protected against water ingress.
IPX1
Unaffected by vertical water drips
IPX2
Unaffected by drips within 15° of vertical
IPX3
Unaffected by drips within 60° of vertical.
IPX4
Unaffected by splashing from any direction.
IPX5
Unaffected by water jets from any direction.
IPX6
Unaffected by powerful water jets from any direction.
IPX7
No water ingress when submerged at specified pressure and time.
IPX8
No water ingress during continuous submersion.
Waterproof Coaxial Connector FAQs
QWhat does IP in IP code stand for?
QWhat does IP in IP code stand for?
IP stands for International Protection, which is a standardized notation used worldwide to describe the waterproof performance of electrical and electronic devices.
QHow many IPX waterproof levels are there?
QHow many IPX waterproof levels are there?
There are nine levels, ranging from IPX0 to IPX8, each defining increasing protection against water ingress under specified test conditions.
QWhat conditions define IPX7?
QWhat conditions define IPX7?
IPX7 ensures no water enters a device when submerged under specified pressure for a defined time, maintaining its internal integrity.
QWhich IP code is most common in Tyclon products?
QWhich IP code is most common in Tyclon products?
Many Tyclon waterproof coaxial connectors and assemblies are rated IPX7, ensuring reliable protection even when submerged in water.
QHow is IP rating relevant for coaxial connectors?
QHow is IP rating relevant for coaxial connectors?
IP ratings indicate how well connectors resist water ingress in real-world environments, with IPX7 ensuring water tightness and signal integrity.
QCan Tyclon connectors be used in outdoor environments?
QCan Tyclon connectors be used in outdoor environments?
Yes, Tyclon waterproof connectors are designed for reliable use in outdoor settings exposed to moisture, rain, wind, and high humidity.
QWhat makes Tyclon connectors waterproof?
QWhat makes Tyclon connectors waterproof?
Waterproofing is achieved through features such as O-rings, heat-shrinkable tubes, and sealing structures that protect cable and mating interfaces.
QAre waterproof features standard on all Tyclon products?
QAre waterproof features standard on all Tyclon products?
No, waterproof capabilities are a specialized feature available only on products explicitly identified with a "Waterproof" tag. For these designated products, you can find the specific waterproof rating, such as IPX7, on their individual specification sheets.
QHow is cable waterproofing achieved on Tyclon connectors?
QHow is cable waterproofing achieved on Tyclon connectors?
Waterproofing on the cable side is achieved in one of two ways, depending on the connector model: either with an included heat-shrink tube that covers the connection, or through an internal O-ring that creates a seal within the connector itself.
QWhere can I find waterproofing details for a specific connector?
QWhere can I find waterproofing details for a specific connector?
Detailed waterproofing information is provided in each product’s technical specification sheet, including the waterproofing method used.
QHow can I order Waterproof Coaxial Connectors, and what support do you offer?
QHow can I order Waterproof Coaxial Connectors, and what support do you offer?
Ordering is simple—you can purchase our Waterproof Coaxial Connectors directly on our website or contact our sales team for assistance. We also provide full technical support, including datasheets, CAD models, and application notes, to help you pick the perfect connector for your project.
