SMA vs. SMB Connectors: Specs, Coupling, and How to Choose for Your RF Design

The SMA connector is a coaxial RF connector that is the industry standard for high-performance microwave applications. Its defining feature is a secure threaded coupling, which provides the exceptional durability required for precision test instruments, microwave applications, and any RF assembly that must withstand moderate vibration while maintaining stable signal transmission.

Key specifications for a standard SMA connector:

- Coupling: Threaded coupling (1/4-36UNS-2A, 2B threads)
- Impedance: 50 Ω
- Frequency range: Suitable for 0 to 12 GHz; standard product lineups guarantee reliable performance from DC up to 18 GHz, with specialized cables and connectors certified for use up to 26.5 GHz
- Hex nut: 5/16 inch (7.9 mm) across opposite flats
- Working voltage: Up to 500 V
- Standards: MIL-C-3901, IEC 60169-15 (Global), and JEITA RC-5235

SMA connectors dominate in embedded wireless LAN modules, mobile communication base stations, 5G test setups, GPS systems, and precision test and measurement equipment. Precision variants — 3.5 mm and 2.92 mm (K) connectors — can physically mate with SMA but support higher frequencies beyond the standard 18 GHz limit.

The SMB RF connector is engineered for fast, reliable connection and optimal signal integrity in high-density, space-constrained environments. It trades the threaded barrel for a tool-free snap-on (push-on) coupling mechanism, which lets technicians mate or demate connections rapidly without a torque wrench — drastically improving efficiency in test-and-measurement environments or in dense wiring between PCBs and subassemblies in confined spaces.

One critical mechanical detail to note is the standard SMB's reversed center contact configuration. Unlike standard SMA, an SMB plug (the male outer shell) houses a female center socket, while an SMB jack (the female outer shell) houses a male center pin.

Key specifications for a standard SMB connector:

- Coupling: Snap-on / push-on
‐ Contact configuration: Reversed by design (Plug = female socket, Jack = male pin)
- Impedance: 50 Ω
- Frequency range: DC to 4 GHz
- Insulation resistance: 500 MΩ min. (tested with 500 V DC)
- Contact resistance: 10 mΩ max. (at DC 0.1 A)
- Compatible Cables: RG-174, RG-187, RG-316, RD-316, and Micro-Coaxial Cables (0.8 mm OD)
- Compliance: RoHS and REACH compliant

SMB connectors are the optimal choice for high-density applications, finding durable niches in board-to-board mounting, automotive electronics, GPS receivers, and portable mobile devices. They also excel in medical and industrial monitoring, testing, and measurement equipment. Where the SMA's threaded lock is not required, the SMB's snap-on coupling wins out in assembly speed and space-saving, miniaturized design.

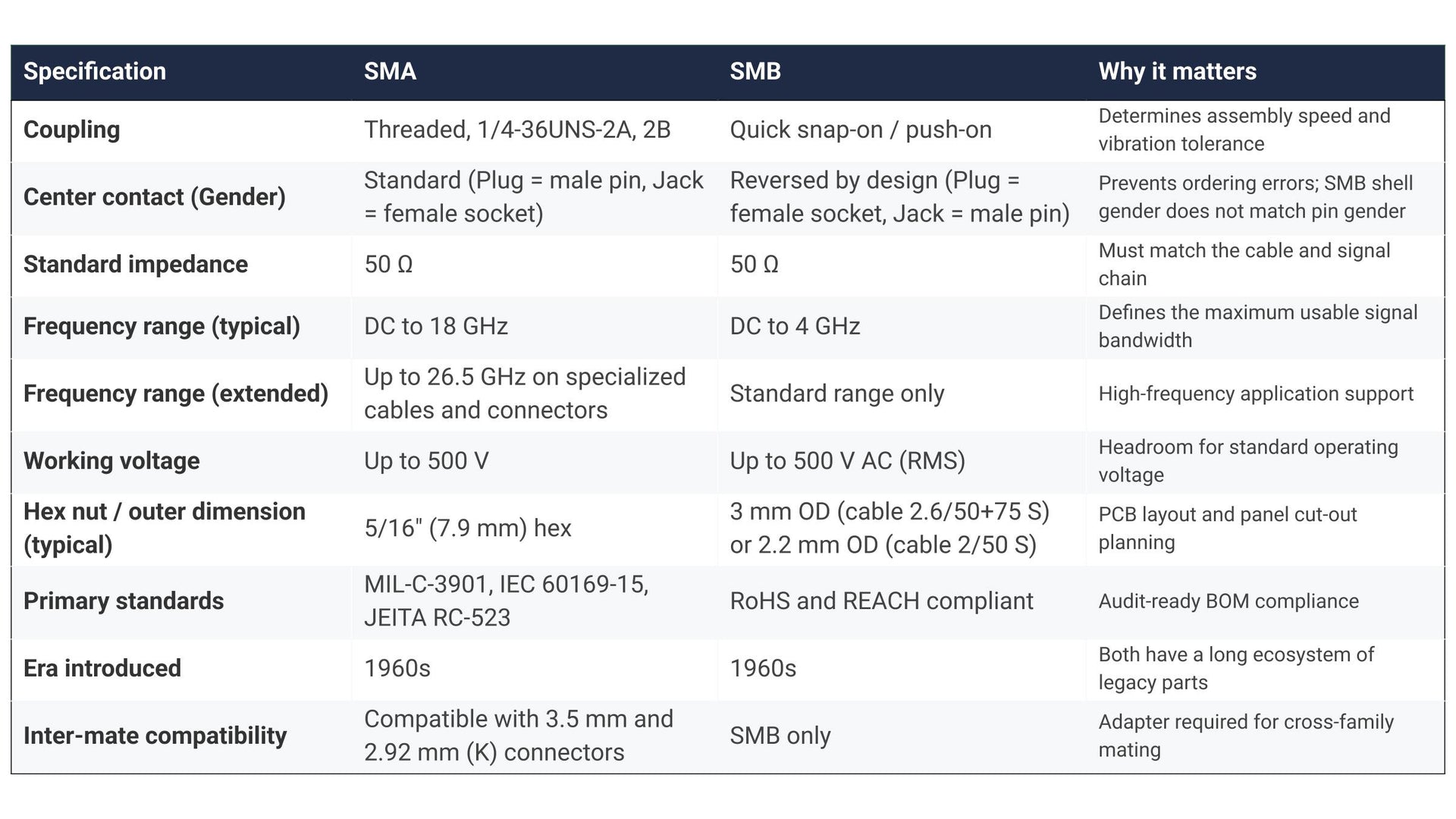

SMA uses a threaded coupling (1/4-36UNS-2A, 2B threads), which clamps the outer conductor in place and provides superior stability and vibration resistance once secured. The penalty is assembly time: each connection requires a torque wrench, and over- or under-torquing can damage the connection or shift the impedance match.

SMB uses a tool-free snap-on coupling that mates with a 14 lb (62 N) push and releases at 2 lb (8.9 N) (typical). No tools are needed, mating takes a second, and dense connector arrays — common in test and measurement environments or automotive systems — can be serviced rapidly without disturbing neighboring cables.

The trade-off is mechanical stability: a push-on design provides less retention than threaded connectors and can shake loose if the cable end is not strain-relieved.

Standard SMA guarantees reliable performance from DC up to 18 GHz, covering mobile communication base stations, 5G test setups, and high-frequency antennas. Specialized connectors and high-frequency test cables extend the same interface up to 26.5 GHz. For higher precision, mechanically compatible variants such as 3.5 mm (up to 26.5 GHz) and 2.92 mm (K) connectors (up to 46 GHz, standard) extend the usable bandwidth.

Standard SMB tops out at 4 GHz. That ceiling covers wireless communication, GPS systems, automotive electronics, and medical/industrial monitoring — but not high-frequency applications like mmWave 5G. If your target exceeds 4 GHz, SMA should be the default; SMB may compromise return loss as frequency increases.

While SMA features a constant 50 Ω impedance, 75 Ω (and even 95 Ω) specialty variants do exist. However, 50 Ω is the standard for SMA, so if your signal path is 75 Ω, finding a matched SMA connector may require a specialty order.

SMB, by contrast, is engineered for 50 Ω impedance in standard lineups like Tyclon's, though 75 Ω variants are available in the broader market for specific 75 Ω signal paths. This makes SMB useful in certain test-and-measurement chains and instrumentation backplanes.

The catch: SMB plugs and jacks of the two impedances look almost identical. Mating a 50 Ω plug into a 75 Ω jack physically works, but it creates an impedance mismatch and elevated return loss, which degrade signal integrity. Always confirm impedance on the part number, not the connector body.

Proper installation is where SMA’s threaded coupling (1/4-36UNS-2A, 2B threads) earns its keep. A secure connection is essential; an improper fit compromises the superior stability and vibration resistance the connector is designed to provide. Because of this, proper tools such as a torque wrench are necessary to ensure the connection maintains its reliable performance and stable signal transmission.

SMB sidesteps the torque question entirely. The tool-free, quick snap-on coupling mechanism ensures that installation is rapid and secure regardless of the technician. While both connector families deliver reliable signal integrity, threaded couplings provide the exceptional durability and stability needed for precision test instruments, which is why SMA dominates in those environments. SMB, meanwhile, is the optimal choice for space-constrained applications where efficient assembly is paramount.

SMA’s interface dimensions are governed by MIL-C-3901, IEC 60169-15 (Global), and JEITA RC-5235. SMB is covered by strict RoHS and REACH compliance. For procurement teams working on audited BOMs, those standard references are not decorative — they are how second-source qualification and global purchasing flows verify form-fit-function equivalence and the use of high-quality, compliant materials.

- Operating frequency exceeds 4 GHz — Wi-Fi 6/6E, sub-6 GHz 5G, S/C/X-band radar, K-band entry
- The environment includes vibration, shock, or outdoor exposure — automotive ADAS, aerospace, UAV / drone payloads
- Test and measurement applications require repeatable insertion-loss performance
- The full signal chain is 50 Ω
- Long-term reliability outweighs faster assembly

- Operating frequency stays below 4 GHz — GSM, LTE, sub-6 GHz telemetry, broadcast IF chains
- The assembly is space-constrained and benefits from snap-on density
- Service swaps are frequent, and a torque wrench is unavailable or impractical
- High-volume production where mating speed materially affects throughput

- mmWave on SMB: the 4 GHz ceiling makes SMB unsuitable for X-band radar, Wi-Fi 6E (6 GHz band), or mmWave 5G — return loss collapses long before the geometry physically fails.
- Vibration on SMB: a snap-on coupling on a UAV airframe or a vibrating automotive bracket can disengage at well below the rated cycle count. Strain-relief and zip-tie cable management are essential, or switch to SMA.
- 75 Ω broadcast on SMA: while 75 Ω SMA variants do exist as specialty items, standard SMAs are 50 Ω. Forcing a standard 50 Ω SMA into a 75 Ω chain creates an impedance mismatch regardless of how clean the mechanical fit looks.
- Mating SMA into a 2.92 mm port: SMA and 2.92 mm K-type share the same thread interface but have different internal geometry. Crossing them under torque can damage the precision port permanently.
