SMA Adapters Guide

SMA adapters are essential components in coaxial cable assemblies, primarily used for extending, connecting, or acting as an intermediate link between two existing SMA connectors. They enable flexible, reliable signal routing without requiring cable processing.

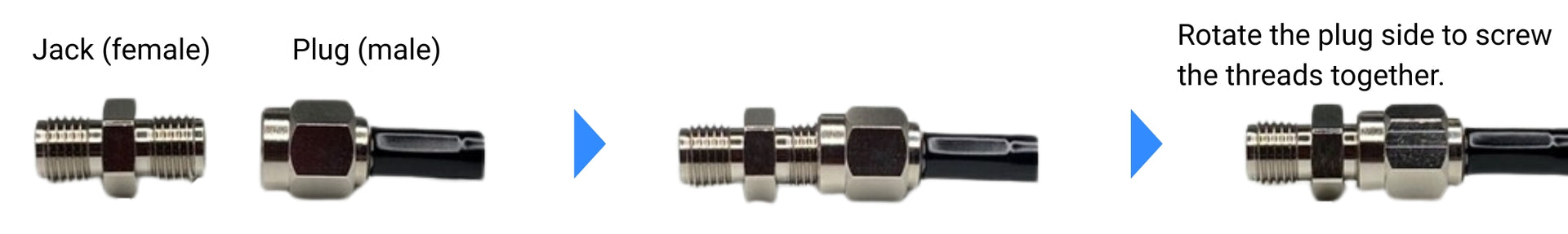

SMA adapters connect male and female SMA openings, joining their center conductors through a threaded coupling mechanism. This screw-on method guarantees a strong mechanical joint and reliable high-frequency signal transmission between the two components.

Standard adapters are offered in three core pairing arrangements to suit various connection needs. These types are male-to-male, connecting two female ports; female-to-female, joining two male plugs; and male-to-female for simple extension.

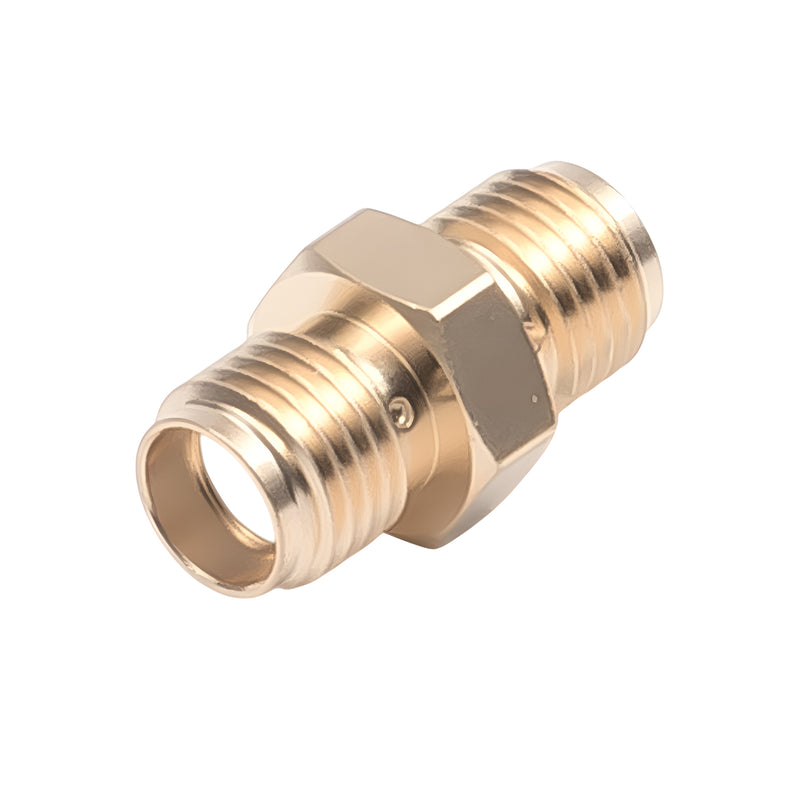

Straight adapters serve a key role in extending the reach of a cable run or providing a direct, in-line connection between two coaxial ports. They are used exclusively to join connectors, not to terminate cables, and maintain the signal path.

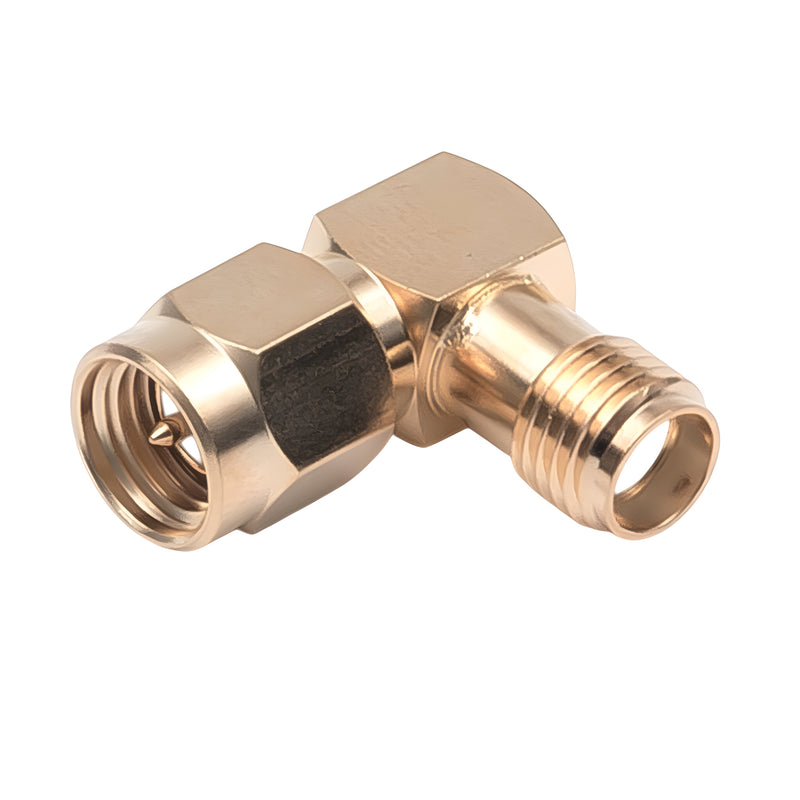

A Right-angle adapter is utilized when a ninety-degree turn is required immediately at the connection point. This design is crucial for managing space constraints and preventing severe cable strain near equipment ports.

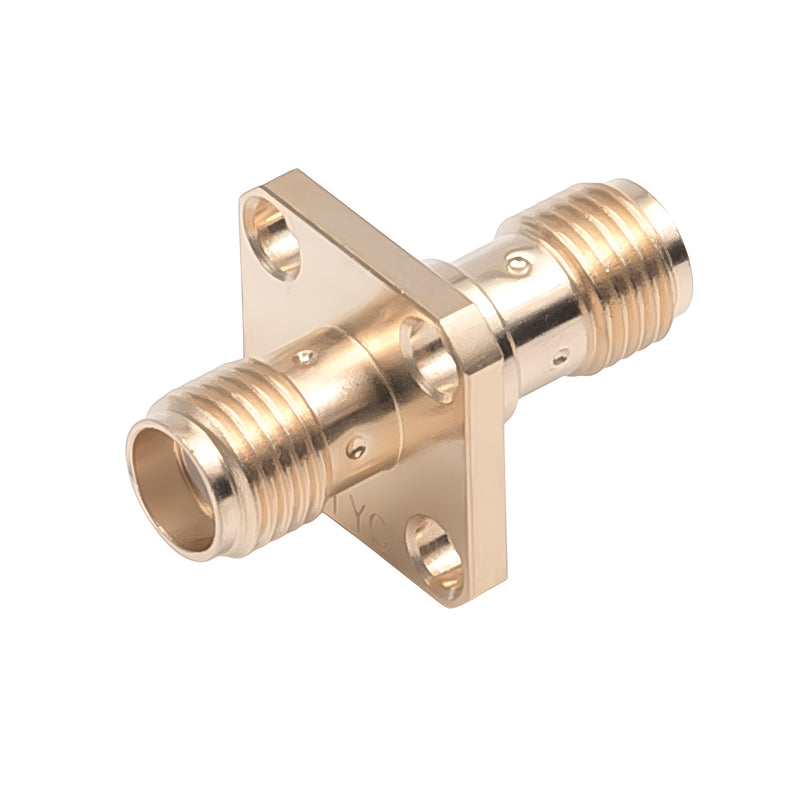

Flange adapters are chosen when a fixed, secure point of connection is needed on an equipment enclosure or chassis. They mount through a cutout, providing a robust and accessible SMA port for system interconnection and external cable access.

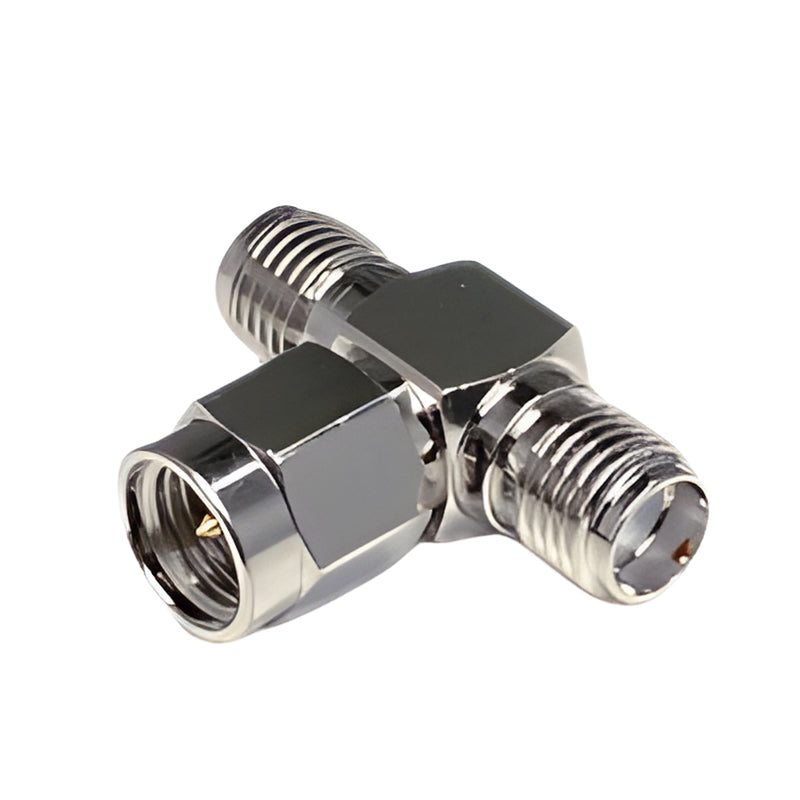

A T-shape adapter is a crucial component for signal splitting or branching. It connects one input to two outputs, allowing a single radio frequency line to be distributed to two separate points simultaneously, which is key for testing and network distribution.

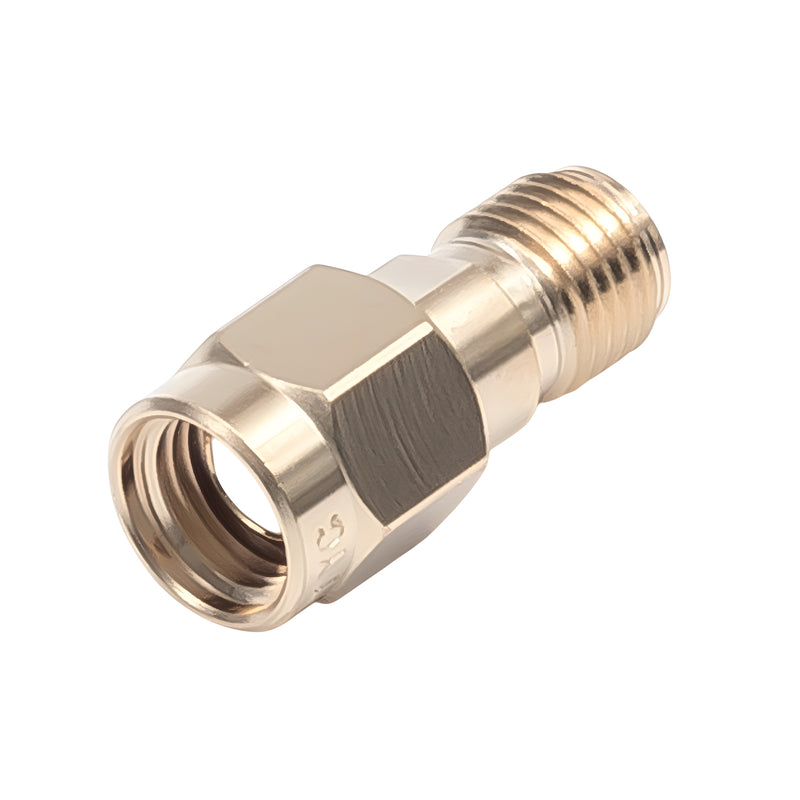

A reverse SMA adapter is necessary when connecting components with non-standard polarity. In this type, the adapter's center pin and outer threading are reversed relative to conventional connectors, ensuring unique mating requirements are met.

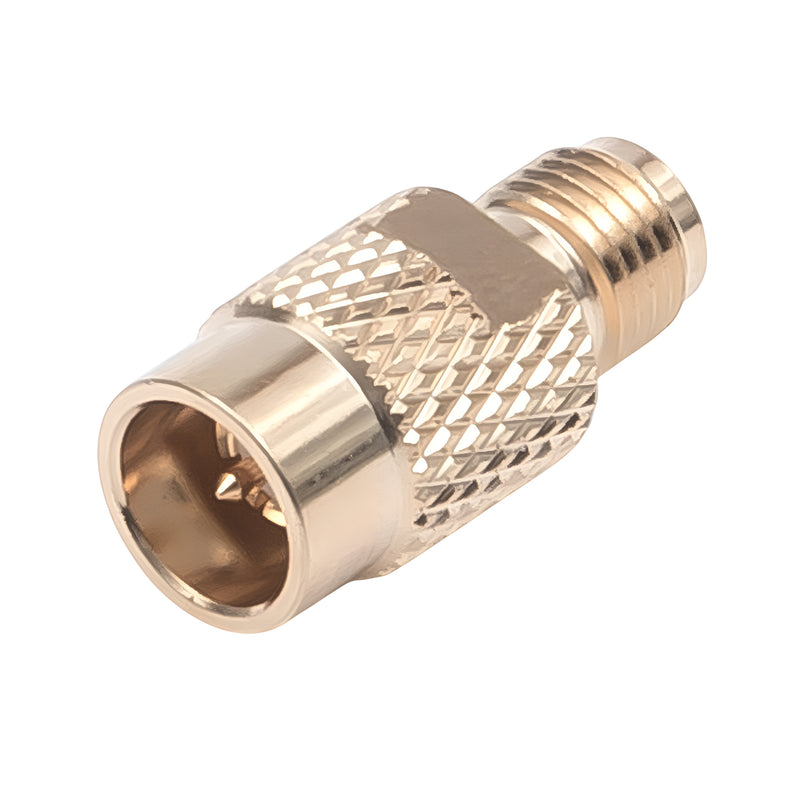

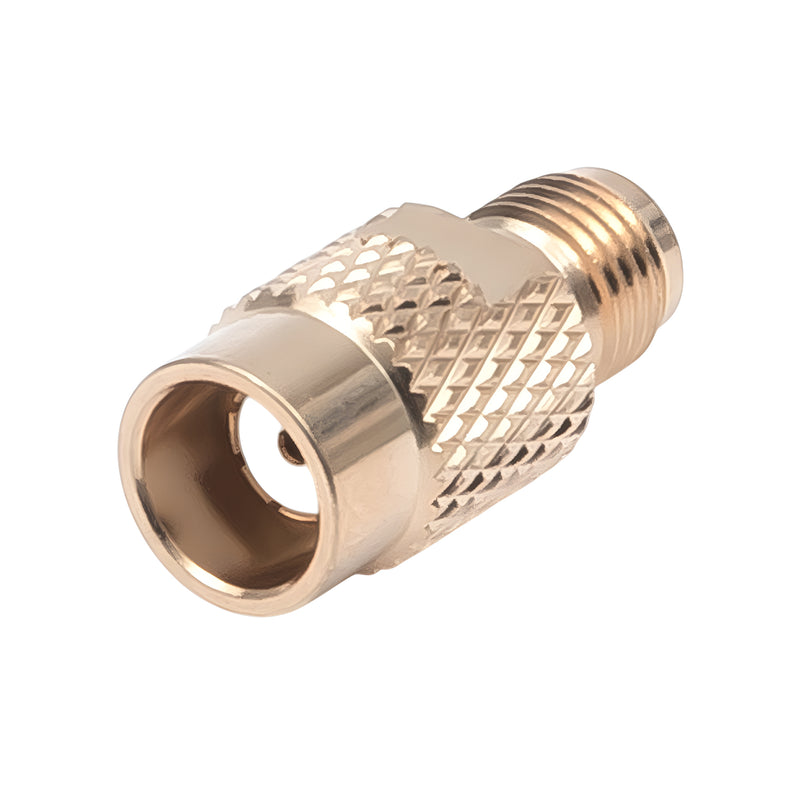

This adapter enables a push-on connection, allowing instant mating without threading, which is highly efficient for repeated network analyzer or measurement tasks. Its design minimizes transmission loss, optimizing high-volume testing procedures.

Quick adapters offer significantly reduced labor and time in test environments where connections are frequently changed. The push-on feature enables immediate, temporary mating, which is crucial for rapid, repeated performance checks and measurements.

Conversion connectors are adapters that change an SMA port to a different coaxial interface type, such as a BNC or N-type connector. They are essential for achieving interoperability between devices and instruments with disparate connection standards.
