• Adaptor(Flange)
  • Mismatch
  • Products in stock
  • RoHS2

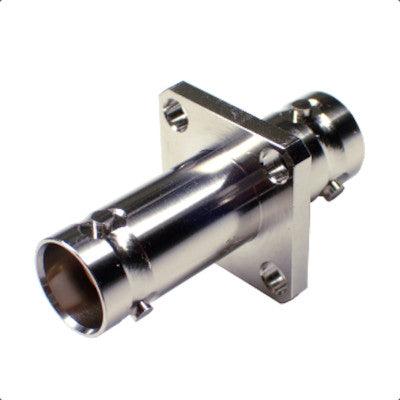

TYCLON

TRB-PA-JJ

$23.75
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

The TRB-PA-JJ is an TRB adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance Mismatch, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 2.0mΩ(Max.),Between intermediate conductor: 0.5mΩ(Max.), Between outer conductors: 0.4mΩ(Max.). Withstanding temperatures from -40～+85℃. The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack-Jack
  • Impedance (Ohms)
    Mismatch
  • Rated Voltage AC
    AC 500V
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1200V(1 minute)(Between center contact and intermediate conductor),<br/>AC 500V(1 minute)(Between intermediate conductor and outer conductor)
  • Contact Resistance
    Between inner conductors: 2.0mΩ(Max.),</br>Between intermediate conductor: 0.5mΩ(Max.),</br> Between outer conductors: 0.4mΩ(Max.)
  • Operating Temperature Range
    -40～+85℃

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Brass/Nickel Plating

The TRB-PA-JJ is an TRB adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance Mismatch, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 2.0mΩ(Max.),Between intermediate conductor: 0.5mΩ(Max.), Between outer conductors: 0.4mΩ(Max.). Withstanding temperatures from -40～+85℃. The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
