TRB-PBR

$19.58
Tax included
You must register and log in to download

Description

The TRB-PBR is an TRB Receptacle. This connector is suitable for various high-frequency applications. It features a impedance Mismatch, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 2.0mΩ(Max.),Between intermediate conductor: 0.5mΩ(Max.), Between outer conductors: 0.4mΩ(Max.). Withstanding temperatures from -40~+85℃. The contact is made of Brass/Gold-Plated, while the body is Brass/Nickel Plating. Terminal Shape is solder. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications

  • Connector Gender
    Jack
  • Impedance (Ohms)
    Mismatch
  • Rated Voltage AC
    AC 500V
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1200V(1 minute)(Between center contact and intermediate conductor),<br/>AC 500V(1 minute)(Between intermediate conductor and outer conductor)
  • Contact Resistance
    Between inner conductors: 2.0mΩ(Max.),</br>Between intermediate conductor: 0.5mΩ(Max.),</br> Between outer conductors: 0.4mΩ(Max.)
  • Operating Temperature Range
    -40~+85℃
  • Terminal Shape
    solder
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Brass/Gold-Plated
  • Body
    Brass/Nickel Plating

The TRB-PBR is an TRB Receptacle. This connector is suitable for various high-frequency applications. It features a impedance Mismatch, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 2.0mΩ(Max.),Between intermediate conductor: 0.5mΩ(Max.), Between outer conductors: 0.4mΩ(Max.). Withstanding temperatures from -40~+85℃. The contact is made of Brass/Gold-Plated, while the body is Brass/Nickel Plating. Terminal Shape is solder. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

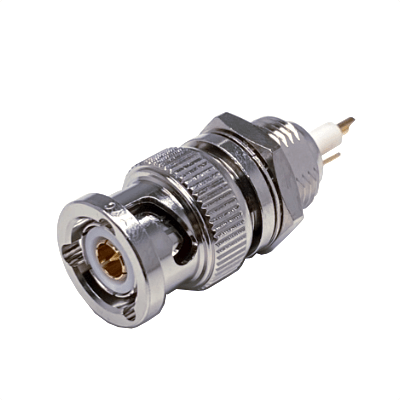

RF Coaxial Connector TRB Receptacle
