TRB-BR

$9.58
Tax included
You must register and log in to download

Description

The TRB-BR is an TRB Receptacle. This connector is suitable for various high-frequency applications. It features a impedance Mismatch, operates up to 0.5GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 3.0mΩ(Max.),Between intermediate conductor: 0.5mΩ(Max.), Between outer conductors: 0.4mΩ(Max.). Withstanding temperatures from -40~+85℃. The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. Terminal Shape is solder. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications

  • Connector Gender
    Jack
  • Impedance (Ohms)
    Mismatch
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    0.5GHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1200V(1 minute)(Between center contact and intermediate conductor),<br/>AC 500V(1 minute)(Between intermediate conductor and outer conductor)
  • Contact Resistance
    Between inner conductors: 3.0mΩ(Max.),</br>Between intermediate conductor: 0.5mΩ(Max.),</br> Between outer conductors: 0.4mΩ(Max.)
  • Operating Temperature Range
    -40~+85℃
  • Terminal Shape
    solder
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Brass/Nickel Plating

The TRB-BR is an TRB Receptacle. This connector is suitable for various high-frequency applications. It features a impedance Mismatch, operates up to 0.5GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 3.0mΩ(Max.),Between intermediate conductor: 0.5mΩ(Max.), Between outer conductors: 0.4mΩ(Max.). Withstanding temperatures from -40~+85℃. The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. Terminal Shape is solder. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

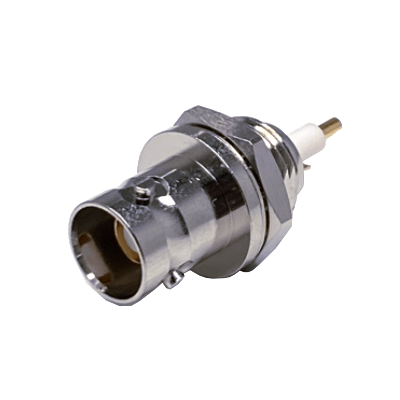

RF Coaxial Connector TRB Receptacle
TYCLON

TRB-BR

$9.58

TRB Receptacle

Cable type

N/A

Connector Gender

Jack

Impedance (Ohms)

Mismatch

Rated Voltage AC

AC 500V

Operating Frequency Range

0.5GHz

Insulation Resistance

1000MΩ(Min.) at DC 500V

Withstand Voltage

AC 1200V(1 minute)(Between center contact and intermediate conductor),<br/>AC 500V(1 minute)(Between intermediate conductor and outer conductor)

Contact Resistance

Between inner conductors: 3.0mΩ(Max.),</br>Between intermediate conductor: 0.5mΩ(Max.),</br> Between outer conductors: 0.4mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

-40~+85℃

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

solder
