• 50Ω
  • Receptacle
  • RoHS2
  • Small lot order available
TYCLON

TNC-PBR

Due to our winter holiday closure starting on December 27 (Japan time), orders will be shipped sequentially beginning January 5.
Thank you for your understanding.

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.CAD data can also be created.

Description

The TNC-PBR is an TNC Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 10mΩ(Max.),Between outer conductors: 2.5mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating. Terminal Shape is solder. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1500V(1 minute)
  • Contact Resistance
    Between inner conductors: 10mΩ(Max.),</br>Between outer conductors: 2.5mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C
  • Terminal Shape
    solder

    • We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Gold Plating
  • Body
    Brass/Nickel Plating

The TNC-PBR is an TNC Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 10mΩ(Max.),Between outer conductors: 2.5mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating. Terminal Shape is solder. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Featured collection

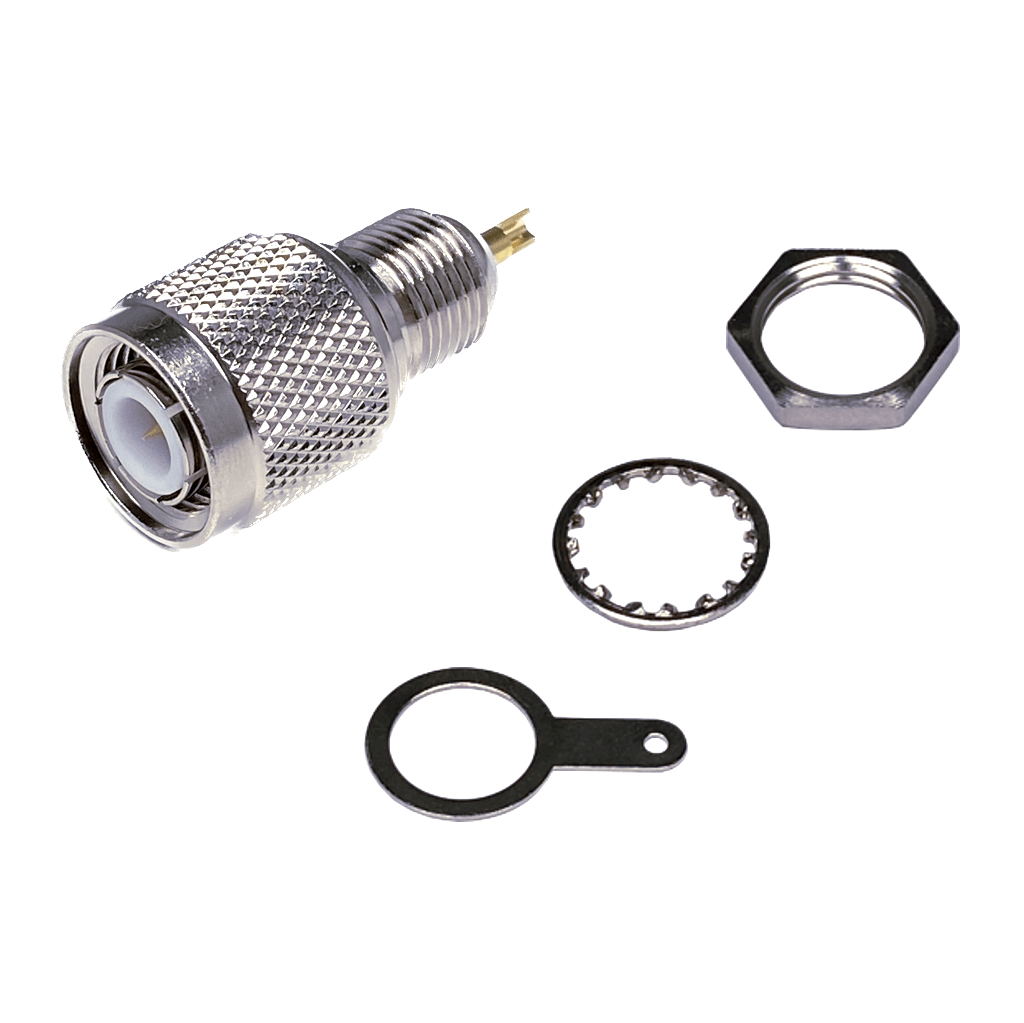

RF Coaxial Connector TNC Receptacle
TYCLON

TNC-PBR

$0.00

TNC Receptacle

Cable type

N/A

Connector Gender

Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 500V

Operating Frequency Range

N/A

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 1500V(1 minute)

Contact Resistance

Between inner conductors: 10mΩ(Max.),</br>Between outer conductors: 2.5mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

-40 to +85°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

solder
