• 50Ω
  • Coaxial Attenuator
  • Made to order product
  • RoHS2
TYCLON

TA-PJ-10

Please inquire from “Contact” for made-to-order products.
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

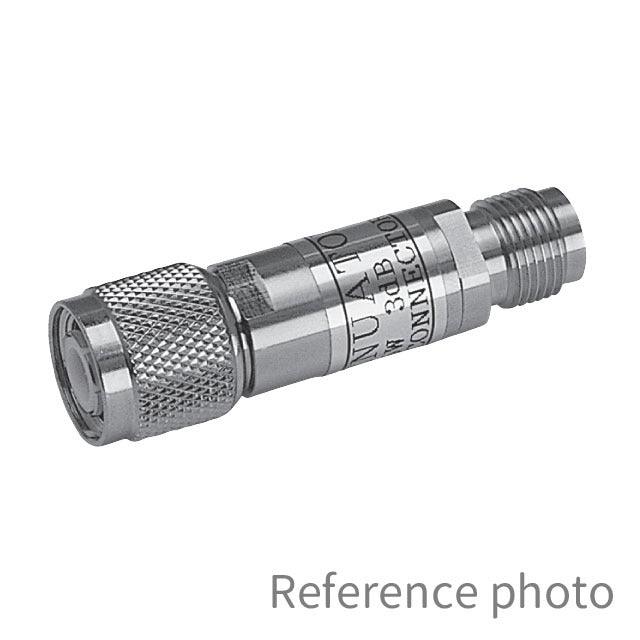

The TA-PJ-10 is an TNC Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 2 GHz, and an excellent V.S.W.R 1.2(Max.) at DC~2GHz. The contact is made of Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 1W.Attenuation is 10±1.0dB up to 2GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    2 GHz
  • V.S.W.R
    1.2(Max.) at DC~2GHz
  • Rated Power (W)
    1W
  • Attenuation (dB)
    10±1.0dB up to 2GHz

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Gold Plating
  • Body
    Brass/Nickel Plating

The TA-PJ-10 is an TNC Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 2 GHz, and an excellent V.S.W.R 1.2(Max.) at DC~2GHz. The contact is made of Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 1W.Attenuation is 10±1.0dB up to 2GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Featured collection

RF Coaxial Connector TNC Coaxial Attenuator
TYCLON

TA-PJ-10

$0.00

TNC Coaxial Attenuator

Cable type

N/A

Connector Gender

Plug-Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

2 GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.2(Max.) at DC~2GHz

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

1W

Attenuation (dB)

10±1.0dB up to 2GHz

Length (m)

N/A

Terminal Shape

N/A
