• 50Ω
  • Products in stock
  • Receptacle(PCB)
  • RoHS2
TYCLON

SMPM-PR-EMT(FD)

$52.20
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

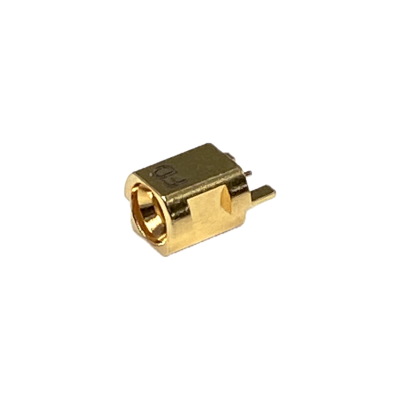

The SMPM-PR-EMT(FD) is an SMPM Receptacle For Printed Circuit Board connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 65GHz. The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless Steel / Passivate, Gold plated. Terminal Shape is edge mount. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    65 GHz
  • V.S.W.R
    1.30(Max.) at DC~65GHz
  • Terminal Shape
    edge mount

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Stainless Steel / Passivate, Gold plated

The SMPM-PR-EMT(FD) is an SMPM Receptacle For Printed Circuit Board connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 65GHz. The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless Steel / Passivate, Gold plated. Terminal Shape is edge mount. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector SMPM Receptacle(PCB)
TYCLON

SMPM-PR-EMT(FD)

$52.20

SMPM Receptacle(PCB)

Cable type

N/A

Connector Gender

Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

65 GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.30(Max.) at DC~65GHz

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

edge mount
