• 50Ω
  • Jack
  • Products in stock
  • RoHS2
TYCLON

SMPM-J-047

$46.20
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

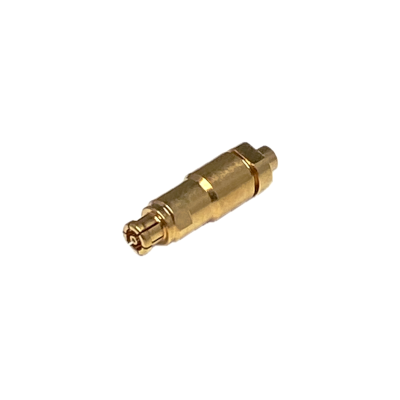

The SMPM-J-047 is an SMPM Straight Jack connector, designed for semi-rigid and semi-flexible cables. This connector is suitable for various high-frequency applications. Fits 0.047Semi-Rigid,0.047Semi-Flex cables. It features a impedance 50Ω, operates up to 65 GHz. The contact is made of Beryllium Copper, while the body is Beryllium Copper. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    0.047Semi-Rigid, 0.047Semi-Flex
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    65 GHz
  • V.S.W.R
    1.30(Max.) at DC~40GHz,1.45(Max.) at 40~65GHz

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper
  • Body
    Beryllium Copper

The SMPM-J-047 is an SMPM Straight Jack connector, designed for semi-rigid and semi-flexible cables. This connector is suitable for various high-frequency applications. Fits 0.047Semi-Rigid,0.047Semi-Flex cables. It features a impedance 50Ω, operates up to 65 GHz. The contact is made of Beryllium Copper, while the body is Beryllium Copper. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Featured collection

RF Coaxial Connector SMPM Jack
TYCLON

SMPM-J-047

$46.20

SMPM Jack

Cable type

0.047Semi-Rigid, 0.047Semi-Flex

Connector Gender

Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

65 GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.30(Max.) at DC~40GHz,1.45(Max.) at 40~65GHz

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
