• 50Ω
  • Coaxial Terminator
  • Products in stock
  • RoHS2
TYCLON

SMP-J-TRM

$81.67
Tax included

Online purchases are unavailable during our summer holiday closure. We appreciate your patience until August 18th (Japan Time) and apologize for any inconvenience.

You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

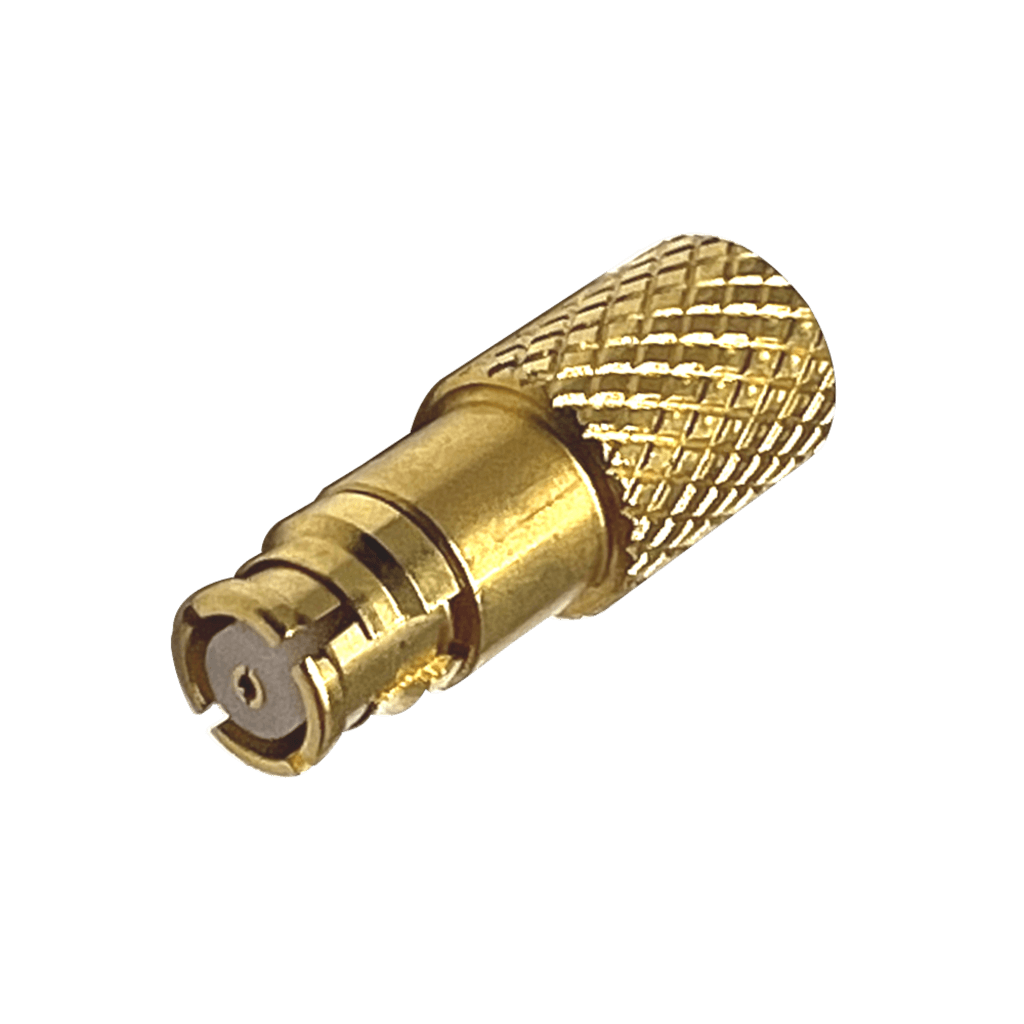

The SMP-J-TRM is an SMP Terminator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 40 GHz, a low contact resistance (Between inner conductors: 6.0 mΩ(Max.),Between outer conductors: 3.0 mΩ(Max.), and an excellent return loss 20 dB(Min.) at DC~26.5 GHz, 14 dB(Min.) at 26.5 GHz~40 GHz ). Withstanding temperatures from -55 to +125°C. The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Gold Plating. Rated Power is 1W. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    40 GHz
  • Contact Resistance
    Between inner conductors: 6.0 mΩ(Max.),</br>Between outer conductors: 3.0 mΩ(Max.)
  • V.S.W.R
    20 dB or more from DC~26.5 GHz, 14 dB or more from 26.5 GHz~40 GHz (return loss)
  • Operating Temperature Range
    -55 to +125°C
  • Rated Power (W)
    1W

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Brass/Gold Plating

The SMP-J-TRM is an SMP Terminator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 40 GHz, a low contact resistance (Between inner conductors: 6.0 mΩ(Max.),Between outer conductors: 3.0 mΩ(Max.), and an excellent return loss 20 dB(Min.) at DC~26.5 GHz, 14 dB(Min.) at 26.5 GHz~40 GHz ). Withstanding temperatures from -55 to +125°C. The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Gold Plating. Rated Power is 1W. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector SMP Coaxial Terminator
TYCLON

SMP-J-TRM

$81.67

SMP Coaxial Terminator

Cable type

N/A

Connector Gender

Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

40 GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

Between inner conductors: 6.0 mΩ(Max.),</br>Between outer conductors: 3.0 mΩ(Max.)

V.S.W.R

20 dB or more from DC~26.5 GHz, 14 dB or more from 26.5 GHz~40 GHz (return loss)

Operating Temperature Range

-55 to +125°C

Crimping Tool

N/A

Rated Power (W)

1W

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
Compare now
