• 50Ω
  • Products in stock
  • Receptacle(PCB)
  • RoHS2
TYCLON

SMP-PR-SMT(LD)

$20.00
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

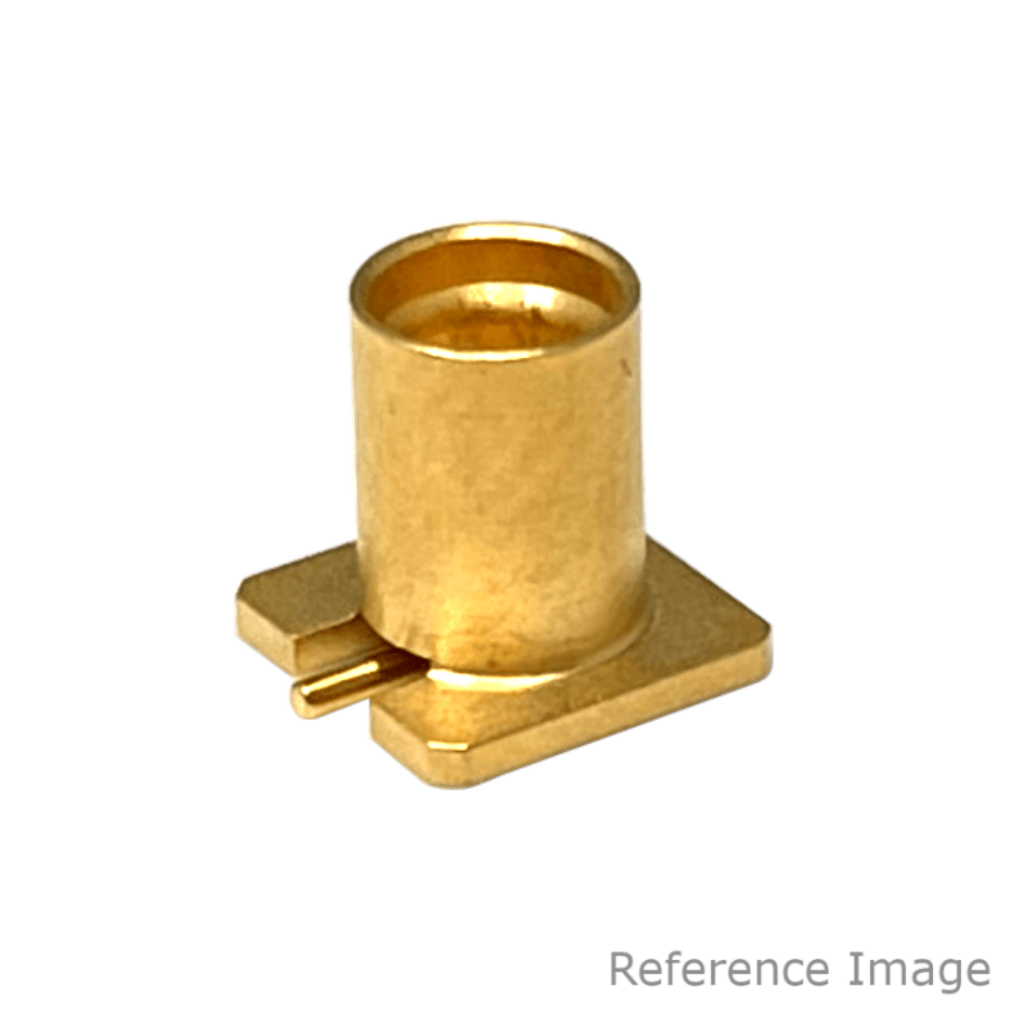

The SMP-PR-SMT(LD) is an SMP Receptacle For Printed Circuit Board connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 40 GHz, and has a rated voltage of AC 170V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 6.0 mΩ(Max.),Between outer conductors: 3.0 mΩ(Max.), and an excellent return loss 17 dB(Min.) at DC~26.5 GHz, 10 dB(Min.) at 26.5 GHz~40 GHz ). Withstanding temperatures from -55 to +125°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Gold Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 170V
  • Operating Frequency Range
    40 GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    Between inner conductors: 6.0 mΩ(Max.),</br>Between outer conductors: 3.0 mΩ(Max.)
  • V.S.W.R
    17 dB or more from DC~26.5 GHz, 10 dB or more from 26.5 GHz~40 GHz (return loss)
  • Operating Temperature Range
    -55 to +125°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Gold Plating
  • Body
    Brass/Gold Plating

The SMP-PR-SMT(LD) is an SMP Receptacle For Printed Circuit Board connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 40 GHz, and has a rated voltage of AC 170V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 6.0 mΩ(Max.),Between outer conductors: 3.0 mΩ(Max.), and an excellent return loss 17 dB(Min.) at DC~26.5 GHz, 10 dB(Min.) at 26.5 GHz~40 GHz ). Withstanding temperatures from -55 to +125°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Gold Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
