SMP-J-085

You must register and log in to download

Description

The SMP-J-085 is an SMP Straight Jack connector, designed for semi-rigid and semi-flexible cables. This connector is suitable for various high-frequency applications.Fits 0.085Semi-Rigid,0.085Semi-Flex cables. It features a impedance 50Ω, operates up to 40 GHz, and has a rated voltage of AC 170V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 6.0 mΩ(Max.),Between outer conductors: 3.0 mΩ(Max.), and an excellent return loss >12 dB at DC~26.5 GHz, >6 dB at 26.5 GHz~40 GHz ). Withstanding temperatures from -55°C to +125°C *With the connector alone (depending on the temperature range of the cable). The contact is made of Beryllium Copper/Gold Plating, while the body is Beryllium Copper/Gold Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications

  • Cable type
    0.085Semi-Rigid, 0.085Semi-Flex
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 170V
  • Operating Frequency Range
    40 GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    Between inner conductors: 6.0 mΩ(Max.),</br>Between outer conductors: 3.0 mΩ(Max.)
  • V.S.W.R
    >12 dB from DC~26.5 GHz, >6 dB from >26.5 GHz~40 GHz (return loss)
  • Operating Temperature Range
    -55°C to +125°C *With the connector alone (depending on the temperature range of the cable)
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Beryllium Copper/Gold Plating

The SMP-J-085 is an SMP Straight Jack connector, designed for semi-rigid and semi-flexible cables. This connector is suitable for various high-frequency applications.Fits 0.085Semi-Rigid,0.085Semi-Flex cables. It features a impedance 50Ω, operates up to 40 GHz, and has a rated voltage of AC 170V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 6.0 mΩ(Max.),Between outer conductors: 3.0 mΩ(Max.), and an excellent return loss >12 dB at DC~26.5 GHz, >6 dB at 26.5 GHz~40 GHz ). Withstanding temperatures from -55°C to +125°C *With the connector alone (depending on the temperature range of the cable). The contact is made of Beryllium Copper/Gold Plating, while the body is Beryllium Copper/Gold Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

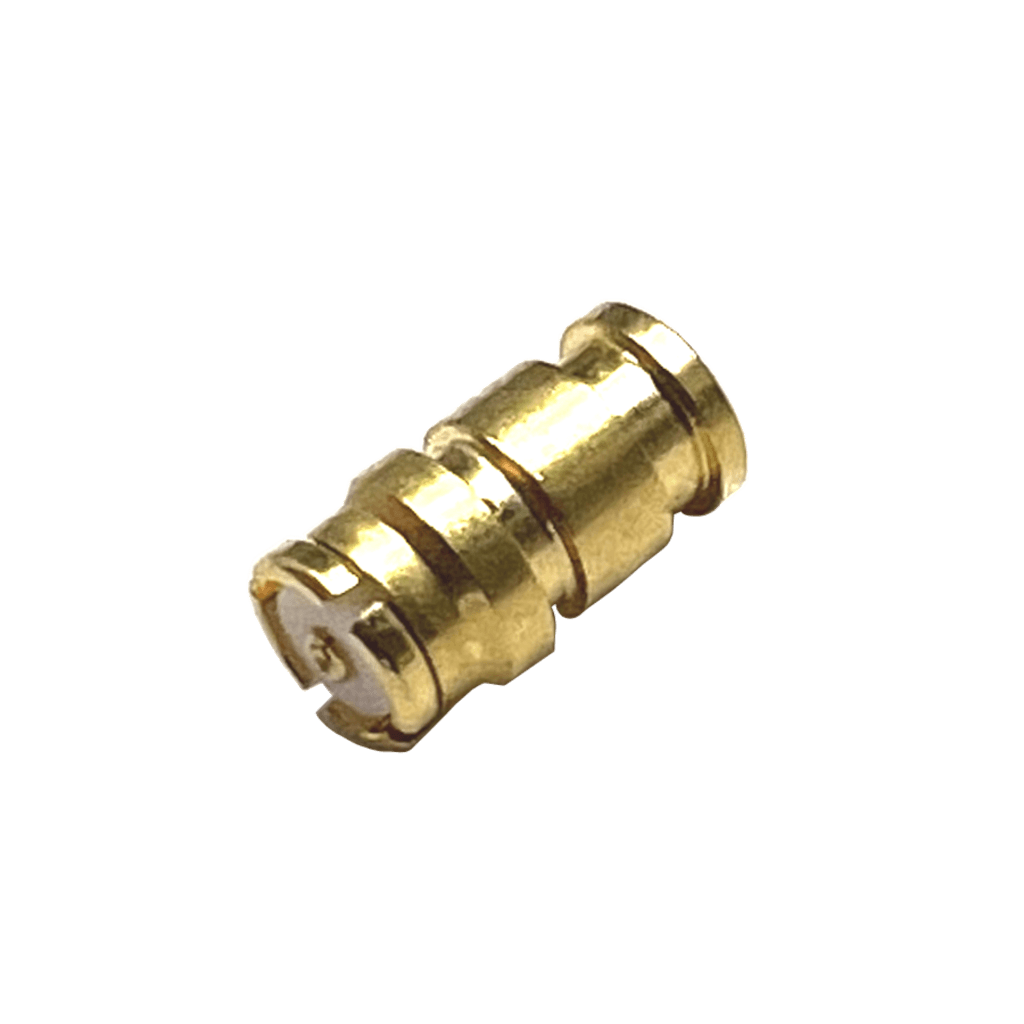

RF Coaxial Connector SMP Jack
TYCLON

SMP-J-085

$0.00

SMP Jack

Cable type

0.085Semi-Rigid, 0.085Semi-Flex

Connector Gender

Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 170V

Operating Frequency Range

40 GHz

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 500V(1 minute)

Contact Resistance

Between inner conductors: 6.0 mΩ(Max.),</br>Between outer conductors: 3.0 mΩ(Max.)

V.S.W.R

>12 dB from DC~26.5 GHz, >6 dB from >26.5 GHz~40 GHz (return loss)

Operating Temperature Range

-55°C to +125°C *With the connector alone (depending on the temperature range of the cable)

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
