TYCLON

SMB-PC(Au)

$3.58
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.CAD data can also be created.

Description

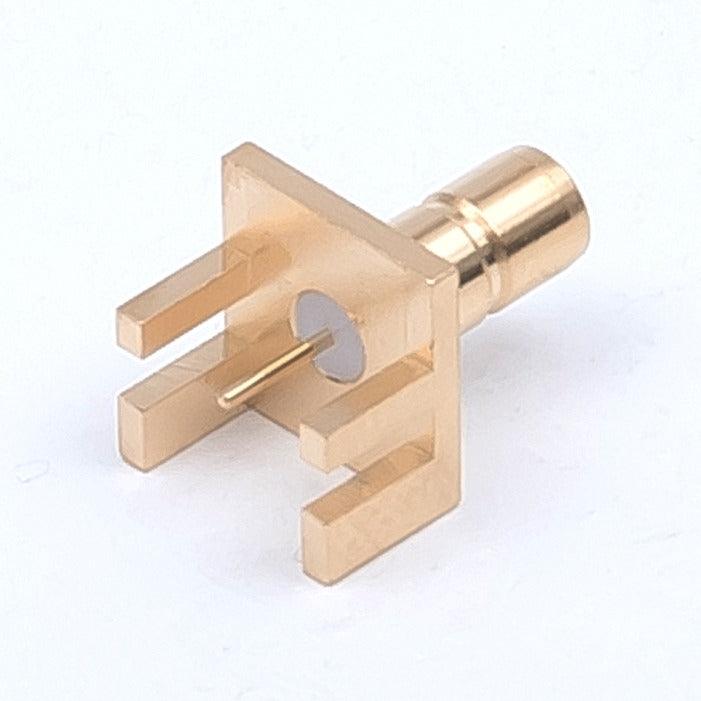

The SMB-PC(Au) is an SMB Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, ensures a high insulation resistance (500MΩ(Min.) at DC 500V), a low contact resistance (10 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Gold Plating. Terminal Shape is edge mount. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Learn more about the SMB RF connector in our technical guide.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Insulation Resistance
    500MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    10 mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C
  • Terminal Shape
    edge mount
