SMB-BJ-0.8DA

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

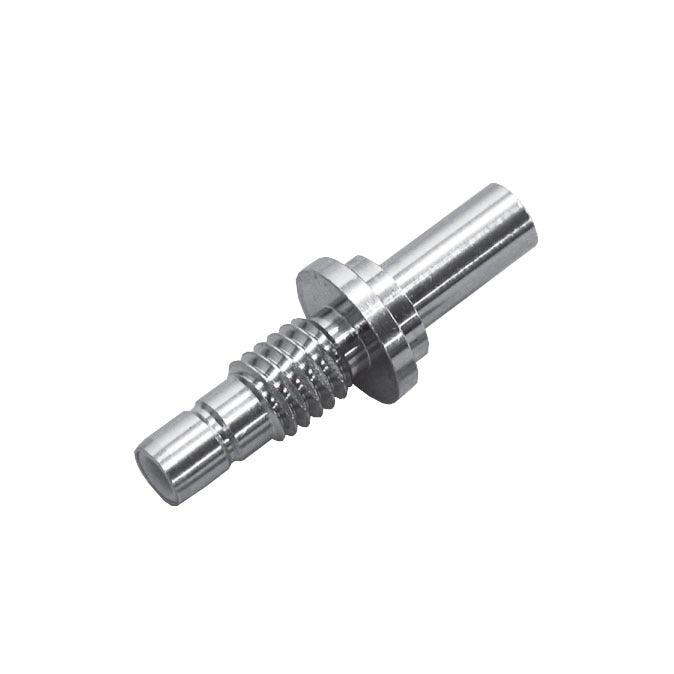

The SMB-BJ-0.8DA is an SMB Bulkhead Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits 1×0.26 D=0.8 cables. It features a impedance 50Ω, ensures a high insulation resistance (500MΩ(Min.) at DC 500V), a low contact resistance (10 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at 50~1500MHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating (Soldering Part, Gold Plating)/Soldering + Crimping.A crimping toolTA-16 or TA-17 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    1×0.26 D=0.8
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Insulation Resistance
    500MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    10 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at 50~1500MHz
  • Operating Temperature Range
    -40 to +85°C
  • Crimping Tool
    TA-16, TA-17

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Gold-Plated/Soldered
  • Body
    Brass/Nickel Plating (Soldering Part, Gold Plating)/Soldering + Crimping
