Description

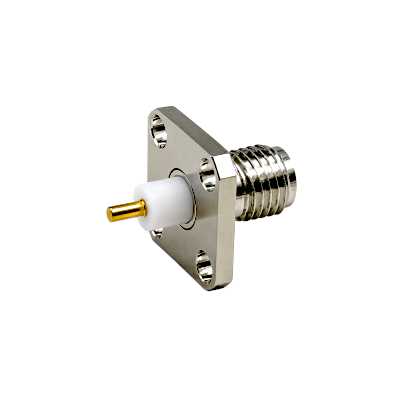

The SMA-R-S is an SMA Receptacle. This connector is suitable for various high-frequency applications.
It features an insulator length of 3.5mm. We offer a lineup of three product types – SMA-R-S, SMA-R-M, and SMA-R-L – with varying insulator lengths.
It has an impedance of 50Ω, operates up to 18GHz, and has a rated voltage of AC 500V. It ensures a high insulation resistance (5000MΩ (Min.) at DC 500V), a low contact resistance (3 mΩ (Max.)), and an excellent V.S.W.R 1.2 (Max.) at DC~18GHz. Withstanding temperatures from -40 to +85°C.
The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. The terminal shape is a round bar. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Learn more about the SMA RF connector in our technical guide.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    18GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~18GHz
  • Operating Temperature Range
    -40 to +85°C
  • Terminal Shape
    Round bar
