• 50Ω
  • Plug
  • Products in stock
  • RoHS2
TYCLON

SMAP-LMR240A

$5.74
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.CAD data can also be created.

Description

The SMAP-LMR240A is an SMA Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications. Fits LMR400, H155 cables. It features a impedance 50Ω, and an excellent V.S.W.R 1.3(Max.) at DC~6 GHz. The contact is made of Brass/Gold Plating/Soldered, while the body is Brass/Gold Plating/Crimp. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Learn more about the SMA RF connector in our technical guide.

Specifications
  • Cable type
    LMR400, H155
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • V.S.W.R
    1.3(Max.) at DC~6 GHz
  • Crimping Tool
    TA-34, TA-35

    • We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Gold Plating/Soldered
  • Body
    Brass/Gold Plating/Crimp

The SMAP-LMR240A is an SMA Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications. Fits LMR400, H155 cables. It features a impedance 50Ω, and an excellent V.S.W.R 1.3(Max.) at DC~6 GHz. The contact is made of Brass/Gold Plating/Soldered, while the body is Brass/Gold Plating/Crimp. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Learn more about the SMA RF connector in our technical guide.

Featured collection

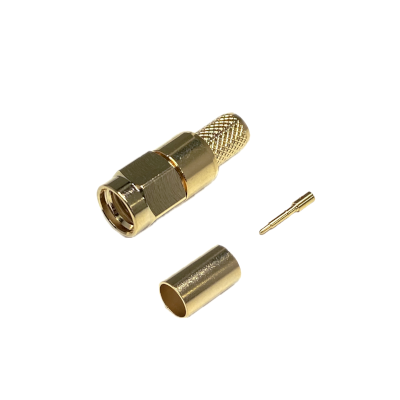

RF Coaxial Connector SMA Plug
TYCLON

SMAP-LMR240A

$5.74

SMA Plug

Cable type

LMR400, H155

Connector Gender

Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

N/A

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.3(Max.) at DC~6 GHz

Operating Temperature Range

N/A

Crimping Tool

TA-34, TA-35

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
