TYCLON

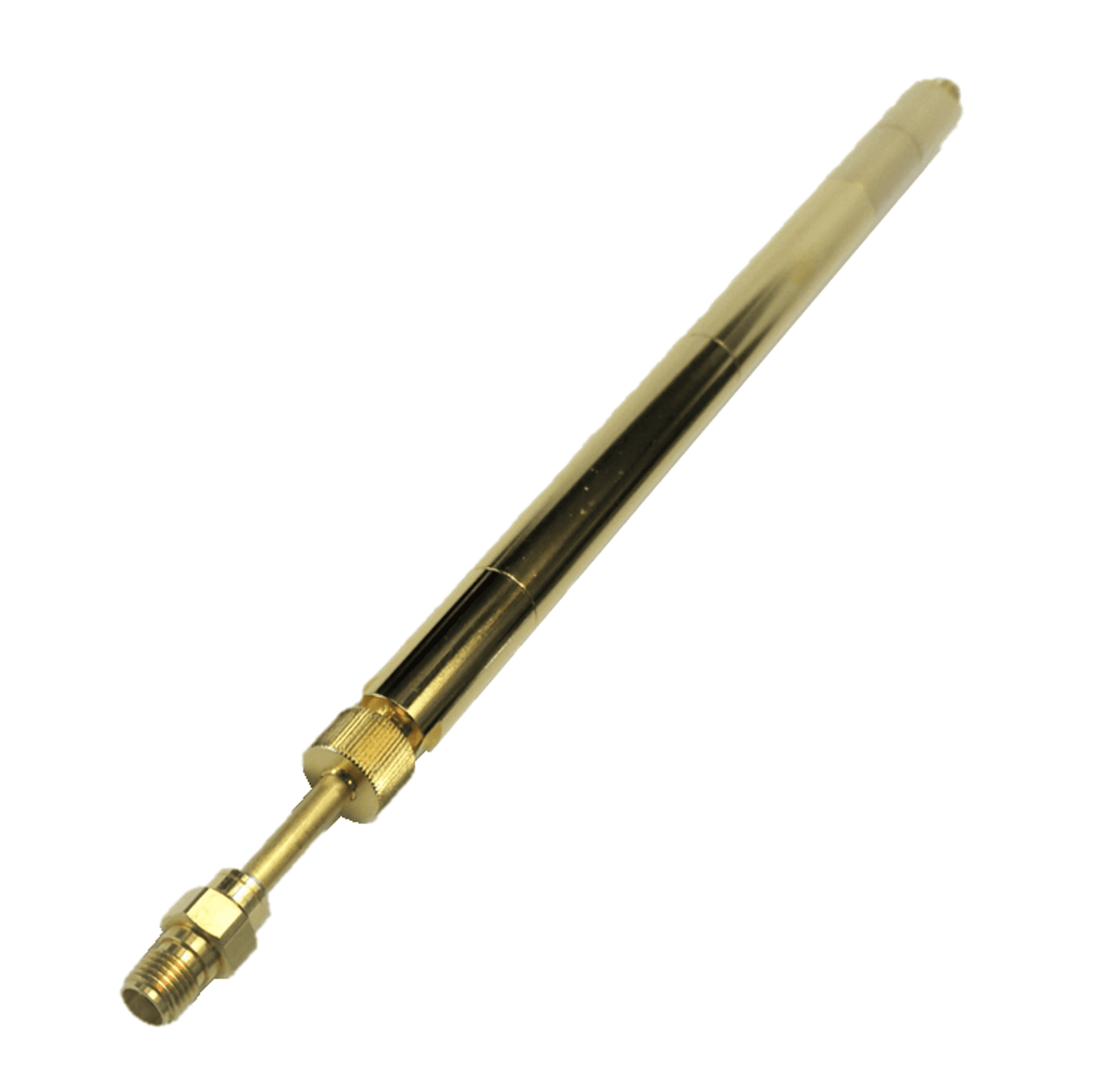

Coaxial line stretcher Phase adjuster CLS001

Please inquire from “Contact” for made-to-order products.
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

The coaxial line stretcher can adjust the electrical length by varying the length of the coaxial tube while maintaining a 50Ω impedance. It is ideal for phase adjustment, impedance matching, and signal synthesis. Model number is CLS-001.

Specifications
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    10GHz
  • V.S.W.R
    1.1(Max.) at DC~6GHz , 1.2(Max.) at 6~10GHz
  • Operating Temperature Range
    -10～+65℃
  • Rated Power (W)
    50W
