• 50Ω
  • Made to order product
  • Receptacle(PCB)
  • RoHS2
TYCLON

SMA-PC0.9

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

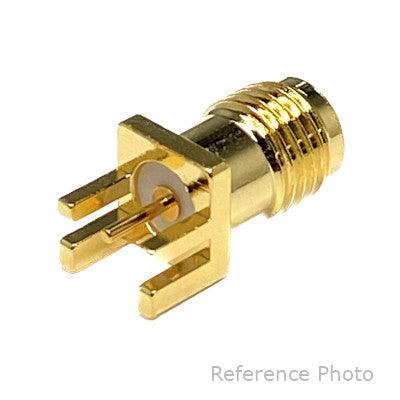

Description

The SMA-PC0.9 is an SMA Receptacle For Printed Circuit Board connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 3mΩ(Max.),Between outer conductors: 2mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at DC~18GHz. Withstanding temperatures from -40～+85℃. The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Gold Plating. Terminal Shape is edge mount. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    18GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    Between inner conductors: 3mΩ(Max.),</br>Between outer conductors: 2mΩ(Max.)
  • V.S.W.R
    1.3(Max.) at DC~18GHz
  • Operating Temperature Range
    -40～+85℃
  • Terminal Shape
    edge mount

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Brass/Gold Plating

The SMA-PC0.9 is an SMA Receptacle For Printed Circuit Board connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 3mΩ(Max.),Between outer conductors: 2mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at DC~18GHz. Withstanding temperatures from -40～+85℃. The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Gold Plating. Terminal Shape is edge mount. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.
