• 50Ω
  • Coaxial Attenuator
  • Products in stock
  • RoHS2
TYCLON

SA-PJ-10

$51.00
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

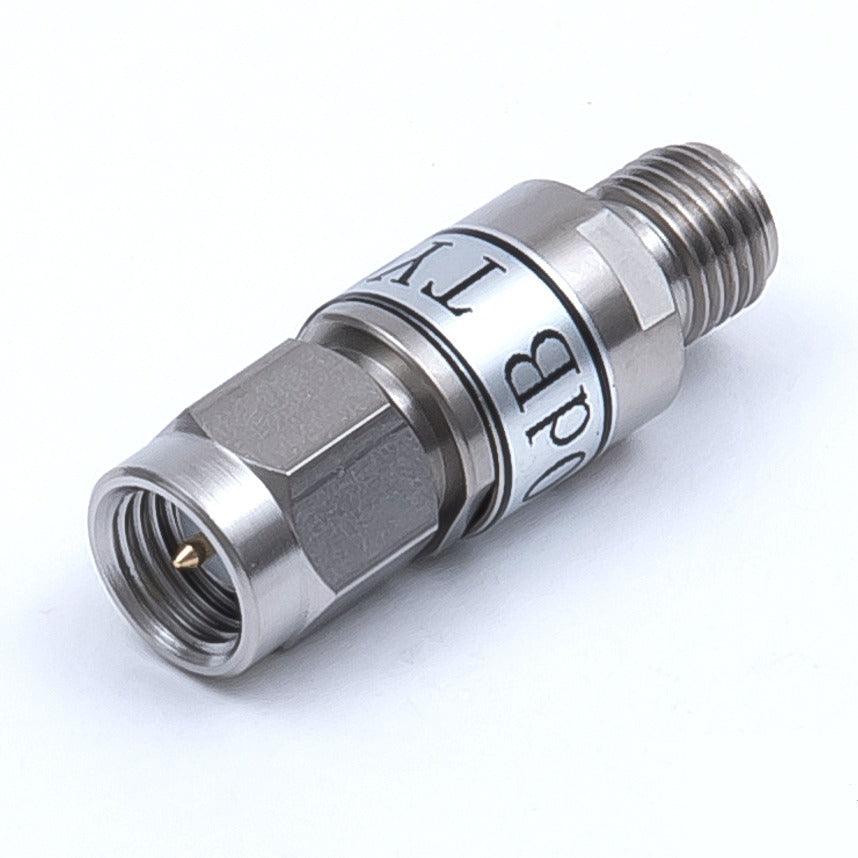

The SA-PJ-10 is an SMA Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18GHz, and an excellent V.S.W.R 1.3(Max.) at DC~18GHz. Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Beryllium Copper/Gold Plating, while the body is Stainless/Passivate Treatment. Rated Power is 1W.Attenuation is 10±1.25dB up to 18GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    18GHz
  • V.S.W.R
    1.3(Max.) at DC~18GHz
  • Operating Temperature Range
    -20 to +65°C
  • Rated Power (W)
    1W
  • Attenuation (dB)
    10±1.25dB up to 18GHz

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Beryllium Copper/Gold Plating
  • Body
    Stainless/Passivate Treatment

The SA-PJ-10 is an SMA Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18GHz, and an excellent V.S.W.R 1.3(Max.) at DC~18GHz. Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Beryllium Copper/Gold Plating, while the body is Stainless/Passivate Treatment. Rated Power is 1W.Attenuation is 10±1.25dB up to 18GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector SMA Coaxial Attenuator
TYCLON

SA-PJ-10

$51.00

SMA Coaxial Attenuator

Cable type

N/A

Connector Gender

Plug-Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

18GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.3(Max.) at DC~18GHz

Operating Temperature Range

-20 to +65°C

Crimping Tool

N/A

Rated Power (W)

1W

Attenuation (dB)

10±1.25dB up to 18GHz

Length (m)

N/A

Terminal Shape

N/A
