Description

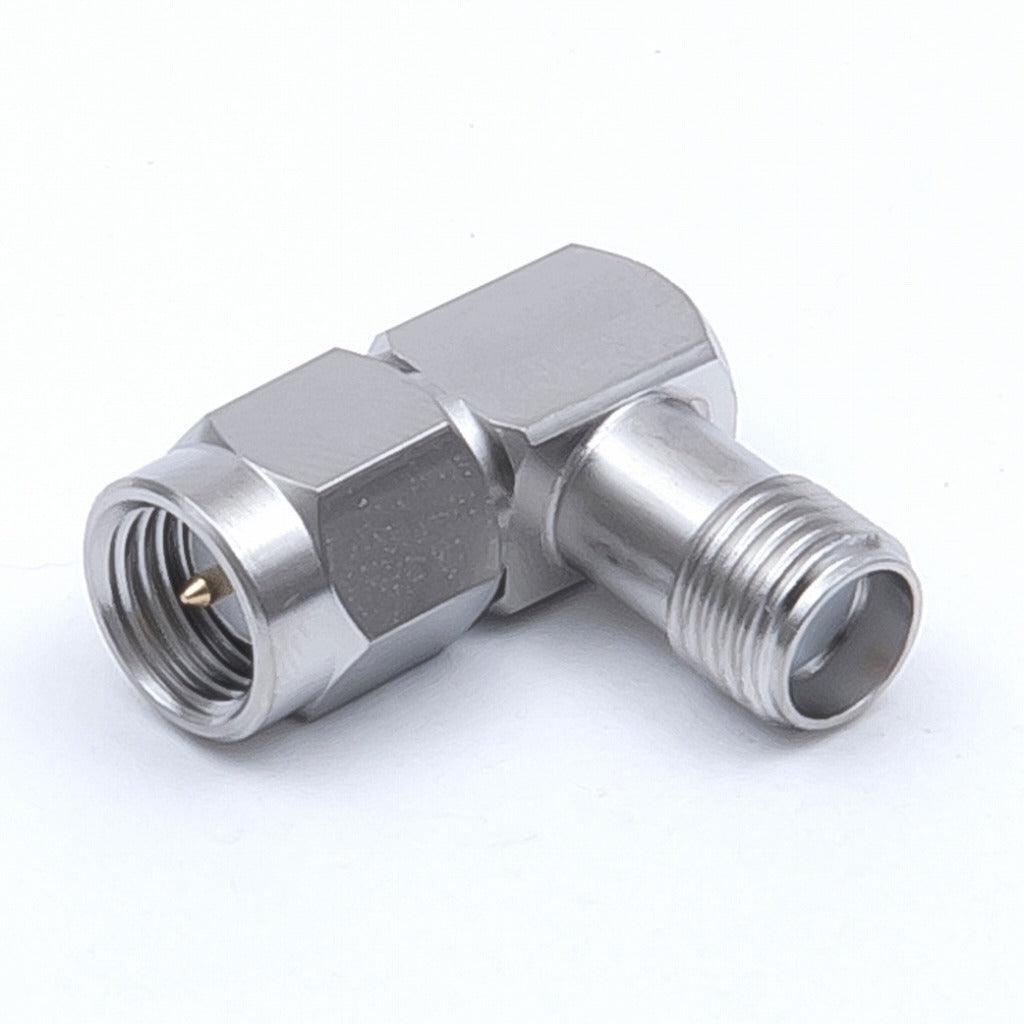

The SMA-LA(Pa) is an SMA Right Angle adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 12.4GHz, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (4 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~12.4GHz. Withstanding temperatures from -55 to +155°C. The contact is made of Beryllium Copper/Brass/Gold Plating, while the body is Stainless/Passivate Treatment. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    12.4GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    4 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~12.4GHz
  • Operating Temperature Range
    -55 to +155°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Brass/Gold Plating
  • Body
    Stainless/Passivate Treatment
