TYCLON

SMA-A-PP(Pa)

$13.17
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

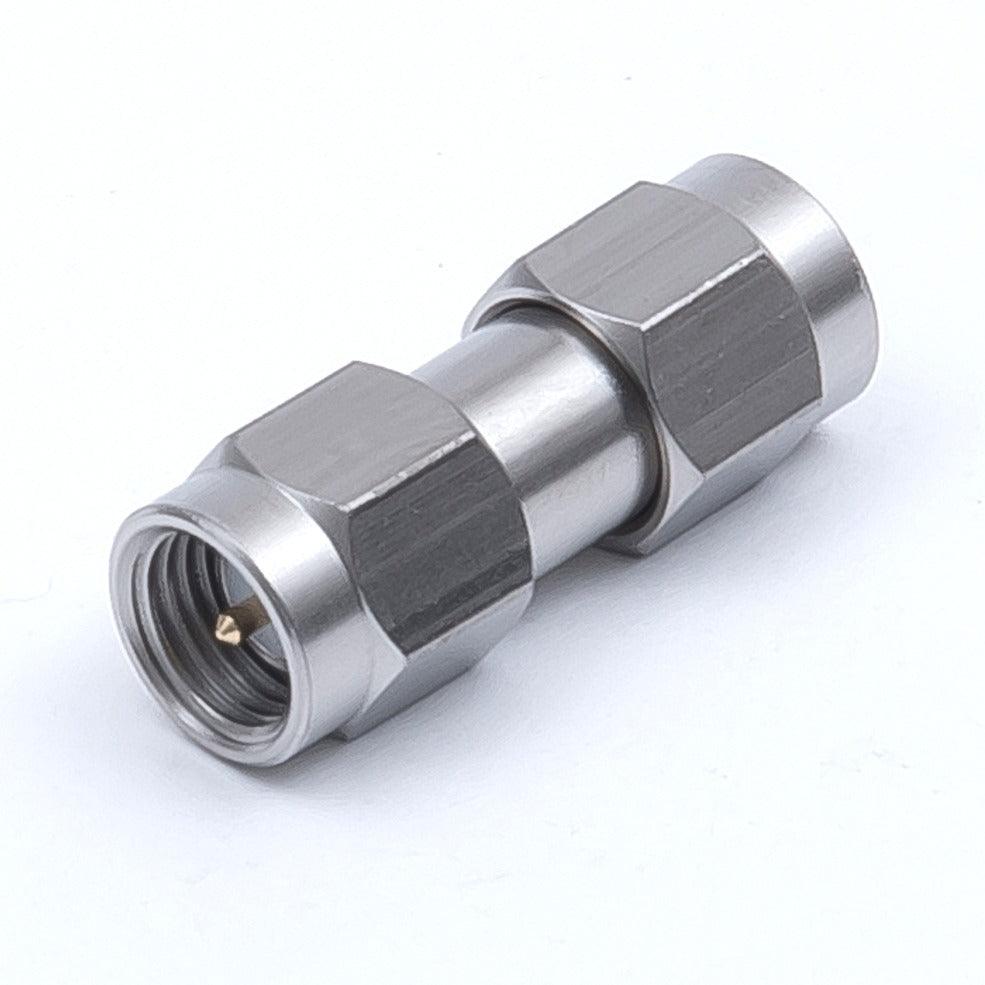

The SMA-A-PP(Pa) is an SMA adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18GHz, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (4 mΩ(Max.), and an excellent V.S.W.R 1.05+0.01F(Max.) at DC~18GHz (F: GHz)). Withstanding temperatures from -55 to +155°C. The contact is made of Brass/Gold Plating, while the body is Stainless/Passivate Treatment. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Plug
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    18GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    4 mΩ(Max.)
  • V.S.W.R
    1.05+0.01F(Max.) at DC~18GHz (F: GHz)
  • Operating Temperature Range
    -55 to +155°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Gold Plating
  • Body
    Stainless/Passivate Treatment

The SMA-A-PP(Pa) is an SMA adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18GHz, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (4 mΩ(Max.), and an excellent V.S.W.R 1.05+0.01F(Max.) at DC~18GHz (F: GHz)). Withstanding temperatures from -55 to +155°C. The contact is made of Brass/Gold Plating, while the body is Stainless/Passivate Treatment. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector SMA Adaptor
TYCLON

SMA-A-PP(Pa)

$13.17

SMA Adaptor

Cable type

N/A

Connector Gender

Plug-Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

18GHz

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 1000V(1 minute)

Contact Resistance

4 mΩ(Max.)

V.S.W.R

1.05+0.01F(Max.) at DC~18GHz (F: GHz)

Operating Temperature Range

-55 to +155°C
