TYCLON

SMA-RC(Au)

$7.75
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

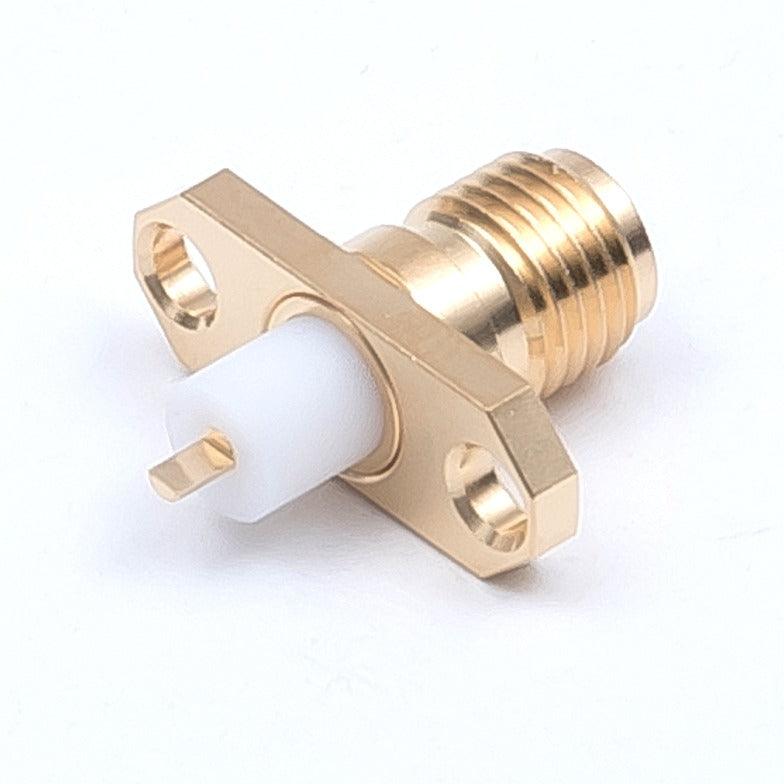

The SMA-RC(Au) is an SMA Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 12.4GHz, and has a rated voltage of AC 335V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~8GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless/Gold Plating. Terminal Shape is half cut. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 335V
  • Operating Frequency Range
    12.4GHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~8GHz
  • Operating Temperature Range
    -40 to +85°C
  • Terminal Shape
    half cut

    • Safe & Secure
