SMA-RC2-C(Pa)

You must register and log in to download

Description

The SMA-RC2-C(Pa) is an SMA Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (4 mΩ(Max.), and an excellent V.S.W.R 1.05 + 0.01F(Max.) at DC~18 GHz (F: GHz)). Withstanding temperatures from -55 to +125°C. The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless/Passivate Treatment. Terminal Shape is Round bar. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications

  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    18GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    4 mΩ(Max.)
  • V.S.W.R
    1.05 + 0.01F(Max.) at DC~18 GHz (F: GHz)
  • Operating Temperature Range
    -55 to +125°C
  • Terminal Shape
    Round bar
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Stainless/Passivate Treatment

The SMA-RC2-C(Pa) is an SMA Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (4 mΩ(Max.), and an excellent V.S.W.R 1.05 + 0.01F(Max.) at DC~18 GHz (F: GHz)). Withstanding temperatures from -55 to +125°C. The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless/Passivate Treatment. Terminal Shape is Round bar. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

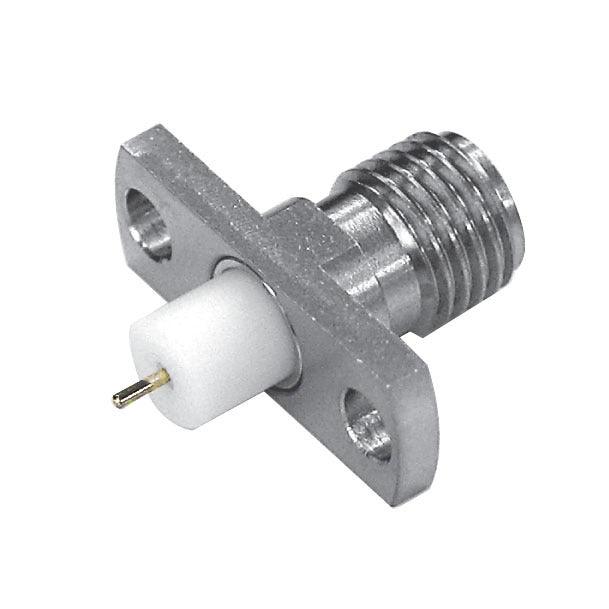

RF Coaxial Connector SMA Receptacle
