• 50Ω
  • Jack(Flange)
  • Made to order product
  • RoHS2
TYCLON

SMA-PJ-0.8A

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

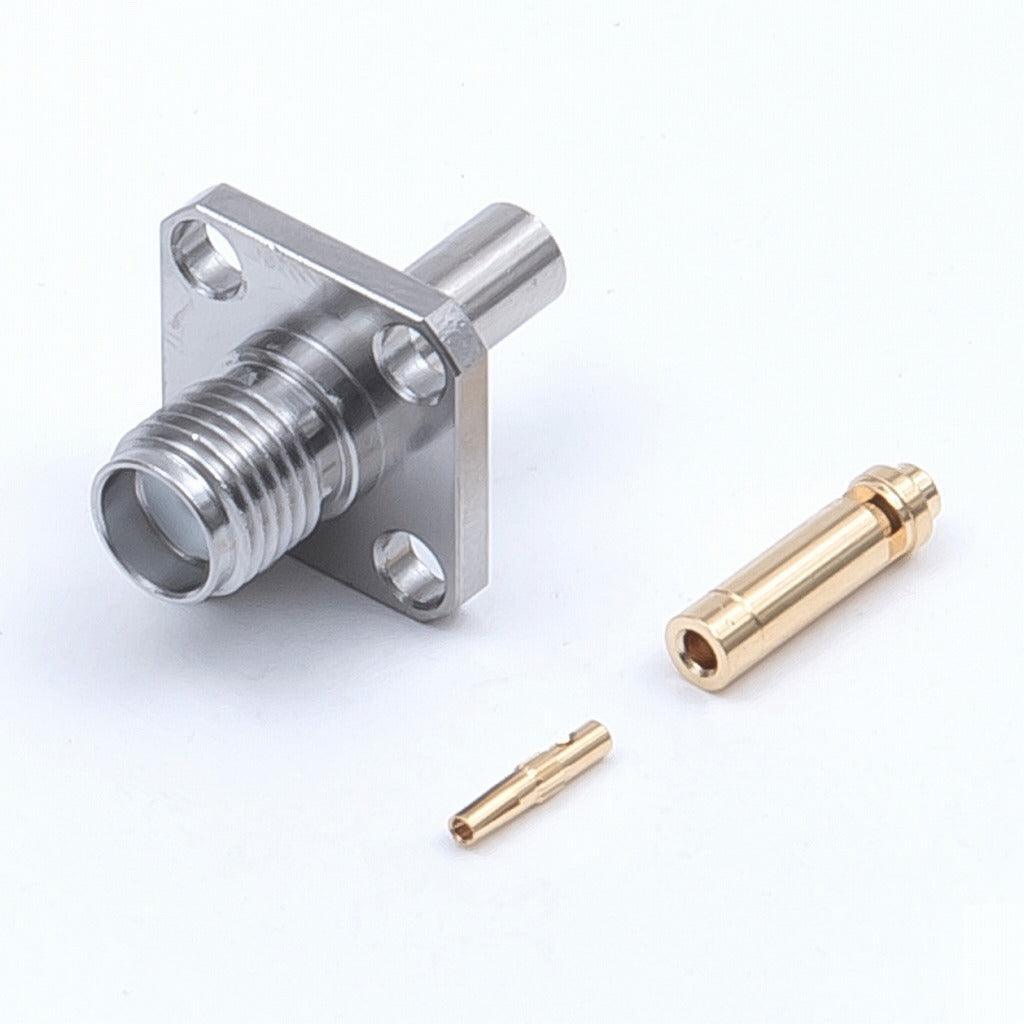

The SMA-PJ-0.8A is an SMA Flange Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits 1×0.26 D=0.8 cables. It features a impedance 50Ω, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at 0.5~6GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Stainless Steel/Passivate Treatment (Soldering Part, Gold Plating)/Soldering + Crimping.A crimping toolTA-16 or TA-17 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    1×0.26 D=0.8
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 750V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at 0.5~6GHz
  • Operating Temperature Range
    -40 to +85°C
  • Crimping Tool
    TA-16, TA-17

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating/Soldering
  • Body
    Stainless Steel/Passivate Treatment (Soldering Part, Gold Plating)/Soldering + Crimping

The SMA-PJ-0.8A is an SMA Flange Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits 1×0.26 D=0.8 cables. It features a impedance 50Ω, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at 0.5~6GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Stainless Steel/Passivate Treatment (Soldering Part, Gold Plating)/Soldering + Crimping.A crimping toolTA-16 or TA-17 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.
