SMA-PJ-405(Au)

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

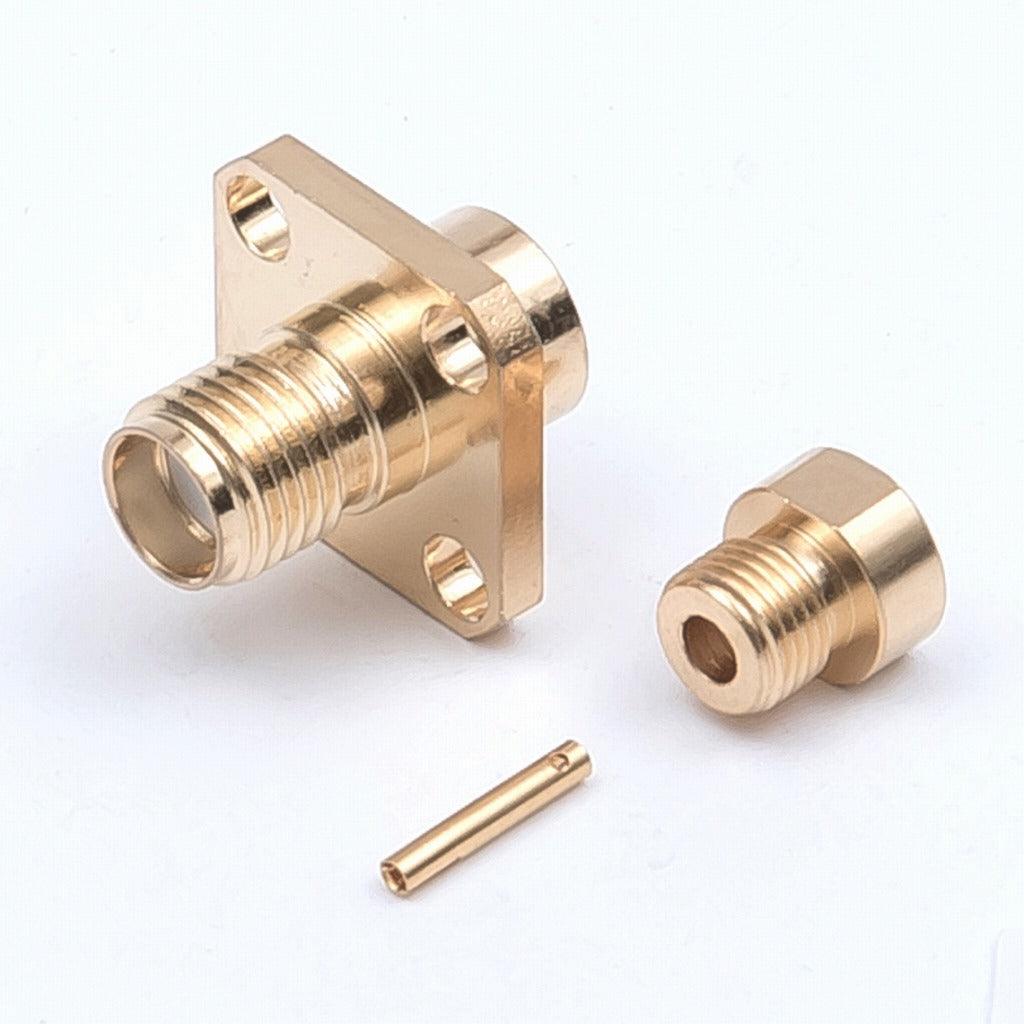

The SMA-PJ-405(Au) is an SMA Flange Jack connector, designed for semi-rigid cables. This connector is suitable for various high-frequency applications.Fits 0.085Semi-Rigid,RG-405/U cables.It features a impedance 50Ω, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.).Withstanding temperatures from -40 to +85°C.The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Stainless Steel/Gold Plating/Soldering + Tightening.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    0.085Semi-Rigid, RG-405/U
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 750V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C
