SMA-PJ-402(Au)

You must register and log in to download

Description

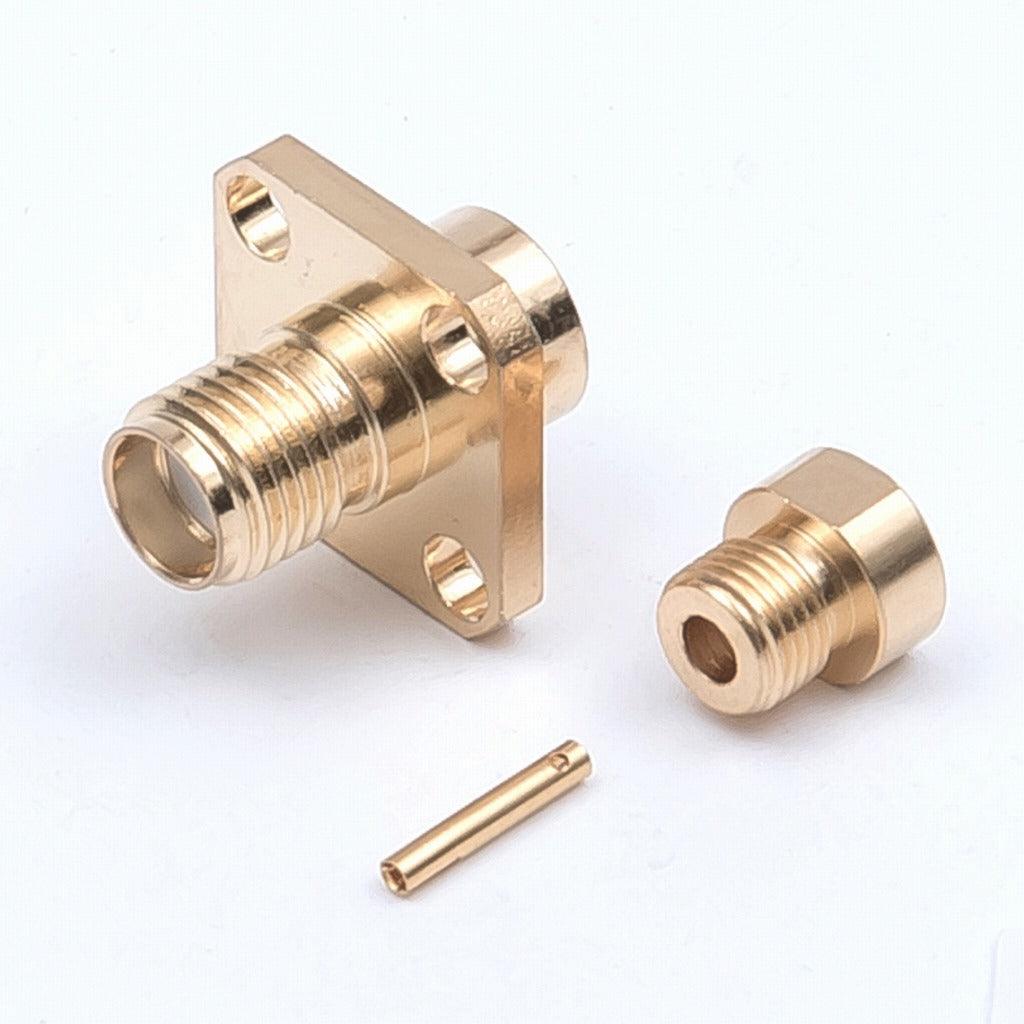

The SMA-PJ-402(Au) is an SMA Flange Jack connector, designed for semi-rigid cables. This connector is suitable for various high-frequency applications.Fits 0.141Semi-Rigid,RG-402/U cables. It features a impedance 50Ω, operates up to 4 GHz, and has a rated voltage of AC 330V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.05 + 0.08F(Max.) at 100MHz~2GHz (F: GHz)). Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Stainless Steel/Gold Plating/Soldering + Tightening. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications

  • Cable type
    0.141Semi-Rigid, RG-402/U
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 330V
  • Operating Frequency Range
    4 GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.05 + 0.08F(Max.) at 100MHz~2GHz (F: GHz)
  • Operating Temperature Range
    -40 to +85°C
