• 50Ω
  • Jack(Bulkhead)
  • Products in stock
  • RoHS2
  • Waterproof

SMA-BJ-0.66A

$3.50
Tax included
You must register and log in to download

Description

The SMA-BJ-0.66A is an SMA Bulkhead Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits 1×32AWG(7/0.08)D=1.32 cables. It features a impedance 50Ω, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~6GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Brass/Nickel Plating/Soldering + Crimping.A crimping toolTA-16 or TA-17 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications

  • Cable type
    1×32AWG(7/0.08)D=1.32
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 750V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~6GHz
  • Operating Temperature Range
    -40 to +85°C
  • Crimping Tool
    TA-16, TA-17
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Beryllium Copper/Gold Plating/Soldering
  • Body
    Brass/Nickel Plating/Soldering + Crimping

The SMA-BJ-0.66A is an SMA Bulkhead Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits 1×32AWG(7/0.08)D=1.32 cables. It features a impedance 50Ω, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~6GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Brass/Nickel Plating/Soldering + Crimping.A crimping toolTA-16 or TA-17 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

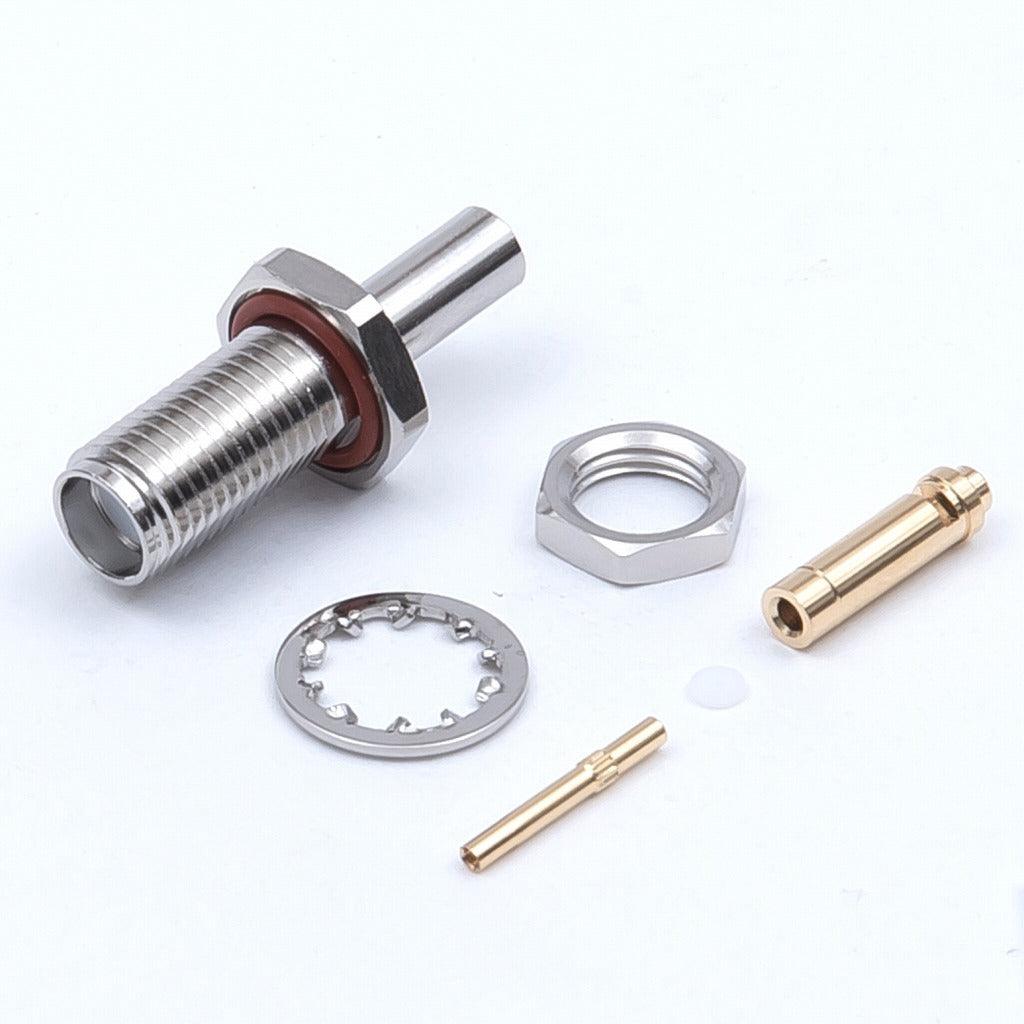

RF Coaxial Connector SMA Jack(Bulkhead)
TYCLON

SMA-BJ-0.66A

$3.50

SMA Jack(Bulkhead)

Cable type

1×32AWG(7/0.08)D=1.32

Connector Gender

Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

N/A

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 750V(1 minute)

Contact Resistance

3 mΩ(Max.)

V.S.W.R

1.2(Max.) at DC~6GHz

Operating Temperature Range

-40 to +85°C

Crimping Tool

TA-16, TA-17

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
