TYCLON

SMA-LP-142X(Pa)

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

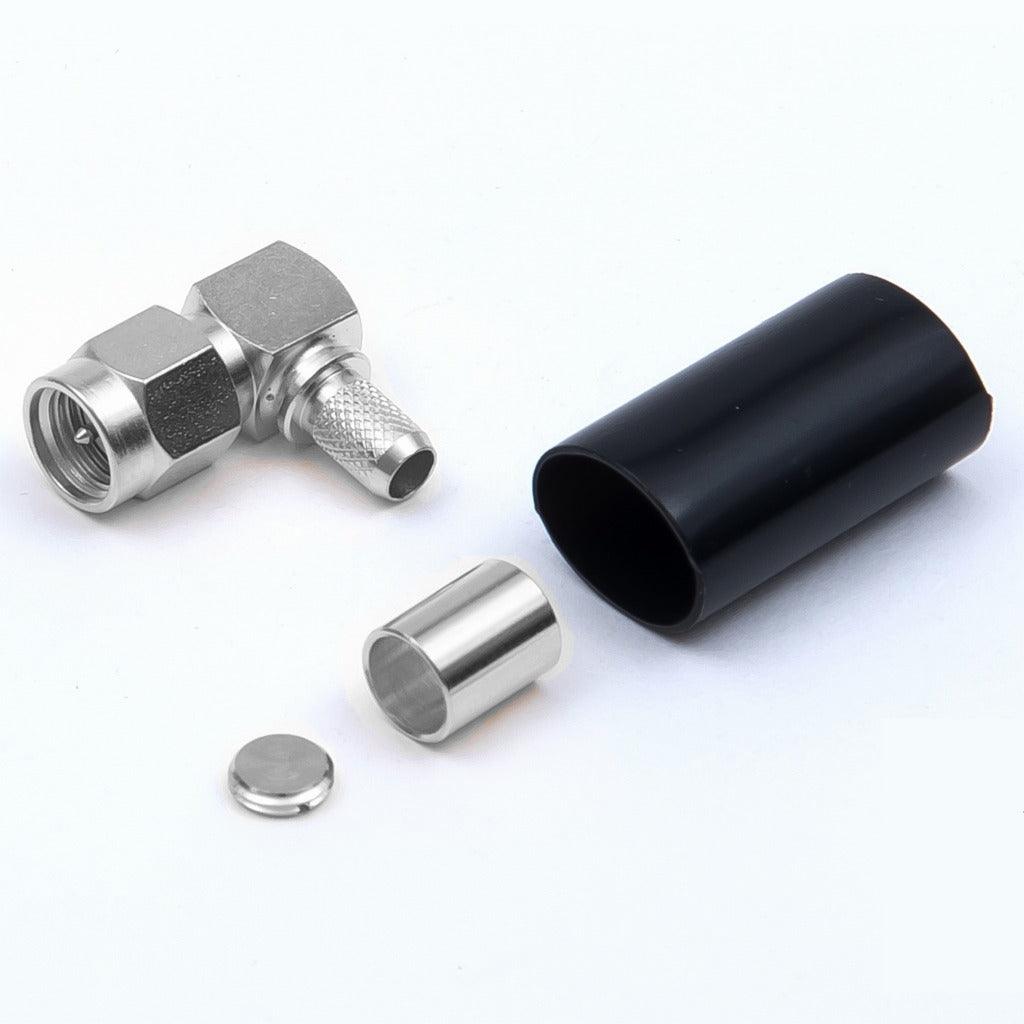

The SMA-LP-142X(Pa) is an SMA Right Angle Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-142B/U,RG-223/U cables. It features a impedance 50Ω, operates up to 12GHz, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (4 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~3 GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Stainless Steel/Nickel Plating/Passivate Treatment/Crimp.A crimping toolTA-34 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    RG-142B/U, RG-223/U
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    12GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    4 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~3 GHz
  • Operating Temperature Range
    -40 to +85°C
  • Crimping Tool
    TA-34
