SMA-LP-405(Au)

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

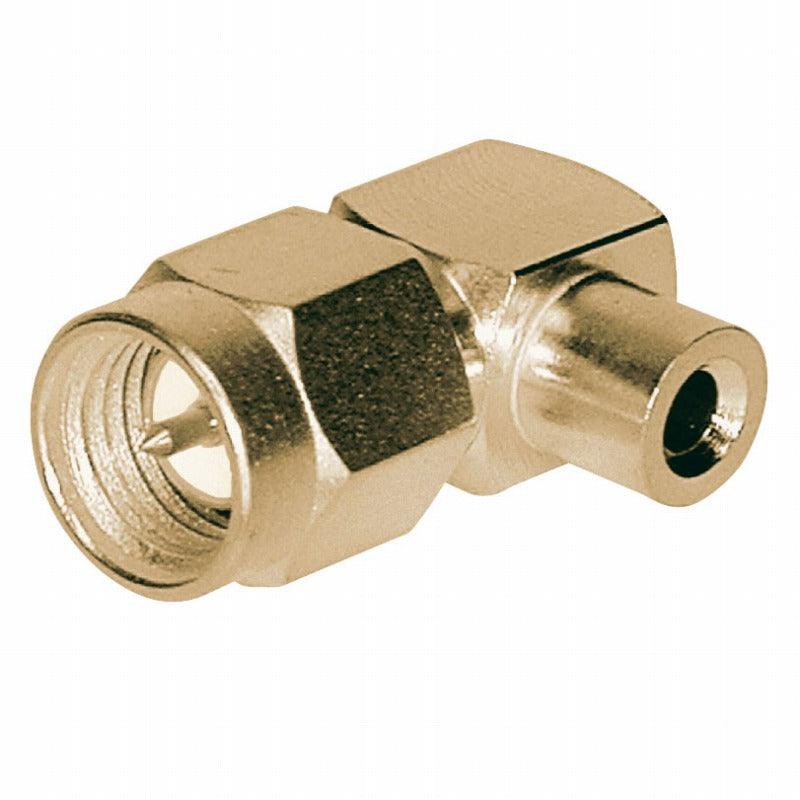

The SMA-LP-405(Au) is an SMA Right Angle Plug connector, designed for semi-rigid cables. This connector is suitable for various high-frequency applications.Fits 0.085Semi-Rigid,RG-405/U cables.It features a impedance 50Ω, operates up to 12.4GHz, and has a rated voltage of AC 250V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.).Withstanding temperatures from -30 to +85°C.The contact is made of Brass/Gold-Plated/Soldered, while the body is Stainless Steel/Gold Plating/Soldering.We recommend using a SMAP positioner for mounting.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    0.085Semi-Rigid, RG-405/U
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 250V
  • Operating Frequency Range
    12.4GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 750V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • Operating Temperature Range
    -30 to +85°C
