SMAP-316X(Pa)
Contact us
View Datasheet
Description
Description

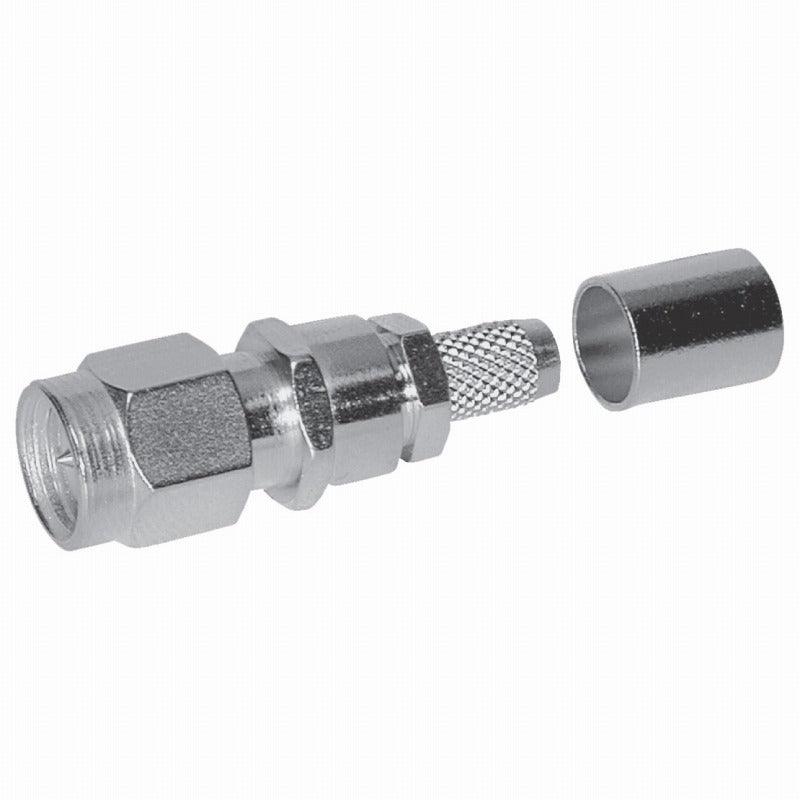

The SMAP-316X(Pa) is an SMA Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-174/U,RG-188A/U,RG-316/U cables. It features a impedance 50Ω, operates up to 12.4GHz, and has a rated voltage of AC 250V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.6(Max.) at DC~8GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Stainless Steel/Passivate Treatment/Crimping + Tightening.A crimping toolTA-16 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.
Specifications
Specifications
-
Cable typeRG-174/U, RG-188A/U, RG-316/U
-
Connector Gender
-
Impedance (Ohms)
-
Rated Voltage AC
-
Operating Frequency Range
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
V.S.W.R
-
Operating Temperature Range
-
Crimping ToolTA-16
Safe & Secure
We ensure secure processing of your payment information and do not retain or have any access to your credit card details.
Material/Plating/Attachment
Material/Plating/Attachment
-
Contact
-
Body
The SMAP-316X(Pa) is an SMA Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-174/U,RG-188A/U,RG-316/U cables. It features a impedance 50Ω, operates up to 12.4GHz, and has a rated voltage of AC 250V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.6(Max.) at DC~8GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Stainless Steel/Passivate Treatment/Crimping + Tightening.A crimping toolTA-16 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.
-
Cable typeRG-174/U, RG-188A/U, RG-316/U
-
Connector Gender
-
Impedance (Ohms)
-
Rated Voltage AC
-
Operating Frequency Range
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
V.S.W.R
-
Operating Temperature Range
-
Crimping ToolTA-16
Safe & Secure
We ensure secure processing of your payment information and do not retain or have any access to your credit card details.
-
Contact
-
Body
