TYCLON

SMAP-58A-K

$3.92
Tax included
You must register and log in to download
2D CAD Download 3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

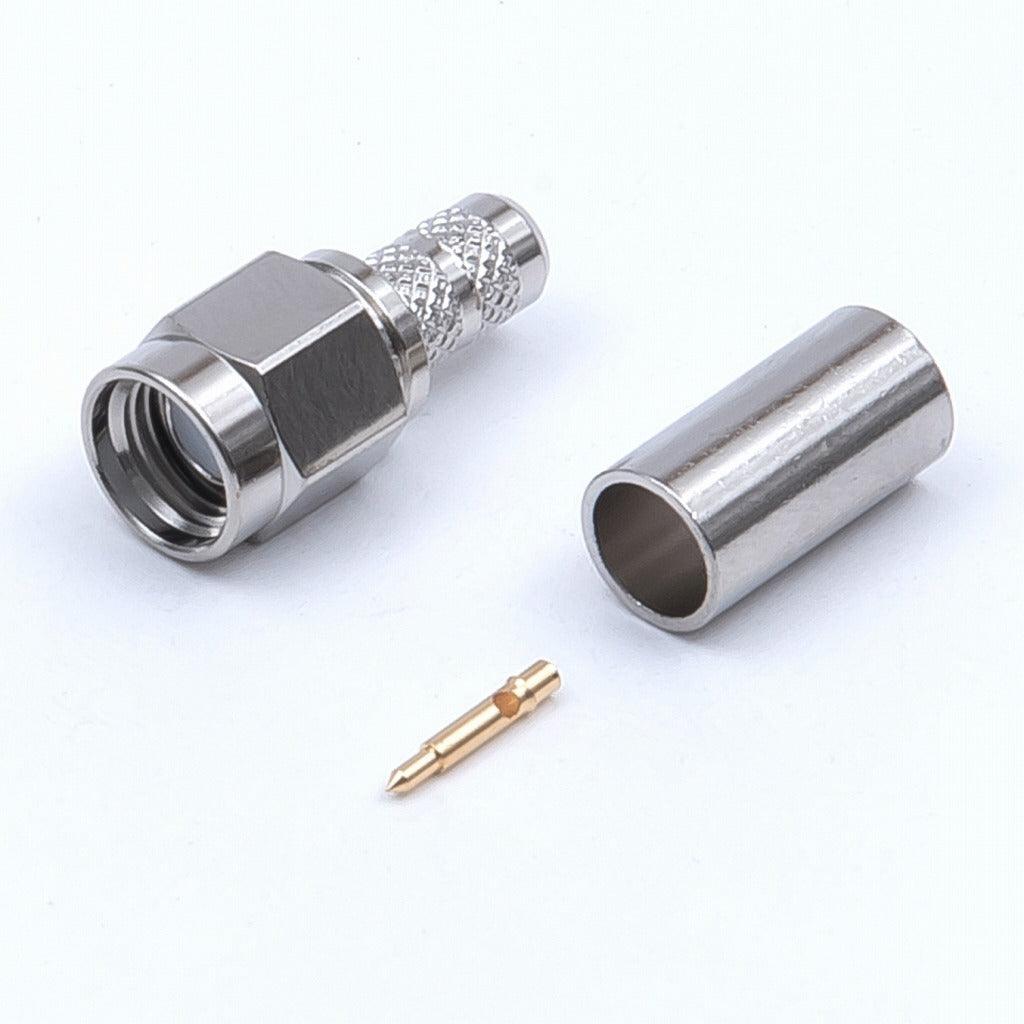

The SMAP-58A-K is an SMA Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-58/U,RG-58A/U cables. It features a impedance 50Ω, operates up to 3GHz, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at 0.5~3 GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Crimp.A crimping toolTA-34 or TA-35 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Cable type
    RG-58/U, RG-58A/U
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    3GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 750V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.3(Max.) at 0.5~3 GHz
  • Operating Temperature Range
    -40 to +85°C
  • Crimping Tool
    TA-34, TA-35

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Gold-Plated/Soldered
  • Body
    Brass/Nickel Plating/Crimp

The SMAP-58A-K is an SMA Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-58/U,RG-58A/U cables. It features a impedance 50Ω, operates up to 3GHz, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at 0.5~3 GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Crimp.A crimping toolTA-34 or TA-35 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector SMA Plug
TYCLON

SMAP-58A-K

$3.92

SMA Plug

Cable type

RG-58/U, RG-58A/U

Connector Gender

Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

3GHz

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 750V(1 minute)

Contact Resistance

3 mΩ(Max.)

V.S.W.R

1.3(Max.) at 0.5~3 GHz

Operating Temperature Range

-40 to +85°C

Crimping Tool

TA-34, TA-35

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
Compare now
