SMAP-0.8A
Online purchases are unavailable during our summer holiday closure. We appreciate your patience until August 18th (Japan Time) and apologize for any inconvenience.
Contact us
View Datasheet
Description
Description

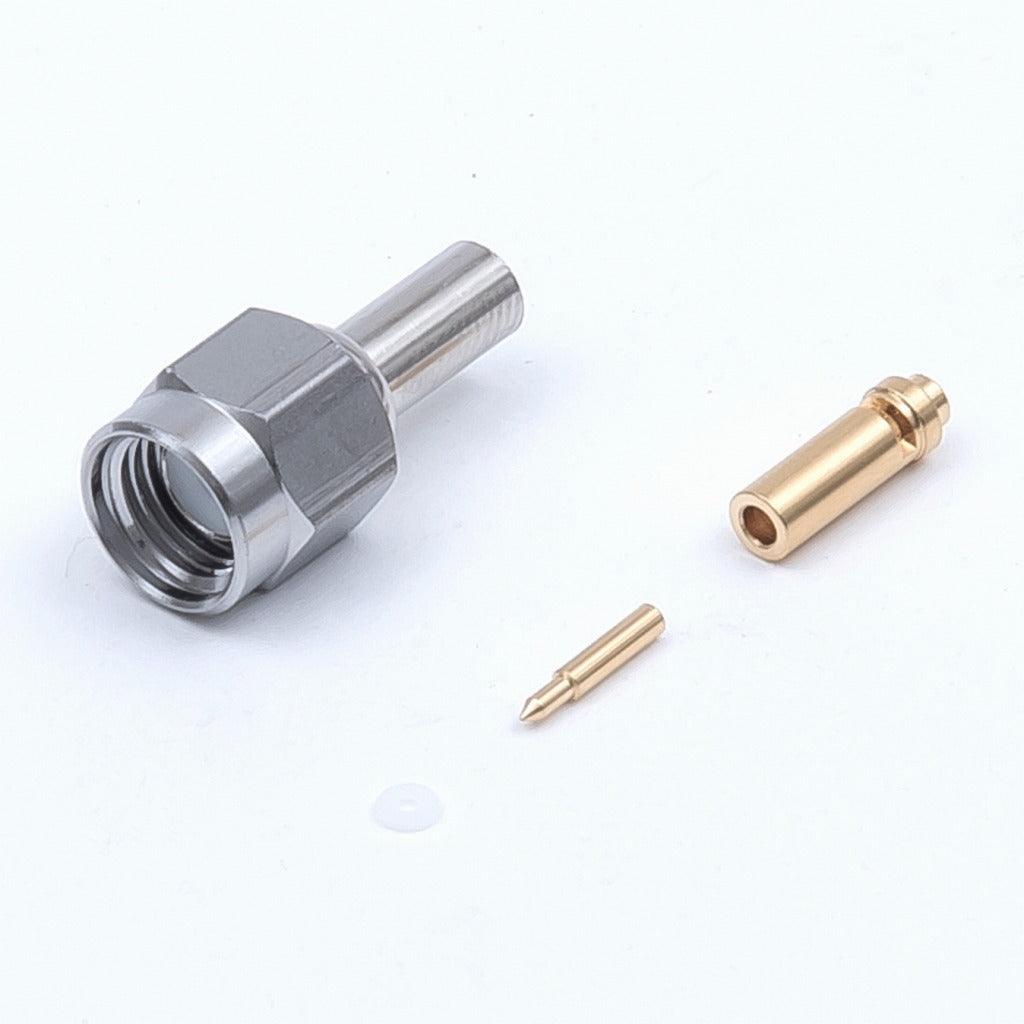

The SMAP-0.8A is an SMA Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits 1×0.26 D=0.8 cables. It features a impedance 50Ω, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at 0.5~6GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Soldering + Crimping.A crimping toolTA-16 or TA-17 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
Specifications
Specifications
-
Cable type1×0.26 D=0.8
-
Connector Gender
-
Impedance (Ohms)
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
V.S.W.R
-
Operating Temperature Range
-
Crimping ToolTA-16, TA-17
Safe & Secure
We ensure secure processing of your payment information and do not retain or have any access to your credit card details.
Material/Plating/Attachment
Material/Plating/Attachment
-
Contact
-
Body
The SMAP-0.8A is an SMA Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits 1×0.26 D=0.8 cables. It features a impedance 50Ω, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at 0.5~6GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Soldering + Crimping.A crimping toolTA-16 or TA-17 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
-
Cable type1×0.26 D=0.8
-
Connector Gender
-
Impedance (Ohms)
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
V.S.W.R
-
Operating Temperature Range
-
Crimping ToolTA-16, TA-17
