SMAP-402S(Au)
Contact us
View Datasheet
Description
Description

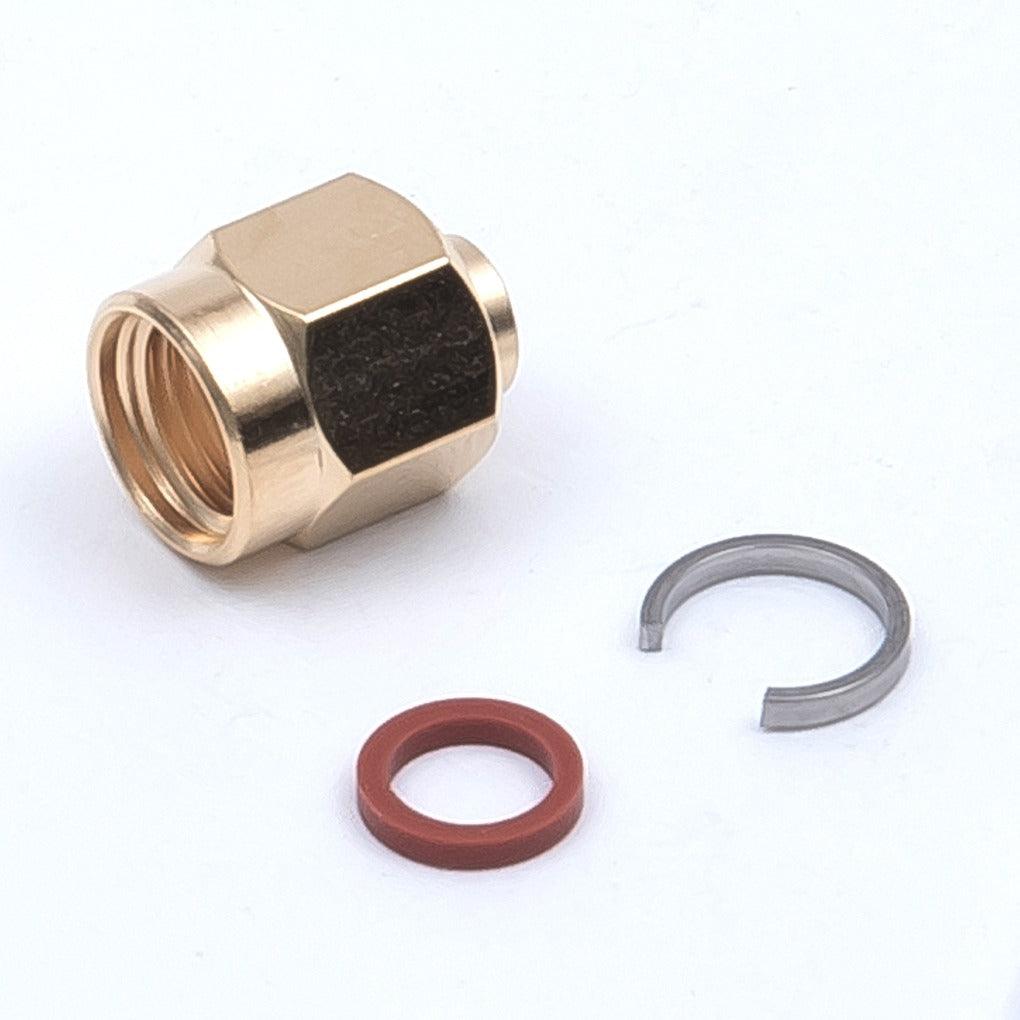

The SMAP-402S(Au) is an SMA Straight Plug connector, designed for semi-rigid cables. This connector is suitable for various high-frequency applications.Fits 0.141Semi-Rigid,RG-402/U cables. It features a impedance 50Ω, operates up to 18GHz, and has a rated voltage of AC 330V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.05+0.01F(Max.) at 100MHz~18GHz (F:GHz)). Withstanding temperatures from -40 to +85°C. While the body is Stainless Steel/Gold Plating/Soldering. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
Specifications
Specifications
-
Cable type0.141Semi-Rigid, RG-402/U
-
Connector Gender
-
Impedance (Ohms)
-
Rated Voltage AC
-
Operating Frequency Range
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
V.S.W.R
-
Operating Temperature Range
Safe & Secure
We ensure secure processing of your payment information and do not retain or have any access to your credit card details.
Material/Plating/Attachment
Material/Plating/Attachment
-
Body
The SMAP-402S(Au) is an SMA Straight Plug connector, designed for semi-rigid cables. This connector is suitable for various high-frequency applications.Fits 0.141Semi-Rigid,RG-402/U cables. It features a impedance 50Ω, operates up to 18GHz, and has a rated voltage of AC 330V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.05+0.01F(Max.) at 100MHz~18GHz (F:GHz)). Withstanding temperatures from -40 to +85°C. While the body is Stainless Steel/Gold Plating/Soldering. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
-
Cable type0.141Semi-Rigid, RG-402/U
-
Connector Gender
-
Impedance (Ohms)
-
Rated Voltage AC
-
Operating Frequency Range
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
V.S.W.R
-
Operating Temperature Range
Safe & Secure
We ensure secure processing of your payment information and do not retain or have any access to your credit card details.
-
Body
