• 0.085Semi-Flex、0.085Semi-Rigid、RG-405/U
  • 50Ω
  • Plug
  • Products in stock
  • RoHS2

SMAP-085S

$4.92
Tax included
You must register and log in to download

Description

The SMAP-085S is an SMA Straight Plug connector, designed for semi-rigid and semi-flexible cables. This coaxial connector is suitable for various high-frequency applications.Fits 0.085Semi-Flex,0.085Semi-Rigid,RG-405/U cables. It features a impedance 50Ω, operates up to 18GHz, and has a rated voltage of AC 335V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at 0.5~8 GHz(semi-flexible cable), 1.2(Max.) at 0.5~12.4 GHz(semi-rigid cable)). Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating (Solder Part: Gold Plating)/Soldering. We recommend using a SMAP positioner for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications

  • Cable type
    0.085Semi-Flex, 0.085Semi-Rigid, RG-405/U
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 335V
  • Operating Frequency Range
    18GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at 0.5~8 GHz(semi-flexible cable),</br> 1.2(Max.) at 0.5~12.4 GHz(semi-rigid cable)
  • Operating Temperature Range
    -40 to +85°C
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Brass/Gold-Plated/Soldered
  • Body
    Brass/Nickel Plating (Solder Part: Gold Plating)/Soldering

The SMAP-085S is an SMA Straight Plug connector, designed for semi-rigid and semi-flexible cables. This coaxial connector is suitable for various high-frequency applications.Fits 0.085Semi-Flex,0.085Semi-Rigid,RG-405/U cables. It features a impedance 50Ω, operates up to 18GHz, and has a rated voltage of AC 335V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at 0.5~8 GHz(semi-flexible cable), 1.2(Max.) at 0.5~12.4 GHz(semi-rigid cable)). Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating (Solder Part: Gold Plating)/Soldering. We recommend using a SMAP positioner for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

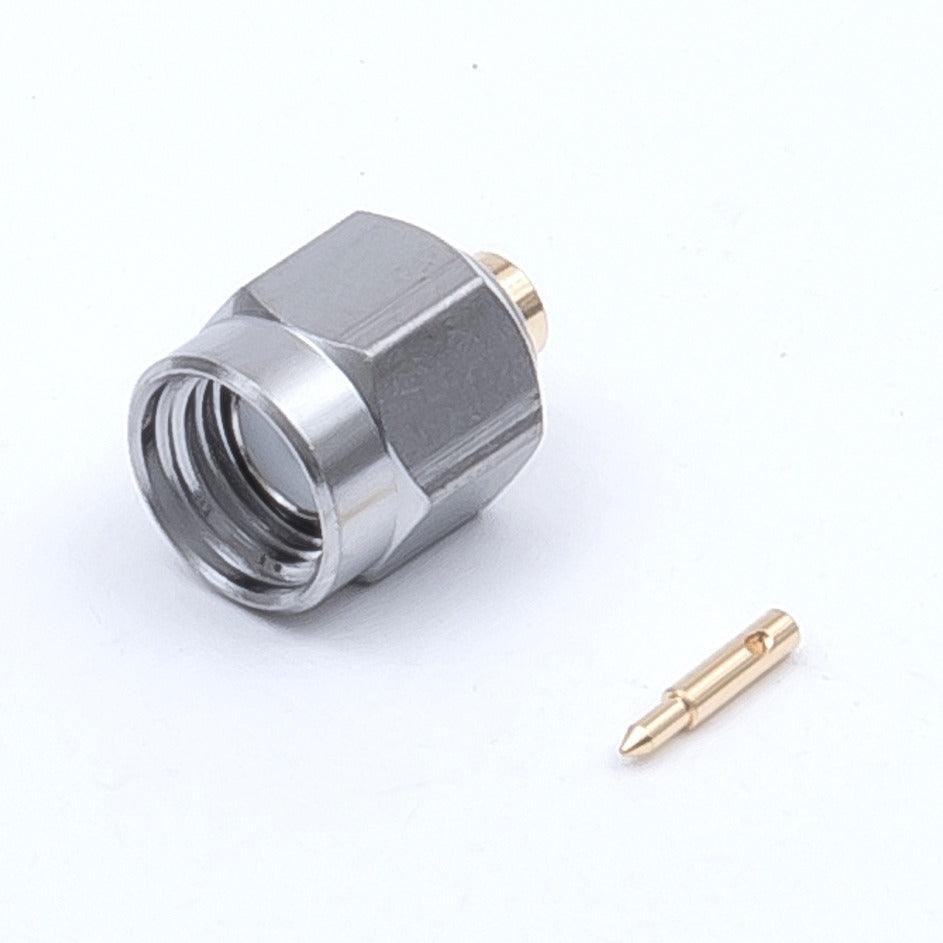

RF Coaxial Connector SMA Plug
TYCLON

SMAP-085S

$4.92

SMA Plug

Cable type

0.085Semi-Flex, 0.085Semi-Rigid, RG-405/U

Connector Gender

Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 335V

Operating Frequency Range

18GHz

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 1000V(1 minute)

Contact Resistance

3 mΩ(Max.)

V.S.W.R

1.2(Max.) at 0.5~8 GHz(semi-flexible cable),</br> 1.2(Max.) at 0.5~12.4 GHz(semi-rigid cable)

Operating Temperature Range

-40 to +85°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
Compare now
