SHV-TA-JPJ

$70.25
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

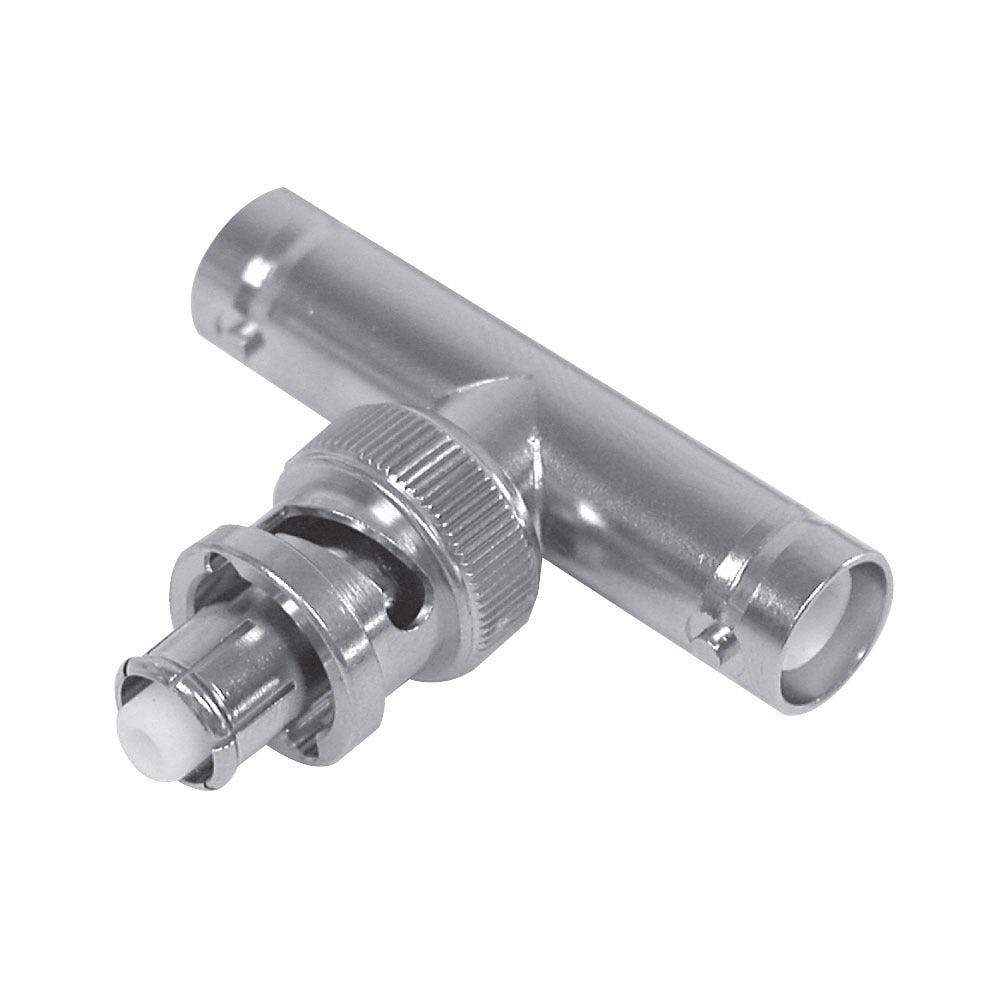

The SHV-TA-JPJ is an SHV adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance Mismatch, and has a rated voltage of AC 3500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). The contact is made of Brass/Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Jack-Plug-Jack
  • Impedance (Ohms)
    Mismatch
  • Rated Voltage AC
    AC 3500V
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 5000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
