• Jack(Flange)
  • Mismatch
  • RoHS2
  • Small lot order available

SHV-PJ-59/U

You must register and log in to download

Description

The SHV-PJ-59/U is an SHV Straight Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-59/U cables. It features a impedance Mismatch, and has a rated voltage of AC 3500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Tightening. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications

  • Cable type
    RG-59/U
  • Connector Gender
    Jack
  • Impedance (Ohms)
    Mismatch
  • Rated Voltage AC
    AC 3500V
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 5000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Brass/Gold-Plated/Soldered
  • Body
    Brass/Nickel Plating/Tightening

The SHV-PJ-59/U is an SHV Straight Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-59/U cables. It features a impedance Mismatch, and has a rated voltage of AC 3500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Tightening. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

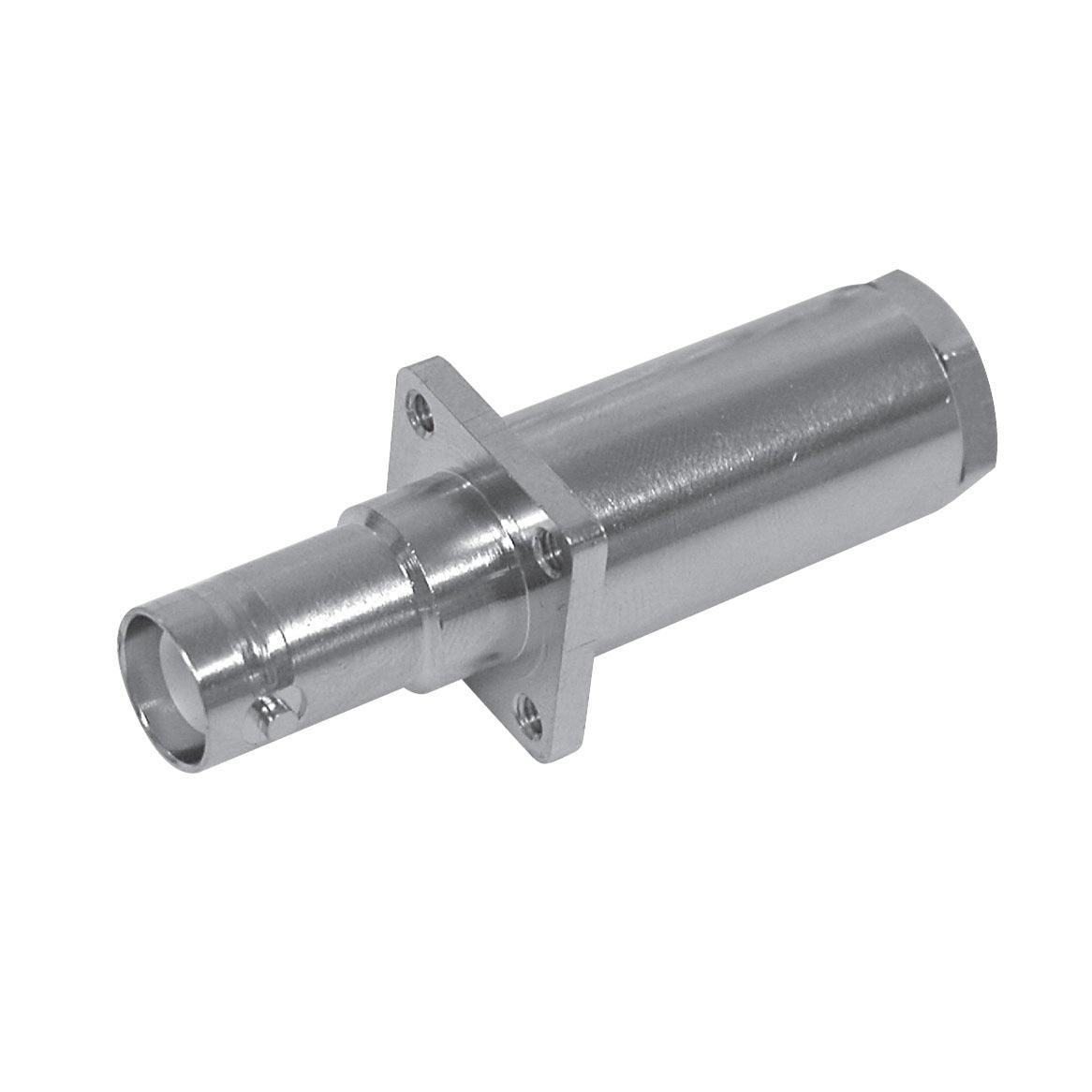

RF Coaxial Connector SHV Jack
TYCLON

SHV-PJ-59/U

$0.00

SHV Jack

Cable type

RG-59/U

Connector Gender

Jack

Impedance (Ohms)

Mismatch

Rated Voltage AC

AC 3500V

Operating Frequency Range

N/A

Insulation Resistance

1000MΩ(Min.) at DC 500V

Withstand Voltage

AC 5000V(1 minute)

Contact Resistance

3 mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
